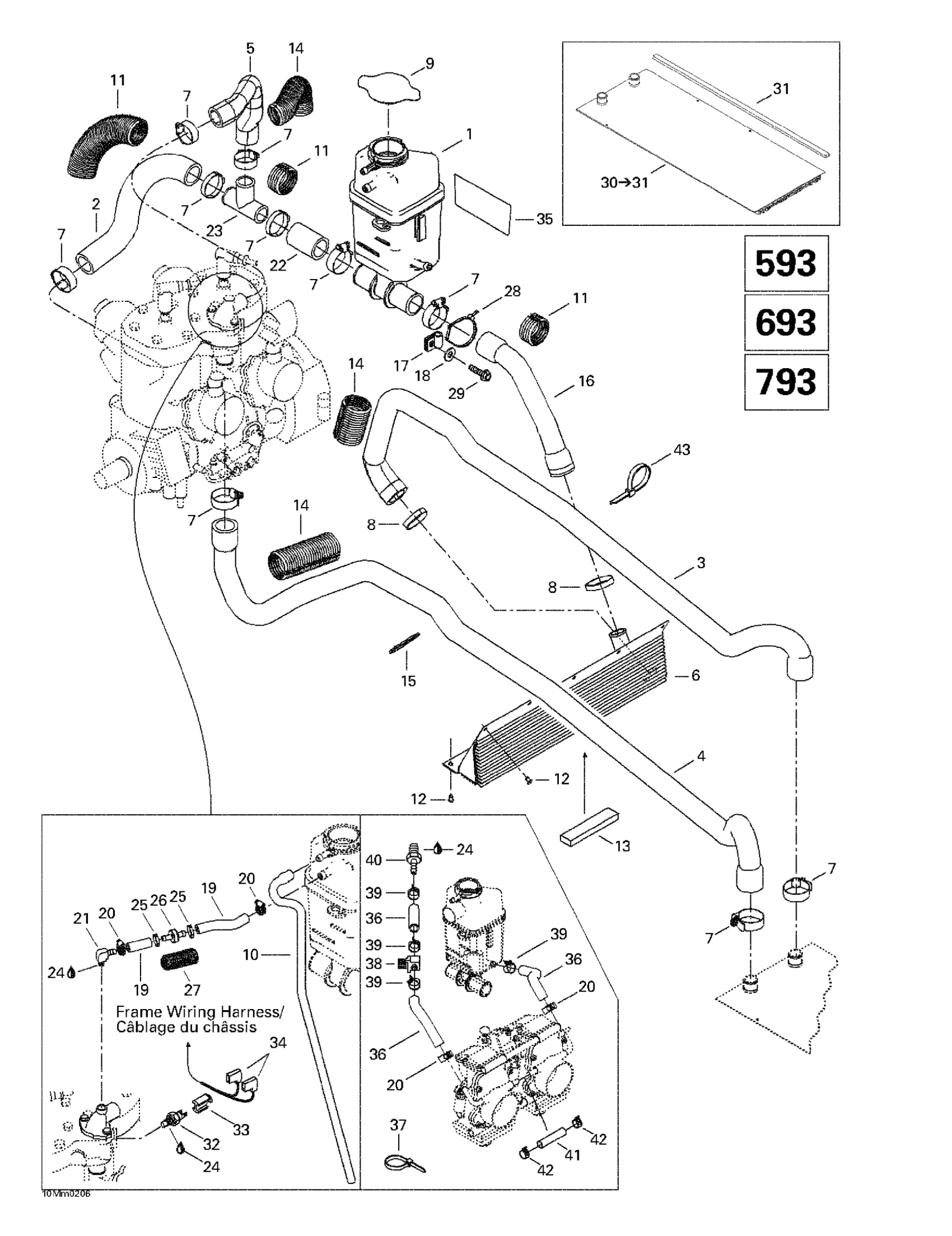

Ski-Doo Legend 500/600/700/800, 2002 Cooling System (593) Diagram

#

Description
Price

1

Tank Coolant

509000167

$86.54

2

ENGINE INLET HOSE - Call your local BRP dealership

509000141

Unavailable

3

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

4

Radiator Outlet Hose

509000145

Unavailable

5

Hose

509000142

Unavailable

6

Front Radiator

509000146

Unavailable

7

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

8

Oetiker Gear Clamp 36.1MM

509000045

$4.07

9

Pressure Cap

509000187

$26.84

10

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

11

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

12

Pop Rivet 3/16"

390402200

$0.30

13

Neoprene Seal (1PAC=3M)

219704364

$26.09

14

Tubing 25 MM 1000MM Long

219704402

$14.57

15

Tie Wrap 368 mm

293750008

$0.97

16

RADIATOR OUTLET HOSE - Call your local BRP dealership

509000144

Unavailable

17

Bracket

415052400

$4.00

18

Washer | DS 650 X

391301600

$0.46

19

Hose 8 mm

509000093

Unavailable

20

Tridon Gear Clamp

293650170

$2.00

21

Elbow Fitting 90°

293700020

Unavailable

22

Hose

509000143

Unavailable

23

T-Fitting

509000219

$14.90

24

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

25

Crimp Clamp

293650053

$2.78

26

Check Valve

509000153

$16.39

27

Tubing 16 Mm 1000Mm Long

219704408

$7.15

28

Tie Rap

509000165

$1.96

29

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$1.88

30

Rear Radiator | Includes 15 - 16. Legend 500.

518322901

Unavailable

31

Radiator Protector

518321655

Unavailable

32

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

33

Connector Plug | Grand Touring 500.

515175297

Unavailable

34

Female Terminal

409010300

$4.00

35

Reflective Sheet | Grand Touring 500.

514053399

Unavailable

36

Hose 8 mm

509000093

Unavailable

37

Tie Wrap 142 mm

293750002

$1.01

38

Valve 5/16” | Grand Touring 500.

512059324

$41.01

39

Spring Clamp

414655700

$0.66

40

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

41

Hose | Grand Touring 500.

404161956

$17.88

42

Clip | Grand Touring 500.

404161957

$15.64

43

Tie Wrap 368 mm

293750008

$0.97
