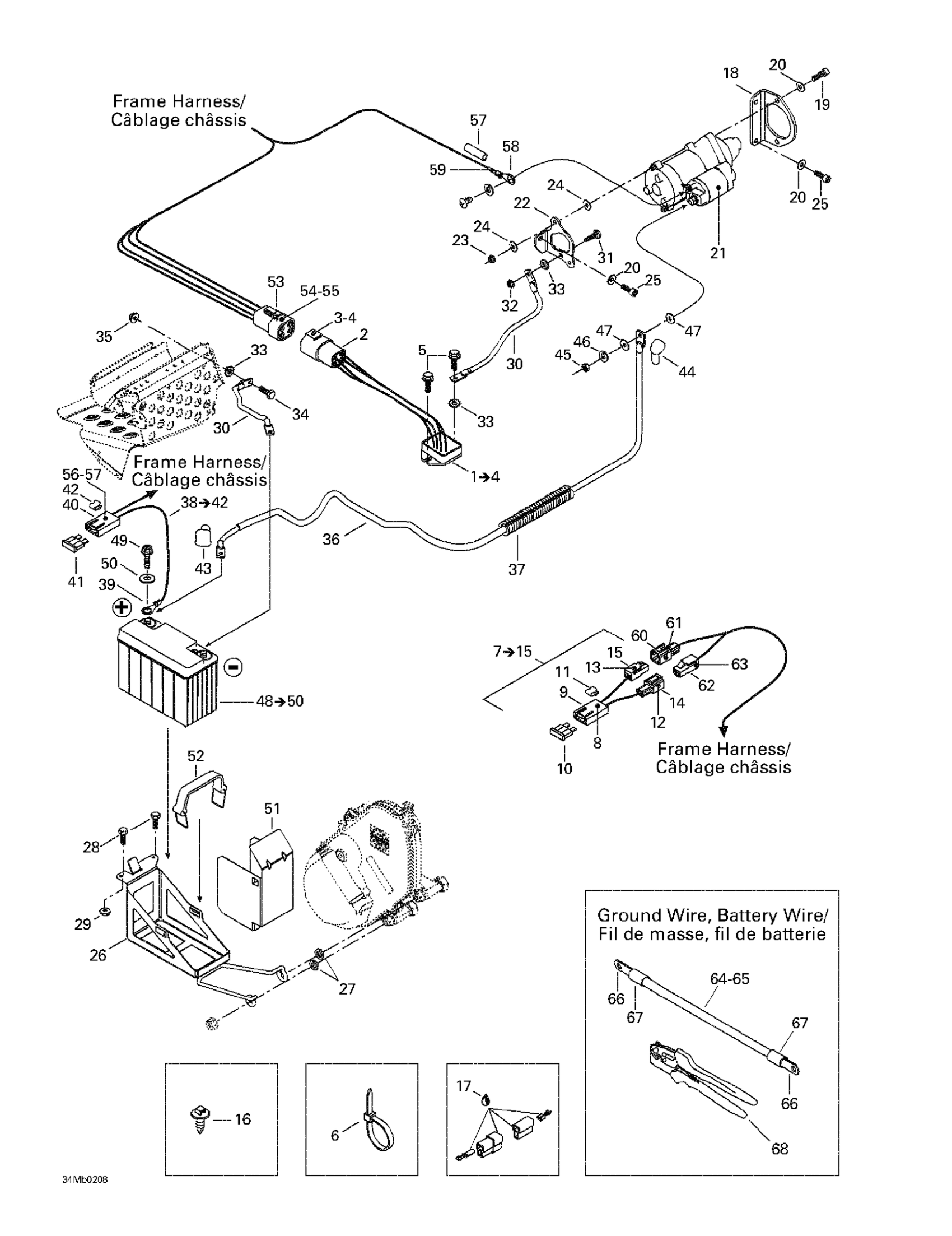

Ski-Doo Legend 380F/500F, 2002 Battery And Starter Diagram

#

Description
Price

1

Voltage Regulator Ass'y

515175939

$194.58

2

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

5

Hex. Flange Screw M6 X 16

210261650

$1.22

6

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie-Rap 173 mm

293750009

$0.85

Tie-Rap 180 mm

414115200

$0.09

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Female Terminal

409011600

$5.11

9

Fuse Holder

409004000

$7.00

10

Fuse, 20 Amperes

409003900

$3.22

11

CLIP - Call your local BRP dealership

409014200

Unavailable

12

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

13

Female Terminal

515175282

$6.43

14

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

15

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

16

Mount Dart

293730040

$0.86

17

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

18

Starter Bracket (PTO) | 380F

515175659

Unavailable

STARTER BRACKET - Call your local BRP dealership | Canada / U.S.A

515175652

Unavailable

19

Socket Head Screw M8 X 25

205082544

$0.92

20

Lock Washer 8 mm

234181401

$0.89

21

STARTER ASS'Y - Call your local BRP dealership | Canada / U.S.A

515175795

Unavailable

22

Starter Bracket (MAG) | 380F

515175660

Unavailable

STARTER SUPPORT MAG SIDE - Call your local BRP dealership | Canada / U.S.A

515175633

Unavailable

23

Elastic Stop Nut M5

232551414

$0.72

24

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

25

Socket Head Screw M8 X 20

205082044

$1.09

26

Battery Support

515175625

Unavailable

27

Washer

503175800

$3.26

28

Hex. Screw M5 X 14

207151444

$0.72

29

Hex. Flange Elastic Nut M5

233251414

$1.66

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Lock Washer Serrated M6

250200041

$0.92

34

Hex. Screw M6 X 16

207161644

$0.61

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Was 409901700 Tubing (9 mm)

219704399

$79.97

38

Battery Fuse Wire | Includes 21 to 22

515175489

$15.03

39

Open Barrel

278000992

$1.79

40

Fuse Holder

409004000

$7.00

41

Fuse, 30 Amperes

410917200

$3.22

42

CLIP - Call your local BRP dealership

409014200

Unavailable

43

Protection Cap

570151000

$18.43

44

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

45

Hex. Nut M8

232081414

$0.60

46

Lock Washer 8 mm

234181401

$0.89

47

Flat Washer 8 mm

234081410

$0.69

48

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$162.45

Battery (18 Amperes) | Legend 500 F.

515175759

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

DEFLECTOR - Call your local BRP dealership

515175643

Unavailable

52

Battery Strap

515176044

$14.27

53

Female Terminal Housing, 4 Circuits

278001473

$25.35

54

Female Lock, 4 Circuits

278001474

$3.02

55

Female Terminal

515175567

$6.03

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Hose

415079200

Unavailable

58

Ring Terminal

515175504

$7.48

59

Tubing Shrink

515175608

Unavailable

60

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

61

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

62

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

63

Female Terminal

515175282

$6.43

64

Ground Cable Battery, no 6, meter)

278001680

Unavailable

Ground Cable Battery, No. 4, Meter

278001681

Unavailable

65

Cable Battery, no 6, meter)

278001690

Unavailable

66

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

67

Was 710000483 Heat Shrink Tubing

219704447

$74.58

68

Crimp Plier

529035730

Unavailable
