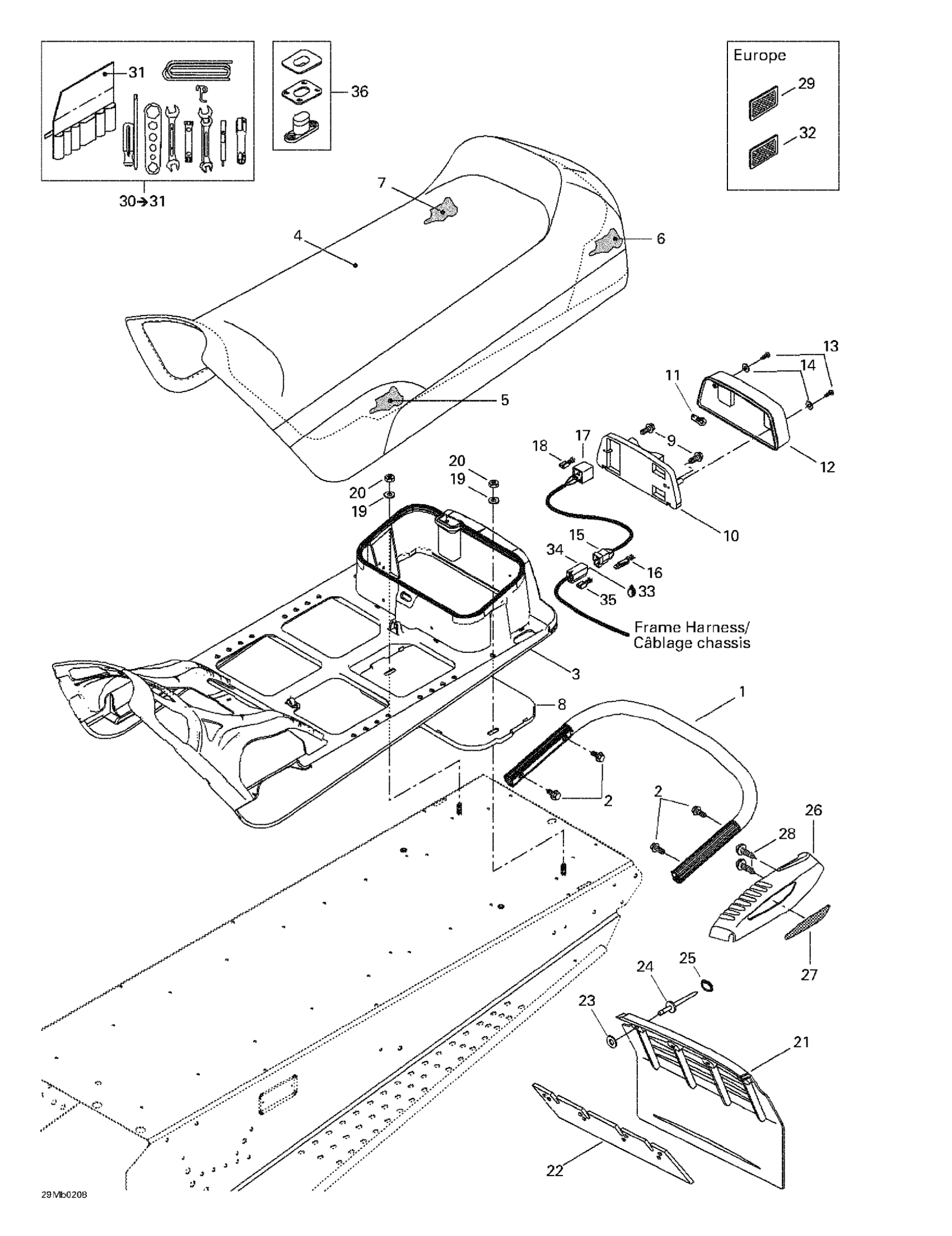

Ski-Doo Legend 380F/500F, 2002 Seat And Accessories Diagram

#

Description
Price

1

REAR BUMPER - Call your local BRP dealership

518322708

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

Unavailable

3

Seat Base

510003983

Unavailable

4

Seat Cover | MX Z 380 F. MX Z 500 F.

510003959

Unavailable

Seat Cover | Legend 380 F. Legend 500 F.

510003963

Unavailable

5

SEAT FOAM - Call your local BRP dealership

510003944

Unavailable

6

Rear Seat Foam

510003945

Unavailable

7

Seat Foam | MX Z 380 F. MX Z 500 F.

510003841

Unavailable

Seat Foam | Legend SE 800 SDI.

510004032

Unavailable

8

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

9

Hex. Screw #10 X 1"

732603006

Unavailable

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

Bulb

520000758

$7.49

Bulb

520000758

$7.49

12

Lens

414513700

Unavailable

13

Phillips Tapping Screw M3.9 X 25

209632540

Unavailable

14

Washer - Call your local BRP dealership

414516400

Unavailable

15

FEMALE HOUSING - Call your local BRP dealership

409204200

$3.82

16

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

17

Female Terminal Housing, 3 Circuits

515175250

Unavailable

18

Female Terminal

561503100

Unavailable

19

Flat Washer 8 mm

234082410

$1.11

20

Hex. Elastic Stop Nut M8

232581414

Unavailable

21

SNOW GUARD - Call your local BRP dealership

520000229

Unavailable

Snow Guard

572103804

Unavailable

22

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

23

Flat Washer

517225900

$0.17

24

Pop Rivet 3/16”

293150087

Unavailable

25

Cap

415073300

Unavailable

26

RH MOULDING KIT - Call your local BRP dealership | Sport / SE

861777700

Unavailable

LH Moulding Kit | Sport / SE

861777800

Unavailable

27

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

28

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

29

Amber, Reflector

520000271

$18.43

30

Tool Kit | Includes 12 to 13

529035596

Unavailable

31

Tool Bag

520000047

Unavailable

32

White, Reflector

415037900

$19.20

33

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

34

Female Housing

409204300

Unavailable

35

Female Terminal

561503100

Unavailable

36

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable
