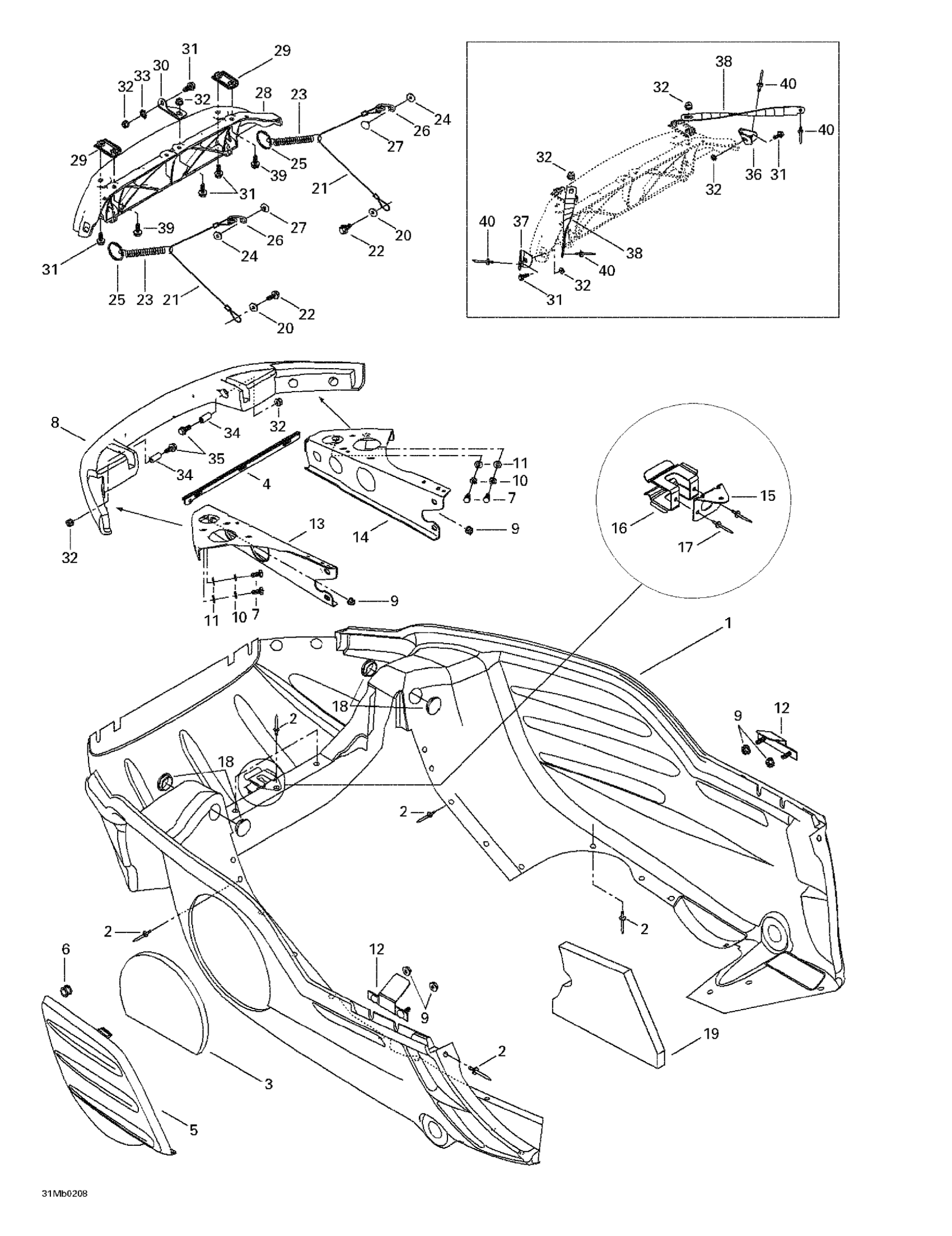

Ski-Doo Legend 380F/500F, 2002 Bottom Pan Diagram
#
1
Deep Black, Bottom Pan
502006633
Unavailable
Bottom Pan | B-190 YELLOW
502006632
Unavailable
Full Moon, Bottom Pan
502006636
Unavailable
Labrador Blue, Bottom Pan
502006635
Unavailable
Pop Rivet 3/16"
390906800
Unavailable
Pop Rivet 3/16"
390906800
Unavailable
Pop Rivet 3/16"
390906800
Unavailable
3
Bottom Pan Door Foam
502006559
Unavailable
4
Bottom Pan Reinforcement
502006647
Unavailable
Bottom Pan Door | B-190 YELLOW
502006511
Unavailable
Full Moon, Bottom Pan Door
502006591
Unavailable
Labrador Blue, Bottom Pan Door
502006641
Unavailable
Bumper
502006535
Unavailable
Labrador Blue, Bumper
502006642
Unavailable
9
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
12
LH Bracket
502006645
Unavailable
14
RH Support
502006596
Unavailable
15
Belt Support
502006599
Unavailable
16
Bracket
517281905
Unavailable
17
Pop Rivet 3/16"
390402400
Unavailable
19
Bottom Foam
502006558
Unavailable
20
Washer | DS 650 X
391301600
Unavailable
21
RETAINER CABLE - Call your local BRP dealership
415093900
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Spring
415043300
Unavailable
24
Washer
517124300
Unavailable
25
RING - Call your local BRP dealership
415058300
Unavailable
26
Bracket
517262800
Unavailable
28
Hinge
517302631
Unavailable
29
HINGE SIDE PLATE - Call your local BRP dealership
517302176
Unavailable
30
Hinge Center Plate
517302045
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
Lock Washer Serrated M6
250200041
Unavailable
34
BUSHING - Call your local BRP dealership
517302179
Unavailable
36
RH Corner Support
517302254
Unavailable
37
LH Corner Support
517302255
Unavailable
38
Hood Clamp
517302256
Unavailable
39
Hex. Flange Screw M6 X 25
207662544
Unavailable
40
Pop Rivet 3/16"
390406500
Unavailable
