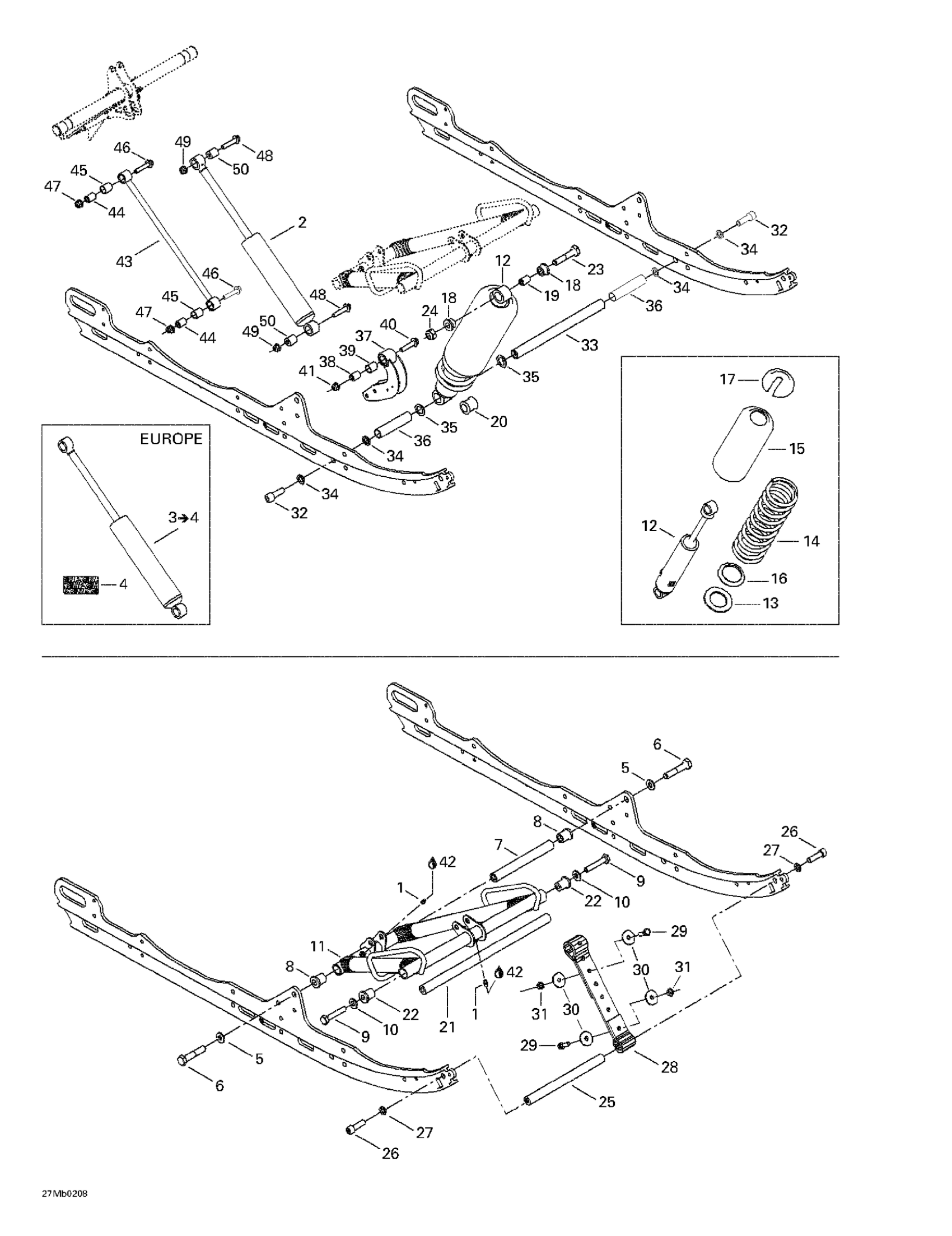

Ski-Doo Legend 380F/500F, 2002 Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

Unavailable

2

Rear Shock

503191582

$157.66

3

Rear Shock Ass'y (Europe) | Includes 3 - 4. MX Z 380 F. MX Z 550 F.

503189811

Unavailable

4

HPG Decal (Europe)

516000182

Unavailable

5

Washer

503189276

Unavailable

6

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

7

SHAFT - Call your local BRP dealership

503189313

Unavailable

8

CUSHION - Call your local BRP dealership

503189323

Unavailable

9

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

10

Washer

732900049

Unavailable

11

Front Arm

503189712

Unavailable

12

Center Shock

503189957

Unavailable

13

WASHER - Call your local BRP dealership

505070401

Unavailable

14

Spring

415070500

Unavailable

SPRING - Call your local BRP dealership

503189659

Unavailable

15

Protector

503193663

Unavailable

16

Spring Guide

503187500

Unavailable

17

Spring Stopper

706200881

$10.30

18

Urethane Bushing

503189117

Unavailable

19

Bushing | Includes 240d to 240d1

503189282

Unavailable

20

Bushing

503189271

Unavailable

21

SHAFT - Call your local BRP dealership

503190387

Unavailable

22

Bushing

503189324

$11.17

23

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.68

25

AXLE - Call your local BRP dealership

503189562

Unavailable

26

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

27

Washer

503189564

Unavailable

28

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

29

Hex. Screw M8 X 25

207182544

Unavailable

30

Flat Washer

224081301

$0.86

31

Hex. Elastic Stop Nut M8

232581414

Unavailable

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

33

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

34

Washer

503189276

Unavailable

35

Washer

503189273

Unavailable

36

SPACER - Call your local BRP dealership

503189274

Unavailable

37

Rocker

503189303

Unavailable

38

Rocker Axle

503189388

Unavailable

39

CUSHION - Call your local BRP dealership

503189626

Unavailable

40

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

41

Elastic Locking Nut M10 X 1.5

233601416

$1.68

42

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

43

Throttle Rod

503189714

Unavailable

44

BUSHING - Call your local BRP dealership

503189133

Unavailable

45

CUSHION - Call your local BRP dealership

503189625

Unavailable

46

Hex. Flange Screw M8 X 40

207684044

Unavailable

47

Hex. Flange Elastic Nut M8

233281414

Unavailable

48

Hex. Flange Screw M8 X 40

207684044

Unavailable

49

Hex. Flange Elastic Nut M8

233281414

Unavailable

50

Bushing

414936000

Unavailable
