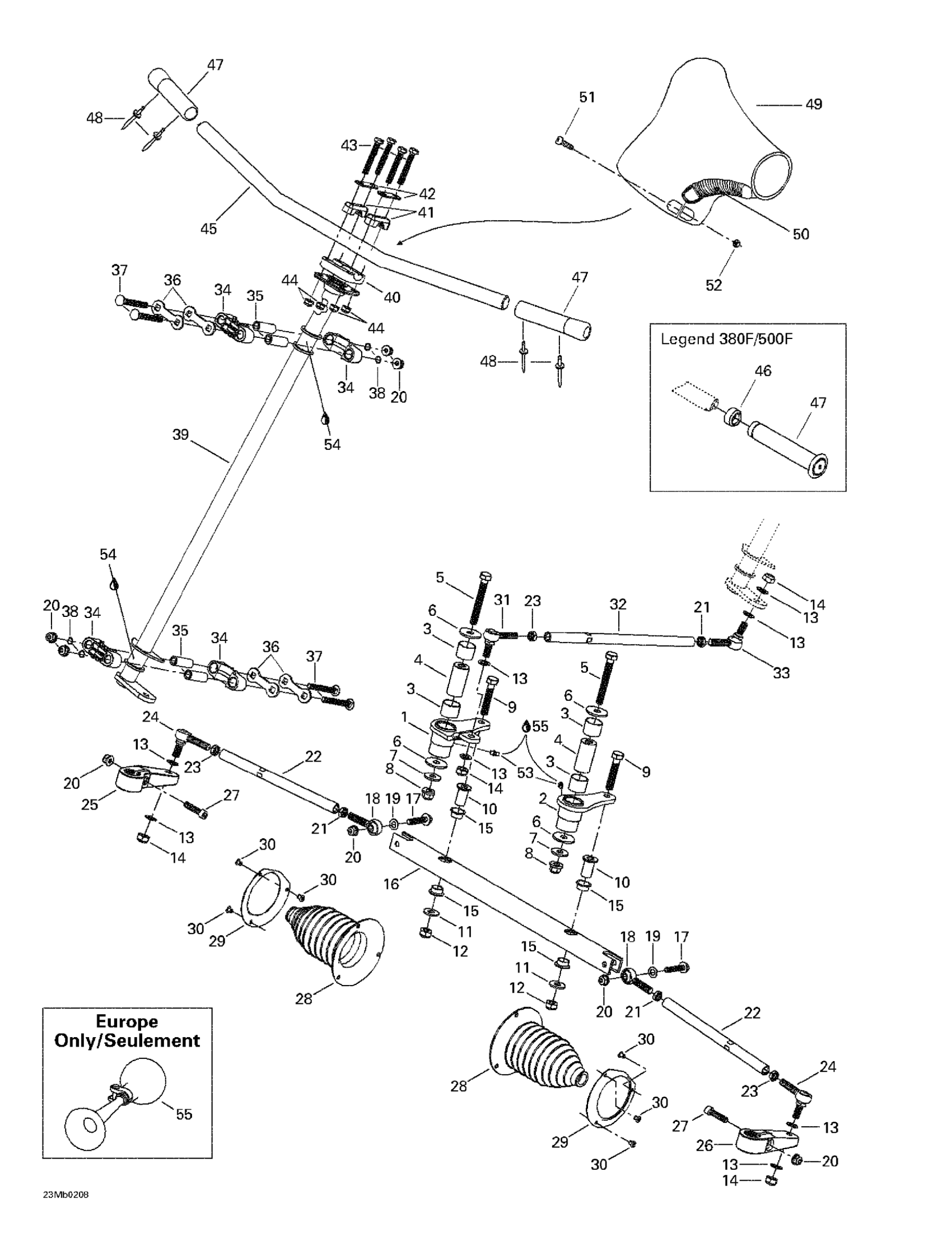

Ski-Doo Legend 380F/500F, 2002 Steering System Diagram

#

Description
Price

1

Handle Ass’Y

512059624

$85.79

Handle Ass'y

512060214

$114.15

2

Kill Switch

515175410

Unavailable

3

Brake Switch

507032318

Unavailable

Microswitch

507032366

$101.46

4

Heating Element

515175682

Unavailable

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

5

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

6

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

7

Tie Wrap 94 mm | 4X4

293750001

$0.96

8

Tie-Rap 180 mm

414115200

$0.10

9

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

10

Male Housing, 3 Circuits

515175494

$14.90

11

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

12

Male Terminal

515175232

$1.45

13

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

14

BRAKE HOUSING - Call your local BRP dealership

515175696

Unavailable

15

Socket Set Screw M8 X 10

414440800

$3.88

16

Light Switch | 500 F.

515175390

Unavailable

17

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

18

Switch Decal

415025500

Unavailable

19

Female Terminal Housing, 13 Circuits

515175350

$12.49

20

Female Terminal

515175231

$4.00

21

Female Terminal

515175282

$6.24

22

Female Housing, 3 Circuits

515175495

$14.90
