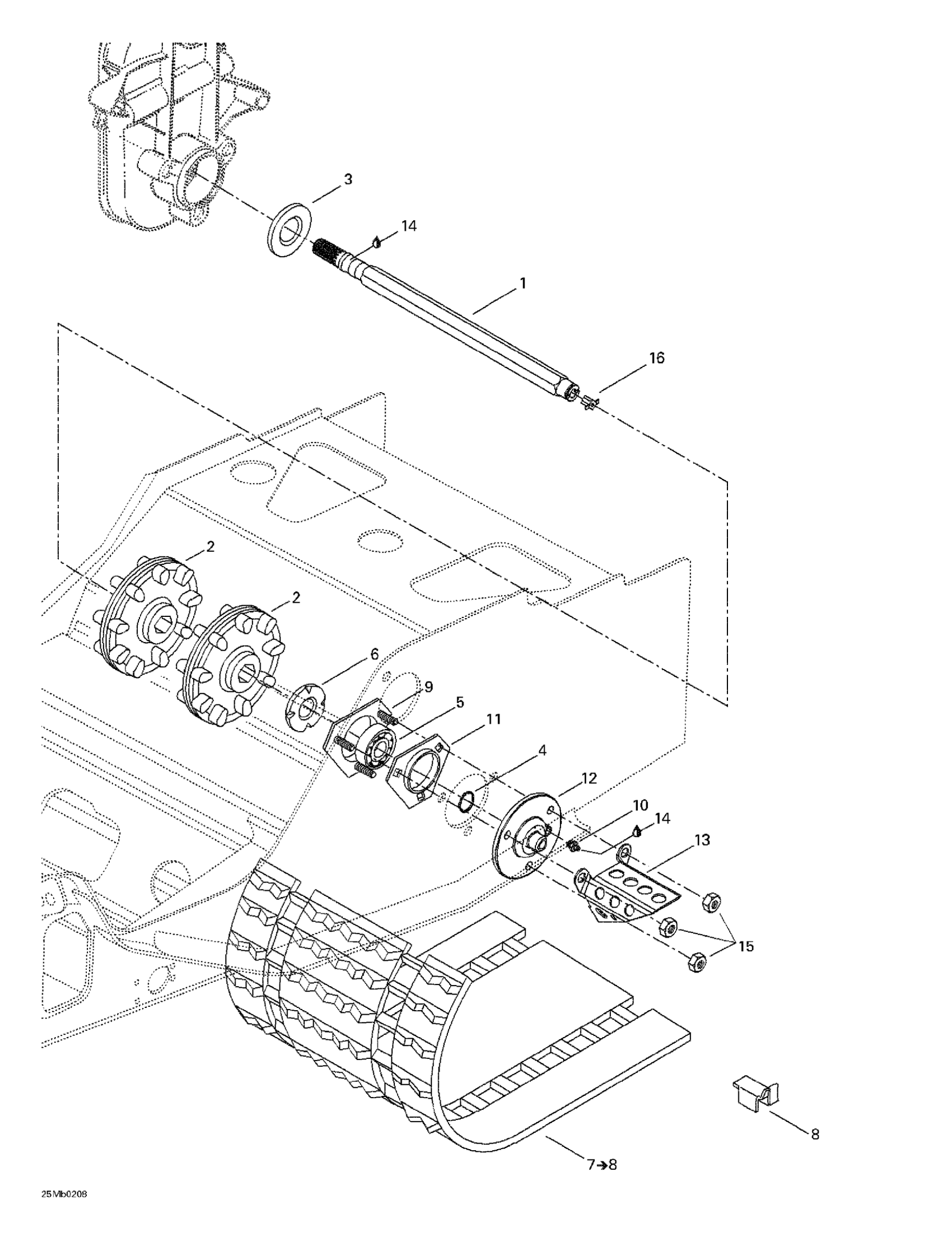

Ski-Doo Legend 380F/500F, 2002 Drive Axle And Track Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

$256.89

2

SPROCKET, 9 TEETH - Call your local BRP dealership

504151781

Unavailable

3

Oil Seal Ass'y

504151918

Unavailable

4

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

5

Ball Bearing

293350060

Unavailable

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

Unavailable

7

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

Unavailable

7

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

Unavailable

8

Track Guide | Track Width 16''

415129528

$3.12

9

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

10

Grease Fitting

408200700

Unavailable

11

FLANGE - Call your local BRP dealership

501025000

Unavailable

12

Flange, Speedo Drive Insert

504151836

Unavailable

13

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

Hex. Elastic Stop Nut M8

232581414

Unavailable

16

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable
