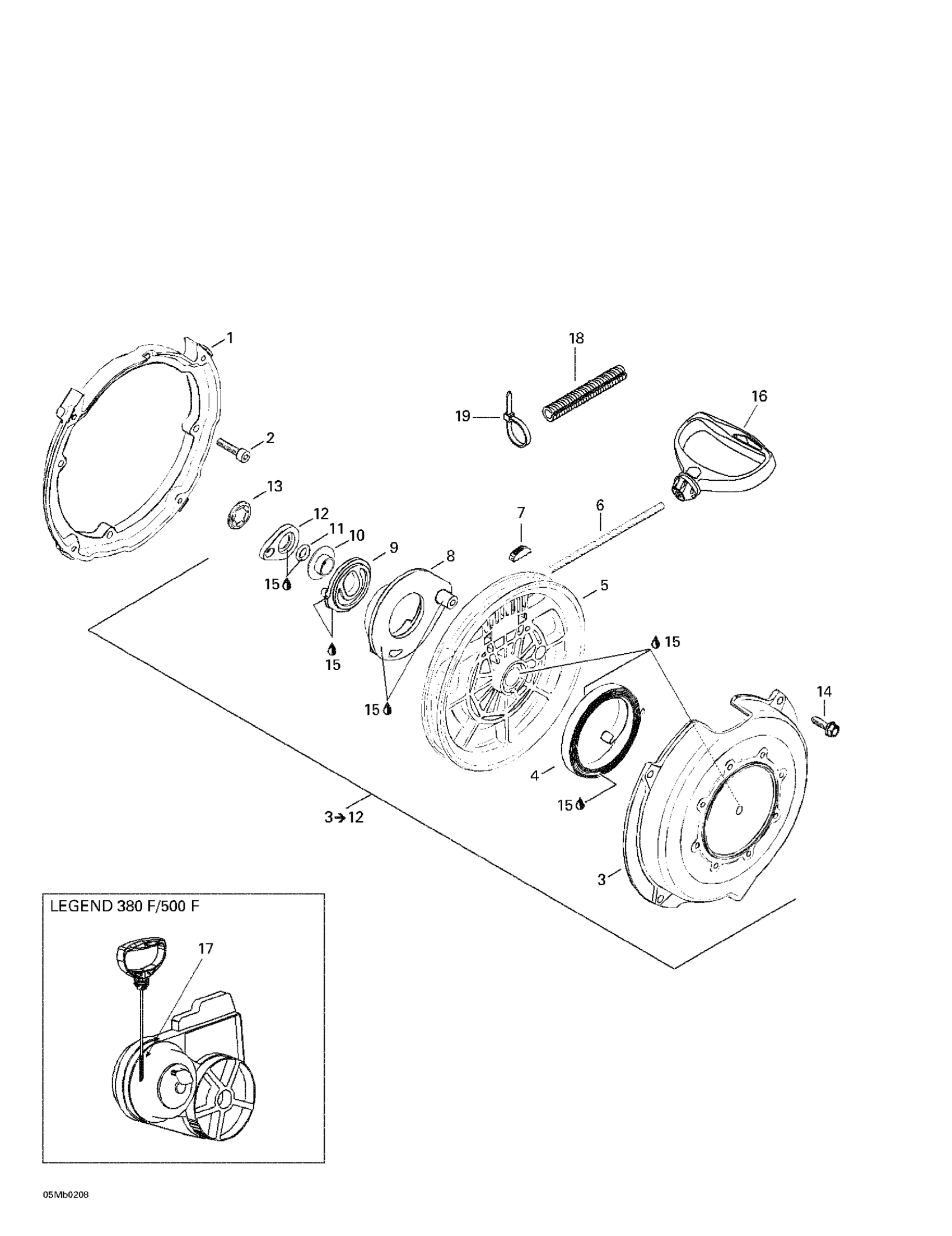

Ski-Doo Legend 380F/500F, 2002 Rewind Starter Diagram
#
Description
Price
1
Flange Connector
420810955
Unavailable
2
Allen Screw M6 x 22 This part replaces 420840401.
420840403
Unavailable
3
Rewind Starter Ass'y | Includes 3 to 13
420888219
Unavailable
Rewind Starter Assy | Includes 3 - 12.
420888212
Unavailable
3
Starter Housing | Skandic 500F. Skandic 500F (SWT).
420811345
Unavailable
Starter Housing
420811340
Unavailable
5
Rope Sheave
420852480
Unavailable
6
Was 412500100 Rope-Starter
219704403
Unavailable
7
Key Clamp
420852070
Unavailable
8
Pawl
420852296
Unavailable
9
PAWL LOCK - Call your local BRP dealership
420852305
Unavailable
10
Stage Sleeve
420847926
Unavailable
11
O-Ring
420250400
Unavailable
12
Lock Ring
420852520
Unavailable
13
Locking Element
420845560
Unavailable
14
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
420941251
Unavailable
15
Molykote PG 54, 10 g
420899763
Unavailable
16
Starter Grip
572084400
Unavailable
17
Heat Shrink Tubing 25 mm
512059668
Unavailable
18
Was 409901800 Tubing (13 mm)
219704400
Unavailable
