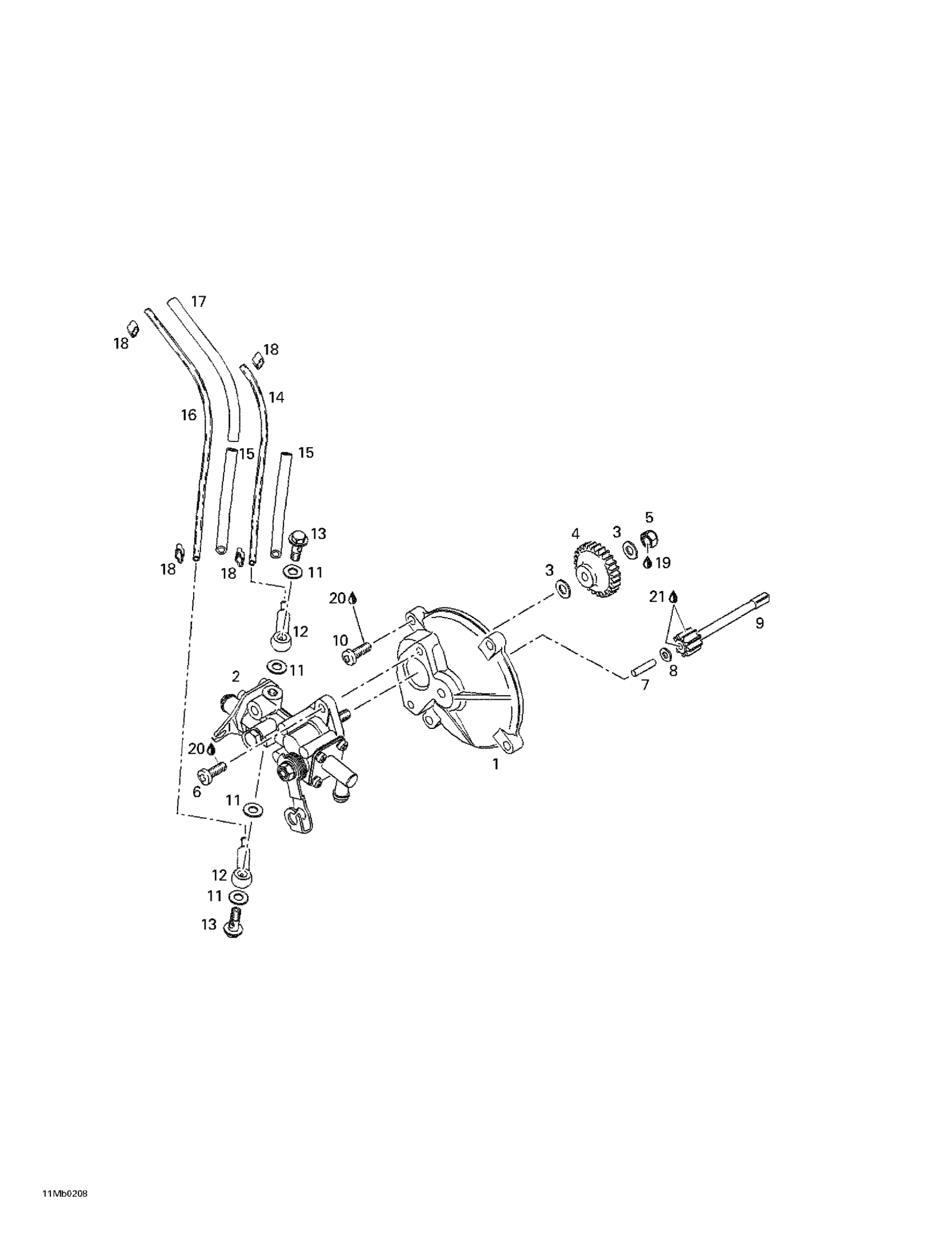

Ski-Doo Legend 380F/500F, 2002 Oil Injection System Diagram
#
Description
Price
1
PUMP MOUNTING FLANGE - Call your local BRP dealership
420910160
Unavailable
2
Oil Pump Ass'y | 380 F.
420887997
Unavailable
OIL PUMP ASS?Y - Call your local BRP dealership
420887996
Unavailable
3
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
4
Oil Pump Gear, 27 Teeth
420935930
Unavailable
5
Elastic Stop Nut M6
232561414
Unavailable
6
Screw
420841971
Unavailable
7
NEEDLE PIN - Call your local BRP dealership
420832260
Unavailable
8
Flat Washer 4
420244072
Unavailable
9
Gear, 9 Teeth
420935970
Unavailable
10
SCREW - Call your local BRP dealership
420841976
Unavailable
11
Sealing Washer
404146600
Unavailable
12
Valve Ass’Y
420956010
Unavailable
13
Banjo Bolt M6 X 16
404146800
Unavailable
14
Oil Hose 1500Mm Long
219704404
Unavailable
15
Isolation Line 90 mm | 380 F.
420960750
Unavailable
16
Oil Hose 1500Mm Long
219704404
Unavailable
17
Hose 6 Mm 15000Mm Long
219704360
Unavailable
18
Clamp
420853840
Unavailable
20
Loctite 271, 10 ml
293800005
Unavailable
