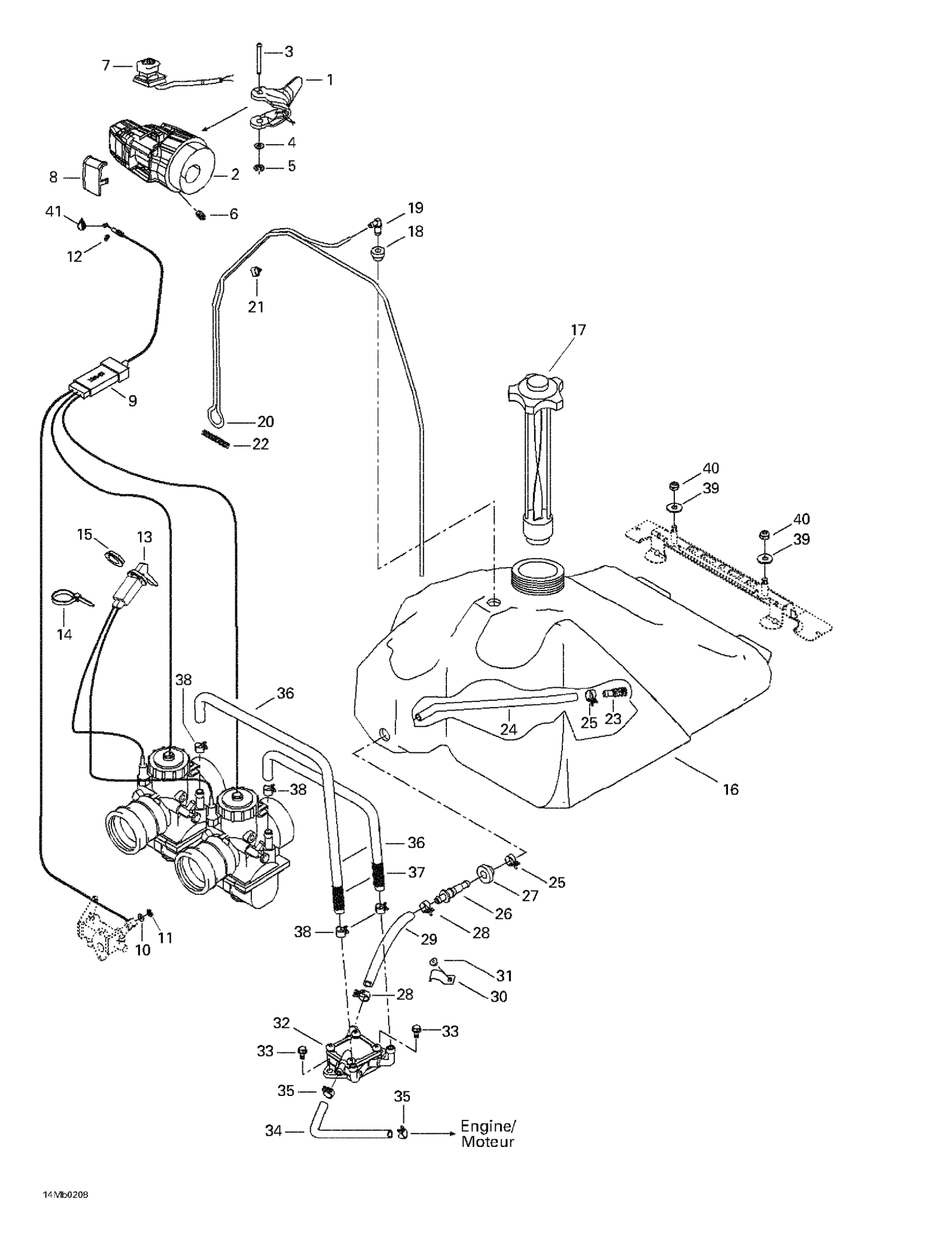

Ski-Doo Legend 380F/500F, 2002 Fuel System Diagram
#
Description
Price
1
Handle Ass’Y
512059624
Unavailable
Handle Ass'y
512060214
Unavailable
2
THROTTLE HOUSING - Call your local BRP dealership
512059489
Unavailable
5
Circlip | Model-RS
414439000
Unavailable
7
Kill Switch
515175410
Unavailable
8
Switch Cover
572100901
Unavailable
9
THROTTLE CABLE - Call your local BRP dealership
512059490
Unavailable
12
Circlip
414274500
Unavailable
13
CHOKE CABLE - Call your local BRP dealership
512059441
Unavailable
14
Tie-Rap 173 mm
293750009
Unavailable
15
PLASTIC NUT - Call your local BRP dealership
512059094
Unavailable
16
Fuel Tank
513032987
Unavailable
20
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
21
TUBE CLAMP - Call your local BRP dealership
513032923
Unavailable
22
SPRING - Call your local BRP dealership
414818200
Unavailable
25
Norma Spring Clamp
513033010
Unavailable
26
Male Connector
414872700
Unavailable
27
Grommet | Europe
707800347
Unavailable
28
UNIVERSAL SPRING CLAMP - Call your local BRP dealership
513032979
Unavailable
31
Pop Rivet 3/16"
390406500
Unavailable
32
Fuel Pump
403901813
Unavailable
34
Hose
219704549
Unavailable
36
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership
219704422
Unavailable
37
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
38
Universal Spring Clamp
513033029
Unavailable
40
Hex. Elastic Stop Nut M8
232581414
Unavailable
41
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
