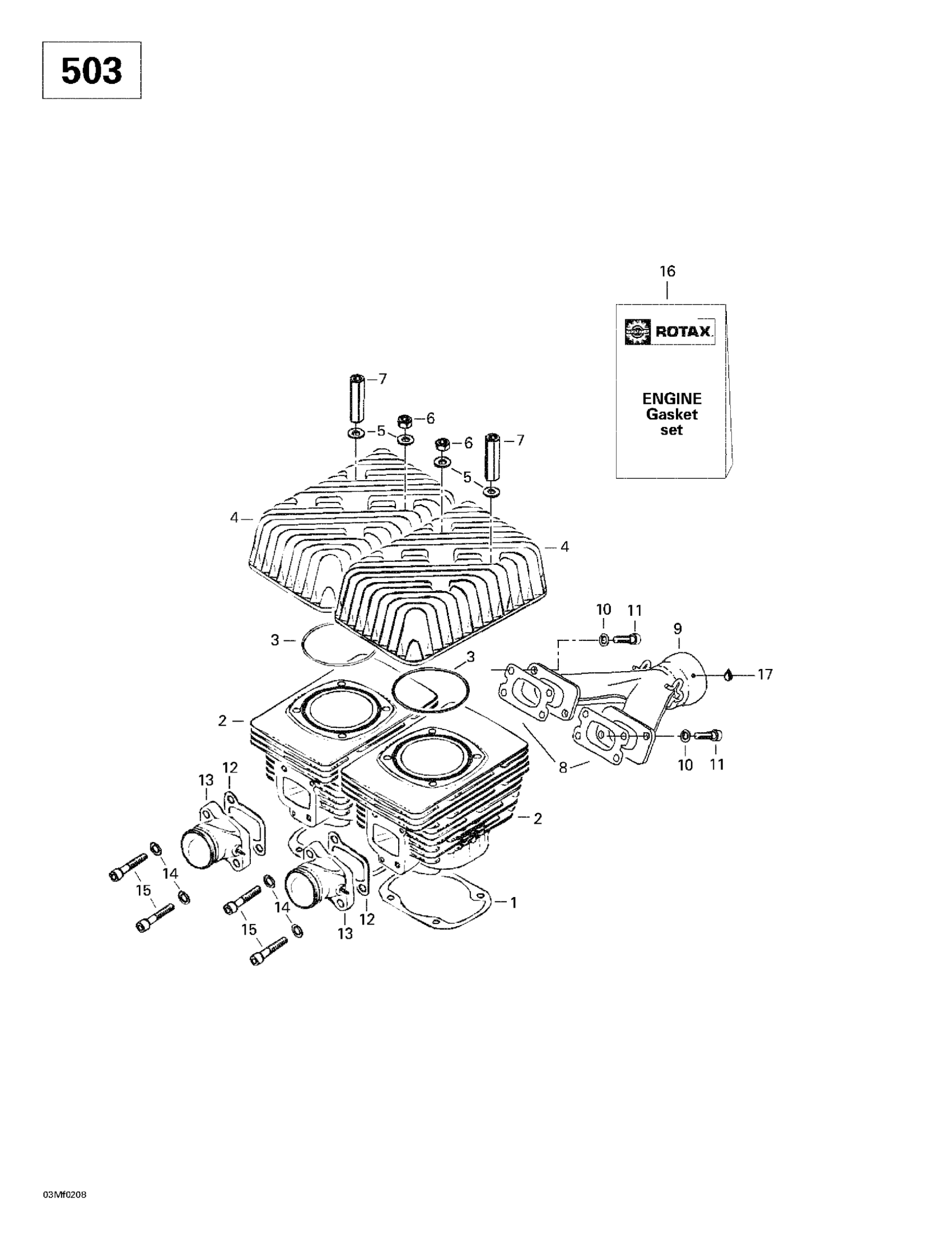

Ski-Doo Legend 380F/500F, 2002 Cylinder, Exhaust Manifold (503) Diagram
#
Description
Price
1
Gasket 0.4 mm
420831858
Unavailable
2
REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.
421000500
Unavailable
2
REBUILD-CYLINDER 503CC - Call your local BRP dealership This part replaces 420923417.
421000500
Unavailable
3
O-Ring This part replaces 420850540.
293300026
Unavailable
4
CYLINDER HEAD - Call your local BRP dealership
420923590
Unavailable
5
Flat Washer 8.4 mm
420250315
Unavailable
6
Hex. Nut M8
232081414
Unavailable
7
Distance Nut M8 X 47
420842204
Unavailable
8
Gasket 1.0 mm
420831849
Unavailable
9
Exhaust Manifold
420673060
Unavailable
10
Lock Washer 8 mm
234181401
Unavailable
11
Socket Head Screw M8 X 30
205083044
Unavailable
12
INTAKE GASKET 1.0 MM - Call your local BRP dealership
420831867
Unavailable
13
INTAKE SOCKET ASS?Y - Call your local BRP dealership
420867408
Unavailable
14
Washer-Lock Din.128
420945832
Unavailable
15
Allen Screw M8 X 40
420840682
Unavailable
16
ENGINE GASKET SET - Call your local BRP dealership
420994238
Unavailable
17
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
