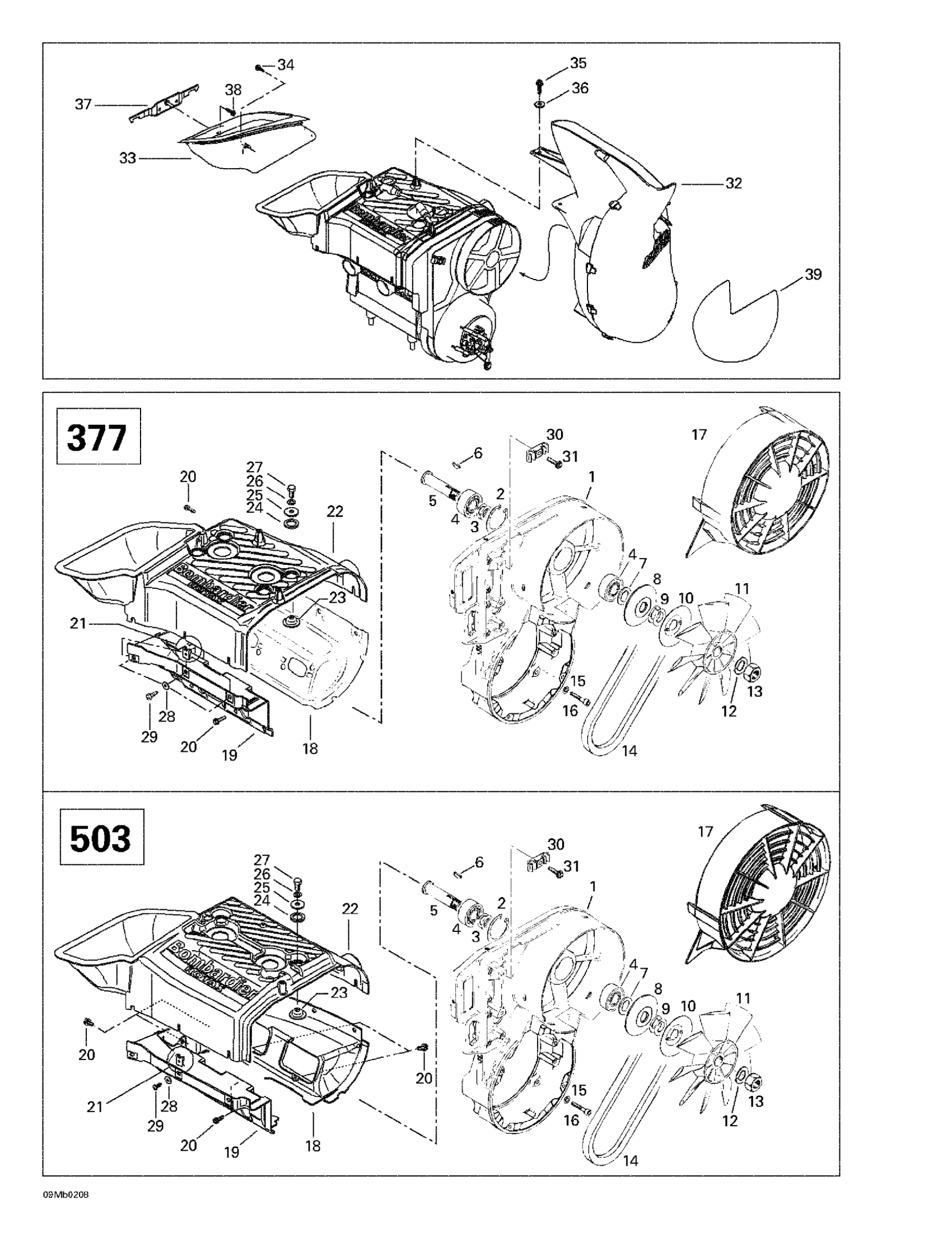

Ski-Doo Legend 380F/500F, 2002 Cooling System And Fan Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

Unavailable

2

Lock Ring

420945880

Unavailable

3

Shim

420244585

Unavailable

4

Ball Bearing

420832161

Unavailable

5

Fan Axle This part replaces 420937940.

420937941

Unavailable

6

Woodruff Key

420246015

Unavailable

7

Spacer Bushing

420827650

Unavailable

8

Flange

420980496

Unavailable

9

Shim 0.5 mm

420827080

Unavailable

Shim 0.2 mm

420827082

Unavailable

10

Protection Washer

420980523

Unavailable

11

FAN - Call your local BRP dealership

420866292

Unavailable

12

Lock Washer

420945756

Unavailable

13

Nut M16 This part replaces 420942285.

420942289

Unavailable

14

V-Belt

414630800

$37.66

V-Belt

414630800

$37.66

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 X 30

205063044

Unavailable

17

FAN COVER - Call your local BRP dealership

420975695

$26.89

18

CYLINDER COWL - Call your local BRP dealership | 380 F.

420810764

Unavailable

Lower Cowling | 550 F.

420811392

Unavailable

19

Cylinder Cowl (Intake Side) | 380 F.

420811805

Unavailable

Cylinder Cowl, Intake Side | 500 F.

420811825

Unavailable

20

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

21

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

22

CYLINDER COWL - Call your local BRP dealership | 380 F.

420811800

Unavailable

CYLINDER COWL - Call your local BRP dealership | 550 F.

420811820

Unavailable

23

Cup Washer

420827817

Unavailable

24

Rubber Washer

420960865

Unavailable

25

Washer This part replaces 420227935.

420227936

Unavailable

26

Washer-Lock Din.128

420945832

Unavailable

27

Hex. Screw M8 x 16

207181644

$0.87

28

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

29

Tapping Screw M4.8 X 16

417300006

Unavailable

30

CLAMP - Call your local BRP dealership

420860945

Unavailable

31

Hex. Tapping Screw M5 X 20

420841555

$1.68

32

Inlet Duct

509000117

Unavailable

33

Outlet Duct

509000118

Unavailable

34

Hex. Tapping Screw #8 X 5/8"

250000068

Unavailable

35

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

36

Washer | DS 650 X

391301600

Unavailable

37

Support

509000164

Unavailable

38

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

39

Reflective Sheet

514053363

Unavailable
