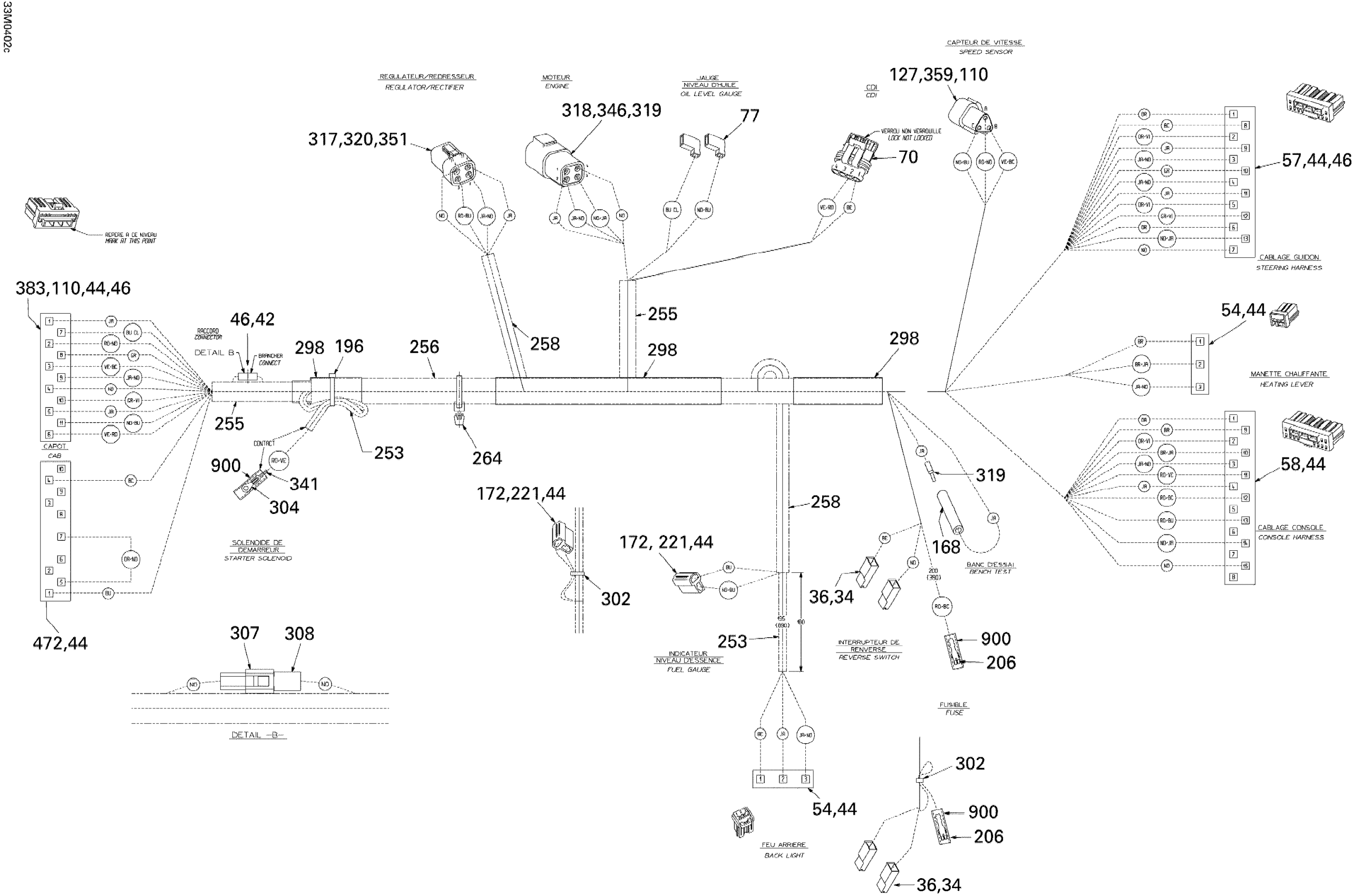

Ski-Doo Legend 380F, 2004 Frame Harness Diagram
#
Description
Price
34
Frame Harness | Includes Items 34 to 900
515175983
Unavailable
42
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
44
Female Terminal
515175231
Unavailable
57
Female Terminal Housing, 13 Circuits
515175350
Unavailable
58
FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership
515175349
Unavailable
62
Female Terminal
278001014
Unavailable
70
Female Housing, 4 Circuits
409209700
Unavailable
73
Wire Seal
278001013
Unavailable
168
Deutsch Joint Housing
515175259
Unavailable
172
Female Terminal
561503100
Unavailable
196
Tie Wrap 142 mm
293750002
Unavailable
206
Female Terminal
409004200
Unavailable
221
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
253
TUBING 6 MM - Call your local BRP dealership
515175442
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
298
Tape
293740005
Unavailable
304
Ring Terminal
515175504
Unavailable
307
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175509
Unavailable
308
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175510
Unavailable
317
Female Terminal Housing, 4 Circuits
278001473
Unavailable
318
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
341
Not Available As Spare Part - Friction Washer
Unavailable
346
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
351
Female Lock, 4 Circuits
278001474
Unavailable
359
Male Housing
515175666
Unavailable
383
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175719
Unavailable
472
Housing
417128527
Unavailable
900
Hose
415079200
Unavailable
