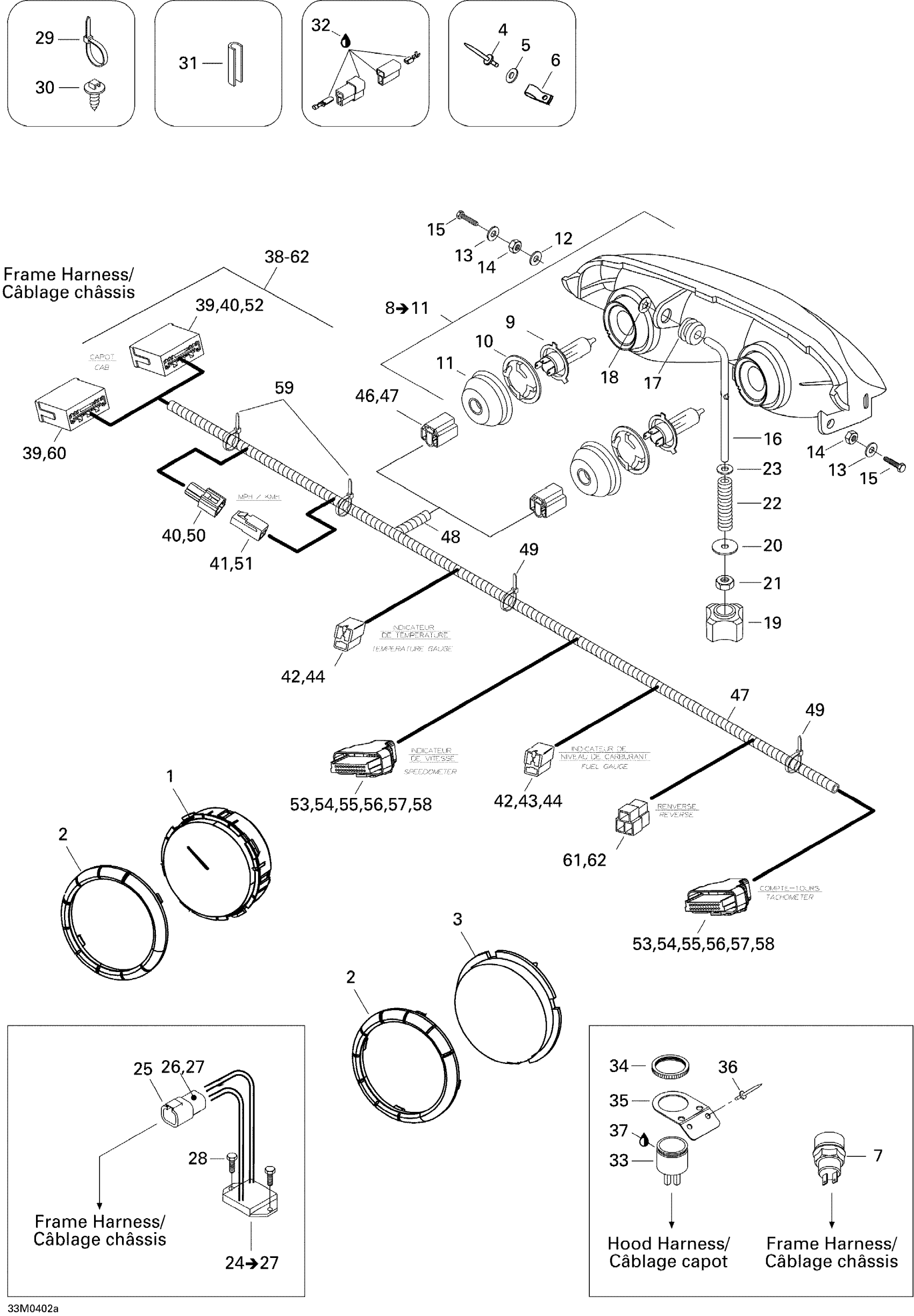

Ski-Doo Legend 380F, 2004 Cab Harness (Legend) Diagram

#

Description
Price

1

Speedometer

515175999

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

Unavailable

3

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

4

Pop Rivet 3/16"

390402200

$0.26

5

Flat Washer

517225900

$0.17

6

CLIP - Call your local BRP dealership

415018200

$2.89

7

Push Button

415130372

Unavailable

8

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

9

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

10

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

11

COVER - Call your local BRP dealership

515175911

Unavailable

12

Flat Washer 10 mm

234001410

Unavailable

13

Flat Washer M5

234051410

Unavailable

14

NUT M5 - Call your local BRP dealership

250100018

Unavailable

15

Hex. Screw M5 X 35

207053544

Unavailable

16

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

17

Grommet - Call your local BRP dealership

415100800

Unavailable

18

Push Nut

732610072

Unavailable

19

Handle - Call your local BRP dealership

515175548

Unavailable

20

Washer

224060251

Unavailable

21

Elastic Stop Nut M6

232561414

Unavailable

22

SPRING - Call your local BRP dealership

415100600

Unavailable

23

Flat Washer 6 mm

234061410

Unavailable

29

Tie Wrap 94 mm | 4X4

293750001

$0.83

29

Tie-Rap 173 mm

293750009

Unavailable

29

Tie-Rap 180 mm

414115200

$0.09

30

Mount Dart

293730040

$0.86

31

Was 271000110 Protection Trim

219704353

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

33

HORN - Call your local BRP dealership

515176035

Unavailable

34

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

35

PLATE - Call your local BRP dealership

515175688

Unavailable

36

Pop Rivet 3/16"

390402200

$0.26

37

Silicone Sealant 51388, 300 ml

296000309

Unavailable

38

CAB WIRING HARNESS - Call your local BRP dealership | Includes 53 to 77

515175984

Unavailable

39

Male Terminal

515175232

$1.49

40

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

41

Female Terminal

515175282

$6.43

42

Female Terminal

561503100

Unavailable

43

Female Terminal

561503100

Unavailable

44

Female Housing

409204300

Unavailable

45

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

46

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

47

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

48

Tubing 10 MM 1000MM Long

219704407

Unavailable

49

Tie Wrap 94 mm | 4X4

293750001

$0.83

50

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

51

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

52

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

53

Plug

515175812

Unavailable

54

Female Housing, 24 Circuits

515175801

Unavailable

55

Retainer Block

515175802

Unavailable

56

Wire Seal

515175803

Unavailable

57

BLOCK - Call your local BRP dealership

515175804

$6.66

58

Female Terminal

515175806

$0.81

59

Tie-Rap 180 mm

414115200

$0.09

60

Not Available As Spare Part - Friction Washer

Unavailable

61

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

62

Female Terminal

515176071

Unavailable
