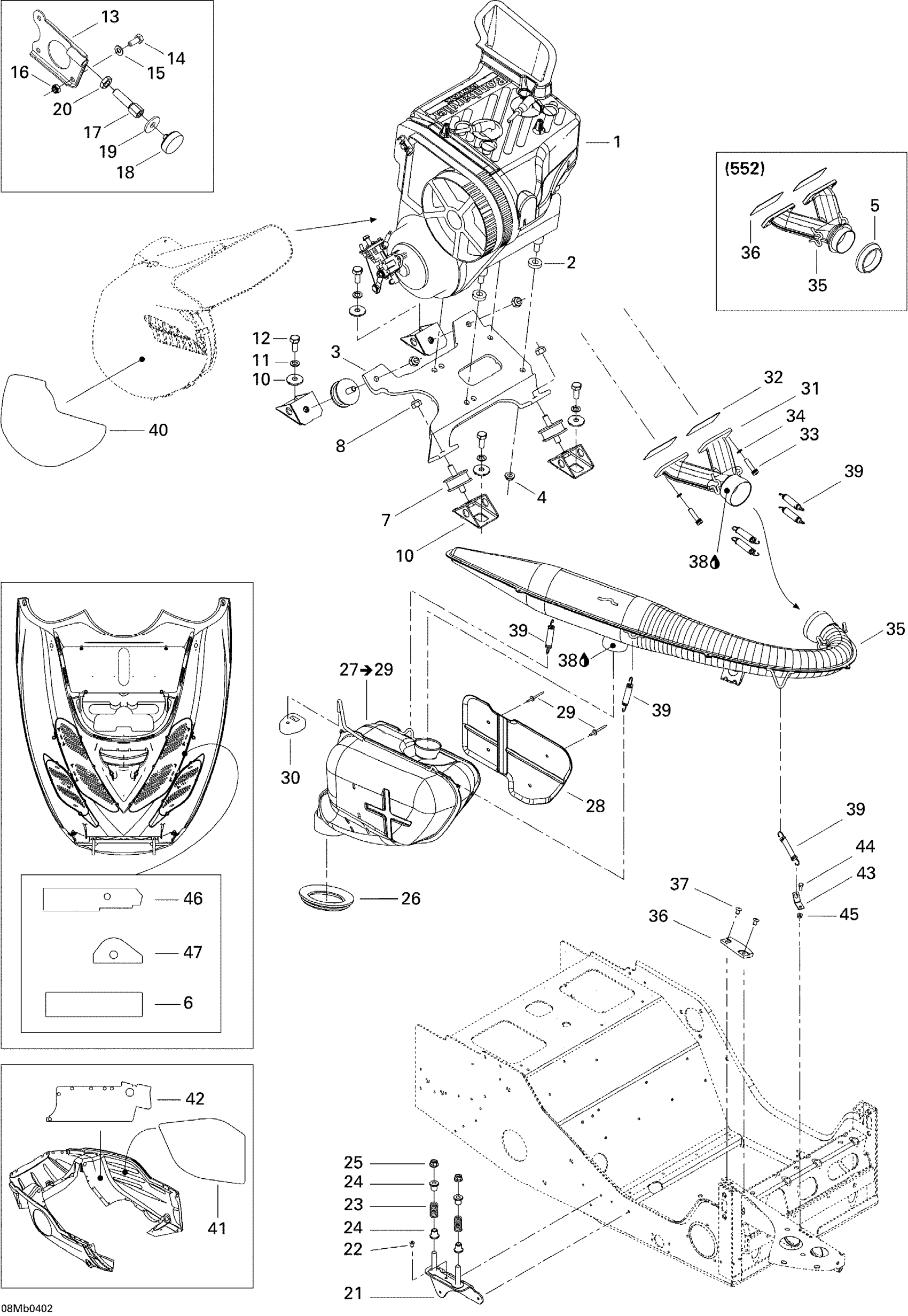

Ski-Doo Legend 380F, 2004 Engine Support And Muffler (380F) Diagram
#
1
«377» Engine
400308912
Unavailable
2
SPACER - Call your local BRP dealership
512051800
Unavailable
3
Engine Support
512059397
Unavailable
6
Reflective Sheet
514053392
Unavailable
7
RUBBER MOUNT - Call your local BRP dealership
570128700
Unavailable
9
Engine Support
512050900
Unavailable
10
Lock Washer
512056700
Unavailable
11
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
12
Hex. Screw M10 X 25
207102544
Unavailable
13
Welded Plate
512059446
Unavailable
15
Flat Washer 8 mm
234081410
Unavailable
16
Hex. Elastic Stop Nut M8
232581414
Unavailable
17
STOPPER SCREW - Call your local BRP dealership
512058800
Unavailable
18
Stopper
512059056
Unavailable
19
WASHER - Call your local BRP dealership
512059057
Unavailable
20
Nut Hexagonal RH.
232026414
Unavailable
21
Muffler Bracket
514053263
Unavailable
25
Lock Spring Nut M8
233481413
Unavailable
26
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
27
Muffler Ass’y | 380F, Includes Items 27 to 29
514053387
Unavailable
28
Heat Shield
514053389
Unavailable
31
Exhaust Manifold
420878938
Unavailable
32
GASKET - Call your local BRP dealership
420850114
Unavailable
33
Socket Head Screw M8 X 30
205083044
Unavailable
34
Lock Washer 8 mm
234181401
Unavailable
35
Calibration Tube | 380F
514053243
Unavailable
36
Rubber Pad
570044100
Unavailable
37
Pop Rivet 3/16"
293150103
Unavailable
38
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
40
Reflective Sheet
514053363
Unavailable
41
Reflective Sheet
514052718
Unavailable
42
REFLECTIVE SHEET - Call your local BRP dealership
514053390
Unavailable
44
Hex. Screw M5 X 12
207151244
Unavailable
45
Hex. Flange Elastic Nut M5
233251414
Unavailable
46
Reflective Sheet, Black Cab
514053435
Unavailable
47
Reflective Sheet, Black Cab
514053446
Unavailable
