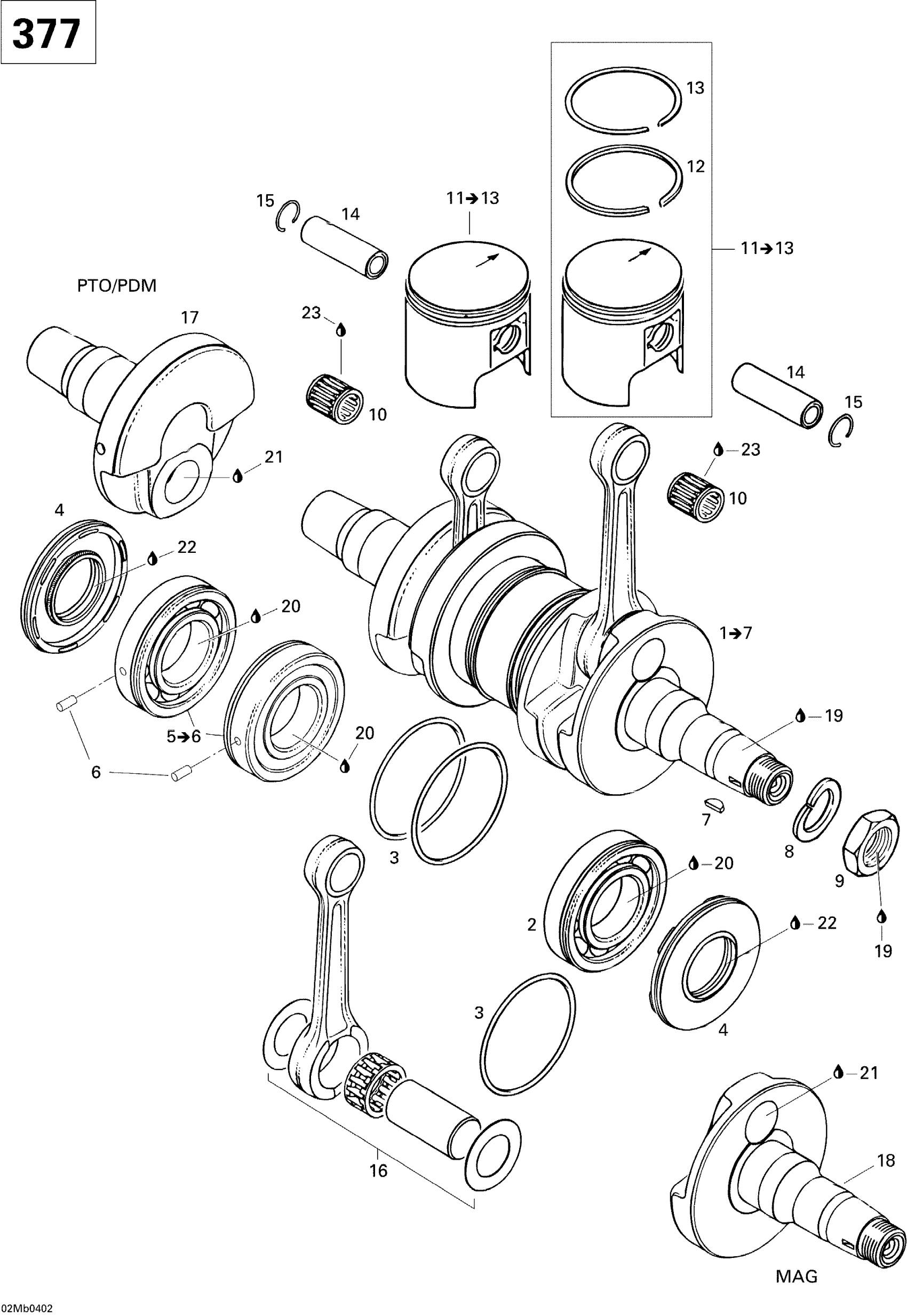

Ski-Doo Legend 380F, 2004 Crankshaft (380F) Diagram
#
Description
Price
1
Crankshaft | Includes 1 to 7
420889630
Unavailable
2
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Oil Seal This part replaces 290831952.
420831952
Unavailable
5
BALL BEARING - Call your local BRP dealership
420832574
Unavailable
6
Dowel Pin
420929972
Unavailable
7
Woodruff Key
420246055
Unavailable
8
Lock Washer, 22 mm
420945759
Unavailable
9
Hex. Nut, M22 X 1.5
420842239
Unavailable
10
Needle Bearing
420932904
Unavailable
11
PISTON ASS?Y 61.94 MM - Call your local BRP dealership | Inludes Items 11 to 13
420887475
Unavailable
11
Oversize Piston Ass’y 62.19 mm | Inludes Items 11 to 13
420887476
Unavailable
11
Oversize Piston Ass’y 62.44 mm | Inludes Items 11 to 13
420887477
Unavailable
12
RECTANGULAR RING, 62.0 MM - Call your local BRP dealership
420915895
Unavailable
12
Rectangular Ring, 62.25 mm
420915896
Unavailable
12
RECTANGULAR RING, 62.5 MM - Call your local BRP dealership
420915897
Unavailable
13
SEMI-TRAPEZ RING, 62.0 MM - Call your local BRP dealership
420215215
Unavailable
13
SEMI-TRAPEZ RING, 62.25 MM - Call your local BRP dealership
420215216
Unavailable
13
SEMI-TRAPEZ RING, 62.5 MM - Call your local BRP dealership
420215217
Unavailable
14
GUDGEON PIN - Call your local BRP dealership
420916260
Unavailable
15
Piston Circlip
420945735
Unavailable
16
Rod Repair Kit
420889634
Unavailable
17
PTO Side Crankshaft
420818204
Unavailable
18
MAG SIDE HALF-CRANK - Call your local BRP dealership
420819010
Unavailable
20
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
21
Sealant Loctite 648
219703000
Unavailable
23
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
