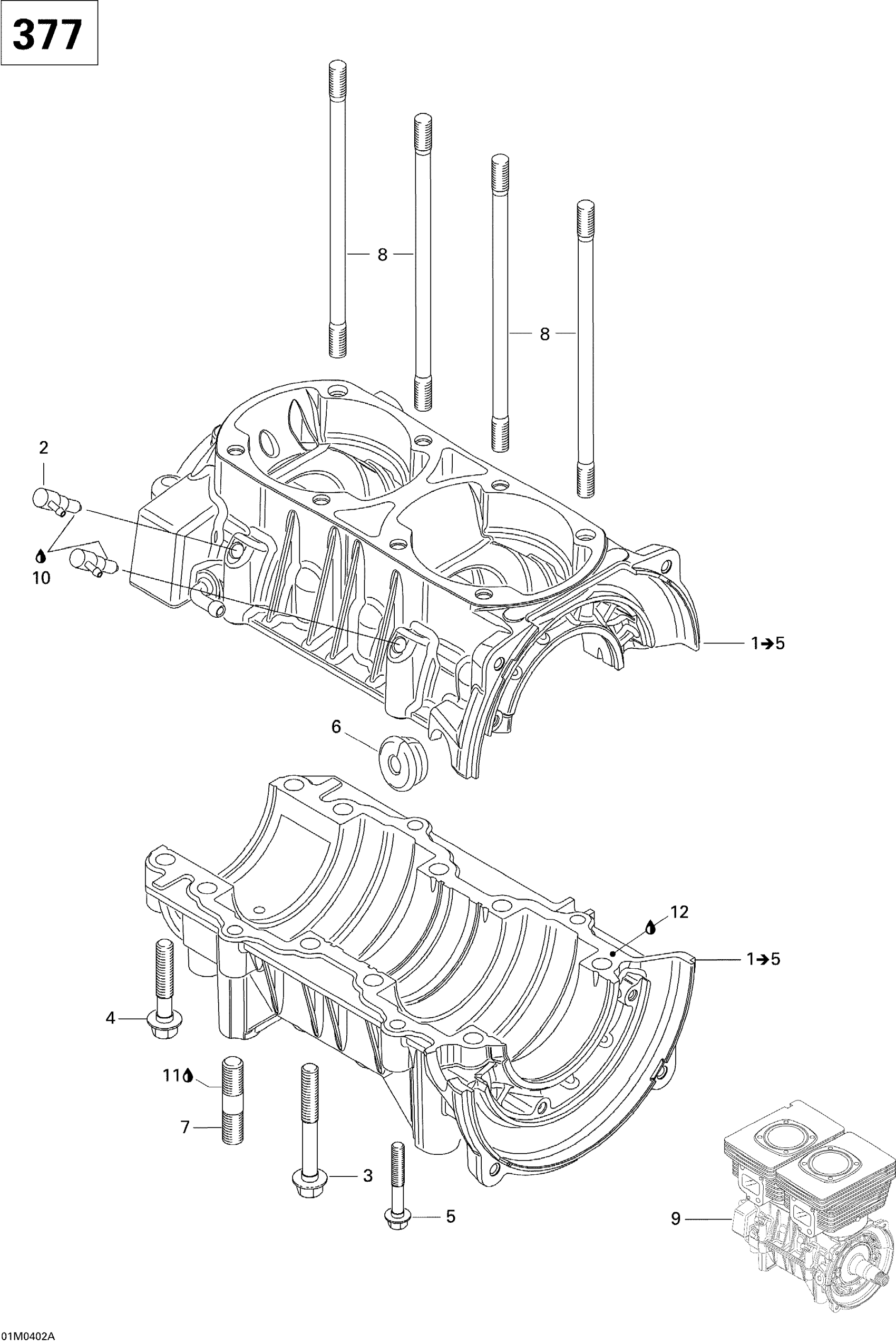

Ski-Doo Legend 380F, 2004 Crankcase (380F) Diagram

#

Description

Price

1

CRANKCASE ASSY. - Call your local BRP dealership | 1 to 5

420888486

Unavailable

2

Check Valve

420956511

$28.57

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

Unavailable

4

Hex. Collar Screw M8 x 45

420841431

Unavailable

5

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

6

Cable Grommet

420860962

Unavailable

7

Stud M10 X 29/20

420940190

Unavailable

8

STUD M8 X 167 - Call your local BRP dealership

420841149

Unavailable

9

Short Block Ass’y

420037705

Unavailable

10

Sealant Loctite 648

219703000

Unavailable

11

Loctite 243, 10 ml

293800060

$20.77

12

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable
