1981 Yamaha LC50 (LC50H) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1981 Yamaha LC50 (LC50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

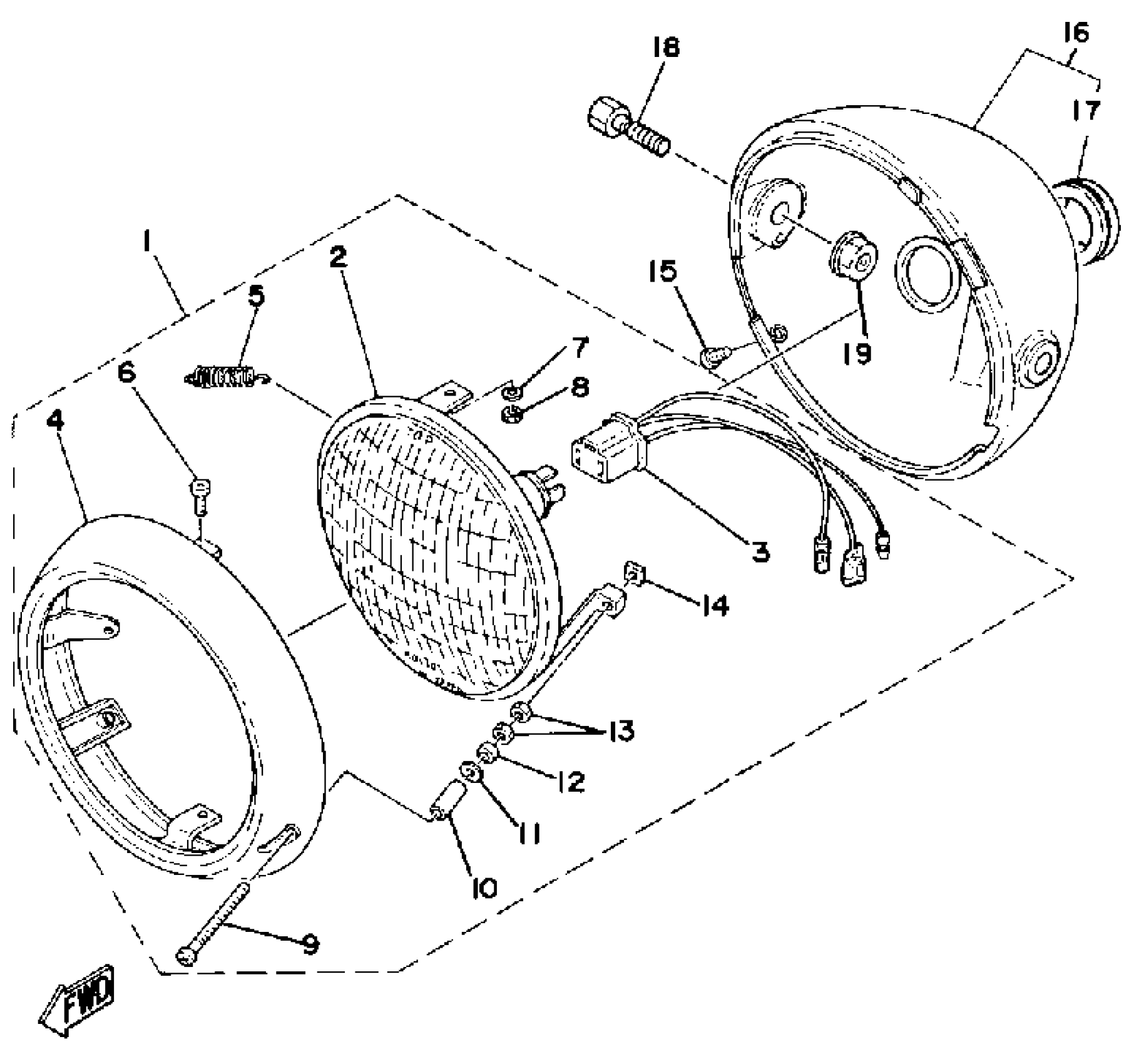

1981 Yamaha LC50 (LC50H) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD LAMP UNIT ASSY

388-84110-61-00

—
Out of stock

2

LENS ASSY

388-84120-61-00

1
Out of stock

3

SOCKET

371-84312-60-00

—

$26.52

In stock

4

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

5

SPRING

(132-84335-60-00)

1
Out of stock

6

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

NUT(6L4)

95380-04700-00

—

$5.62

In stock

9

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

10

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

11

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

12

. SPACER

132-84328-60-00

1
Out of stock

13

NUT(6L4)

95380-04700-00

—

$5.62

In stock

14

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

15

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

16

BODY ASSEMBLY, HEADLIGHT

393-84130-61-4G

1
Out of stock

16

BODY, HEAD LAMP

393-84130-61-E1

1
Out of stock

17

COLLAR, BODY FTNG

214-84145-60-00

1
Out of stock

18

BOLT

90109-08534-00

1
Out of stock

19

NUT, FLANGE

95704-08500-00

—
Out of stock
