1976 Yamaha LB80II (LB80IIHC) Shift CAM - Fork Diagram

← All diagrams

Find the part on the Shift CAM - Fork diagram for your 1976 Yamaha LB80II (LB80IIHC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

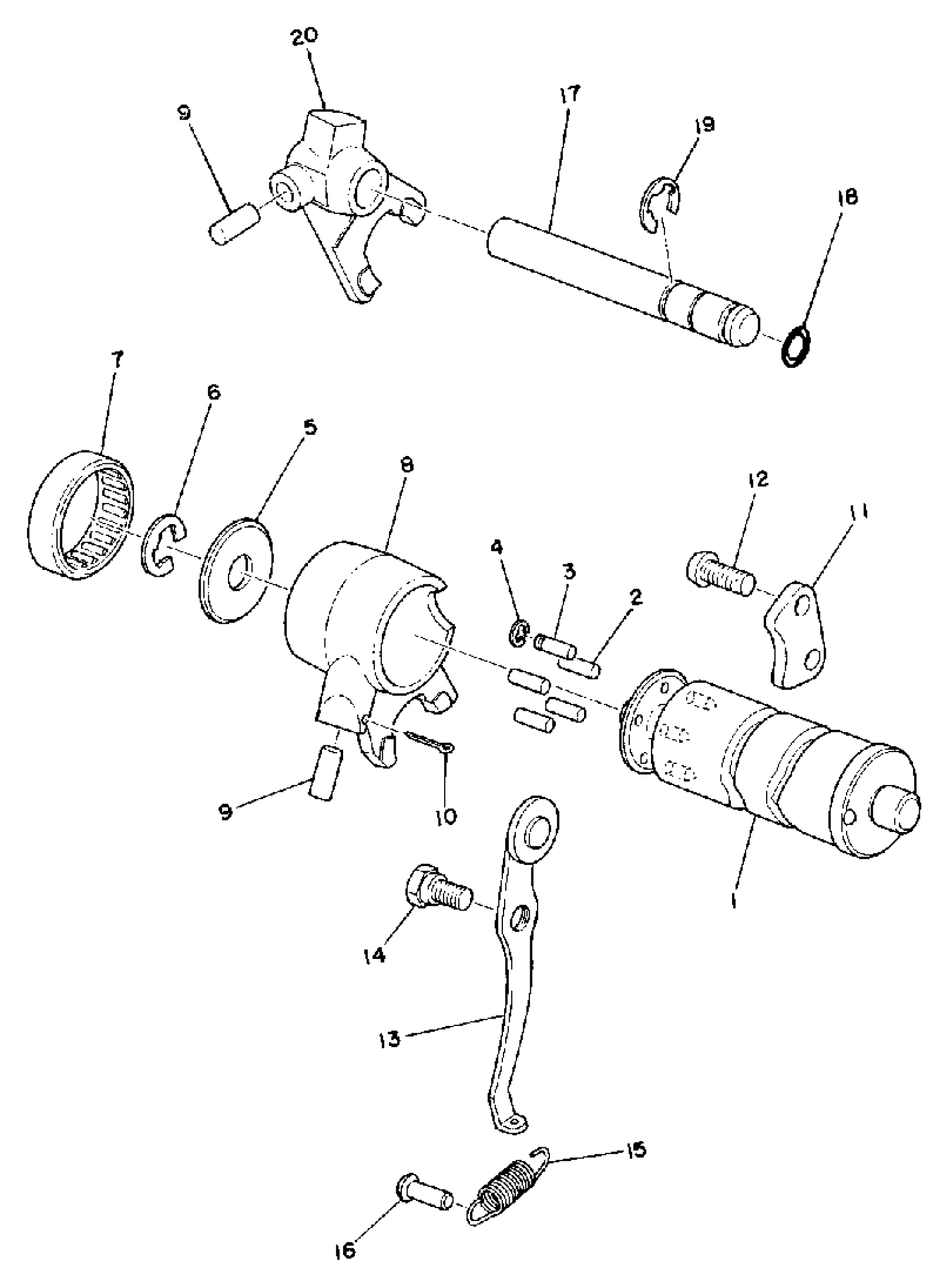

1976 Yamaha LB80II (LB80IIHC) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

(542-18541-00-00)

1
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

4

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

5

PLATE, SIDE

296-18561-00-00

1

$5.38

In stock

6

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

7

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

1

$29.23

In stock

8

FORK, SHIFT 1

(425-18511-00-00)

1
Out of stock

9

PIN,DOWEL(296)

93606-14081-00

1
Out of stock

10

PIN, COTTER

91490-25020-00

1

$2.94

In stock

11

PLATE, STOPPER 2

(441-18562-00-00)

1
Out of stock

12

SCREW, PAN

98507-06014-00

1

$6.18

In stock

13

STOPPER LEVER ASSEMBLY

(441-18140-00-00)

1
Out of stock

14

BOLT

90109-06239-00

1

$5.77

In stock

15

SPRING, TENSION

(90506-09126-00)

1
Out of stock

16

HOOK, SPRING

132-16346-00-00

—
Out of stock

17

BAR, SHIF FRK GDE 1

(441-18531-01-00)

1
Out of stock

18

O-RING

93210-08003-00

—

$6.86

In stock

19

CIRCLIP

99006-10600-00

—

$6.91

In stock

20

FORK, SHIFT 2

353-18512-01-00

1
Out of stock
