1999 Kawasaki Lakota 300 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1999 Kawasaki Lakota 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

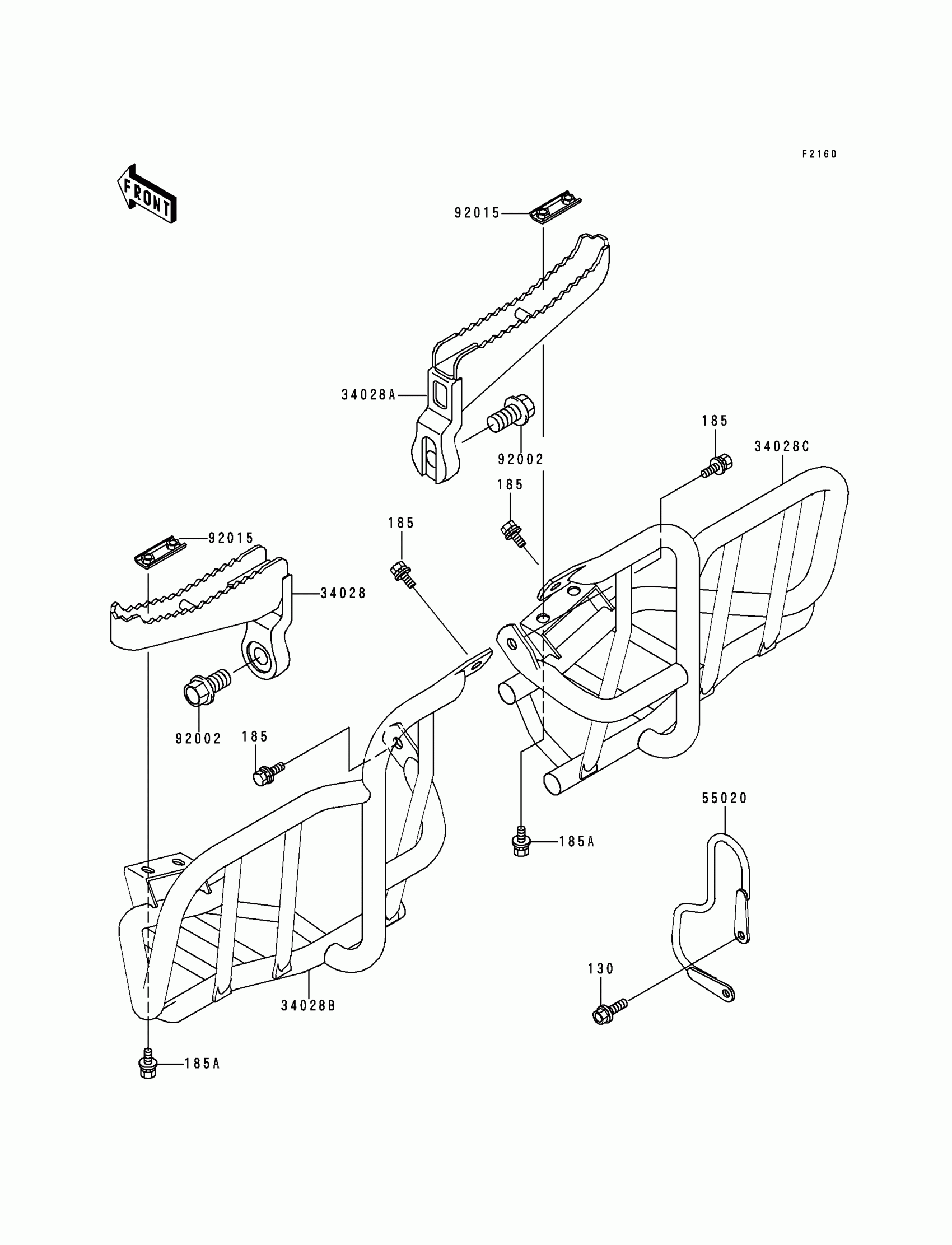

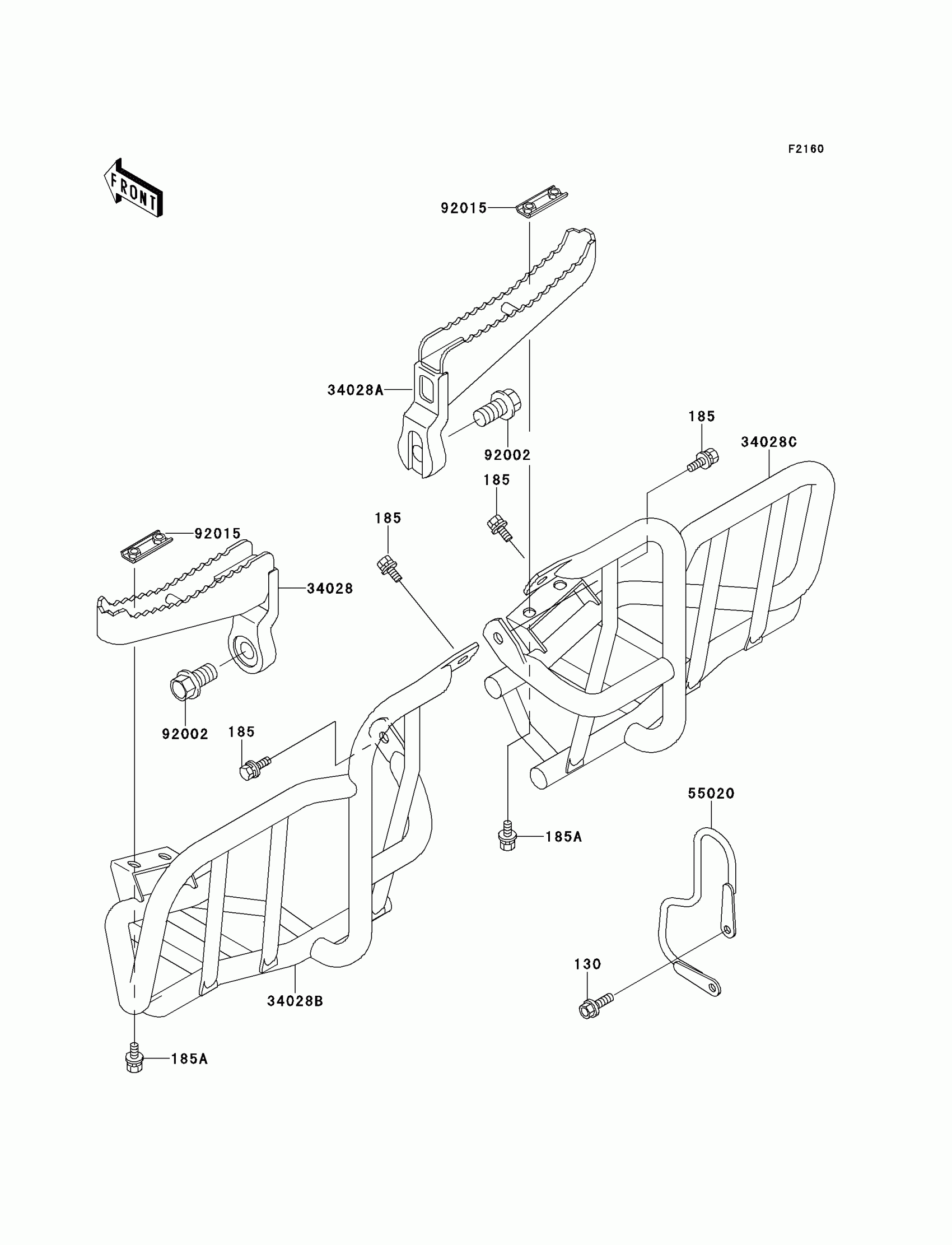

1999 Kawasaki Lakota 300 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130G0612

1
Out of stock

185

BOLT-UPSET-WSP-SMALL

185J0818

1
Out of stock

185A

BOLT-UPSET-WSP-SMALL,8X20

185J0820

1
Out of stock

34028

STEP,LH,SILVER NO.40

34028-1391-5A

1

$79.62

In stock

34028A

STEP,RH,SILVER NO.40

34028-1392-5A

1
Out of stock

34028B

STEP,FOOT BOARD,LH,SILVER

34028-1397-5A

1
Out of stock

34028C

1

$65.95

In stock

55020

GUARD,CHAIN,LEFT SIDE,SILVER

55020-1526-5A

1
Out of stock

92002

BOLT,FLANGED,14X25

92002-1767

1
Out of stock

92015

NUT

92015-1732

1
Out of stock
