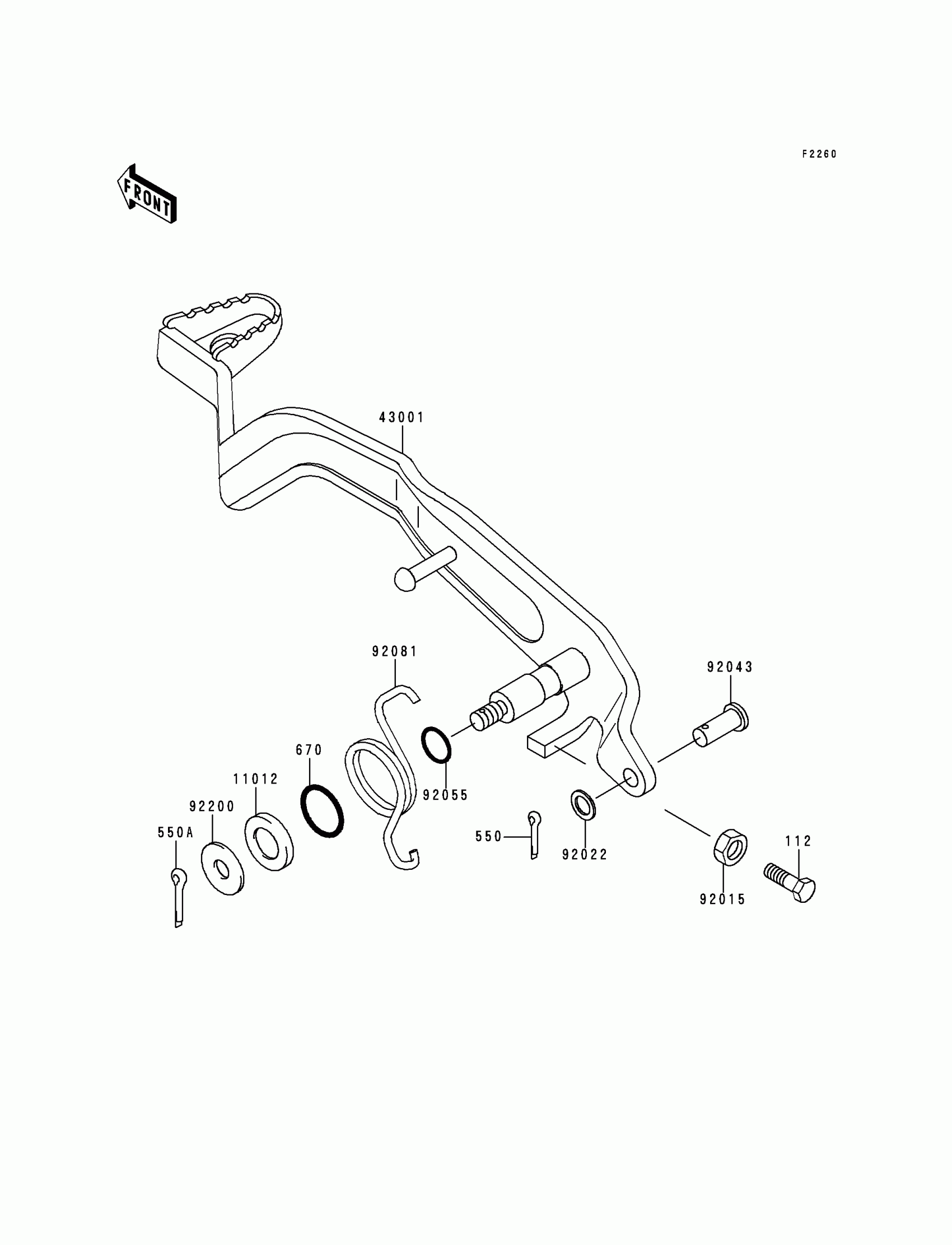

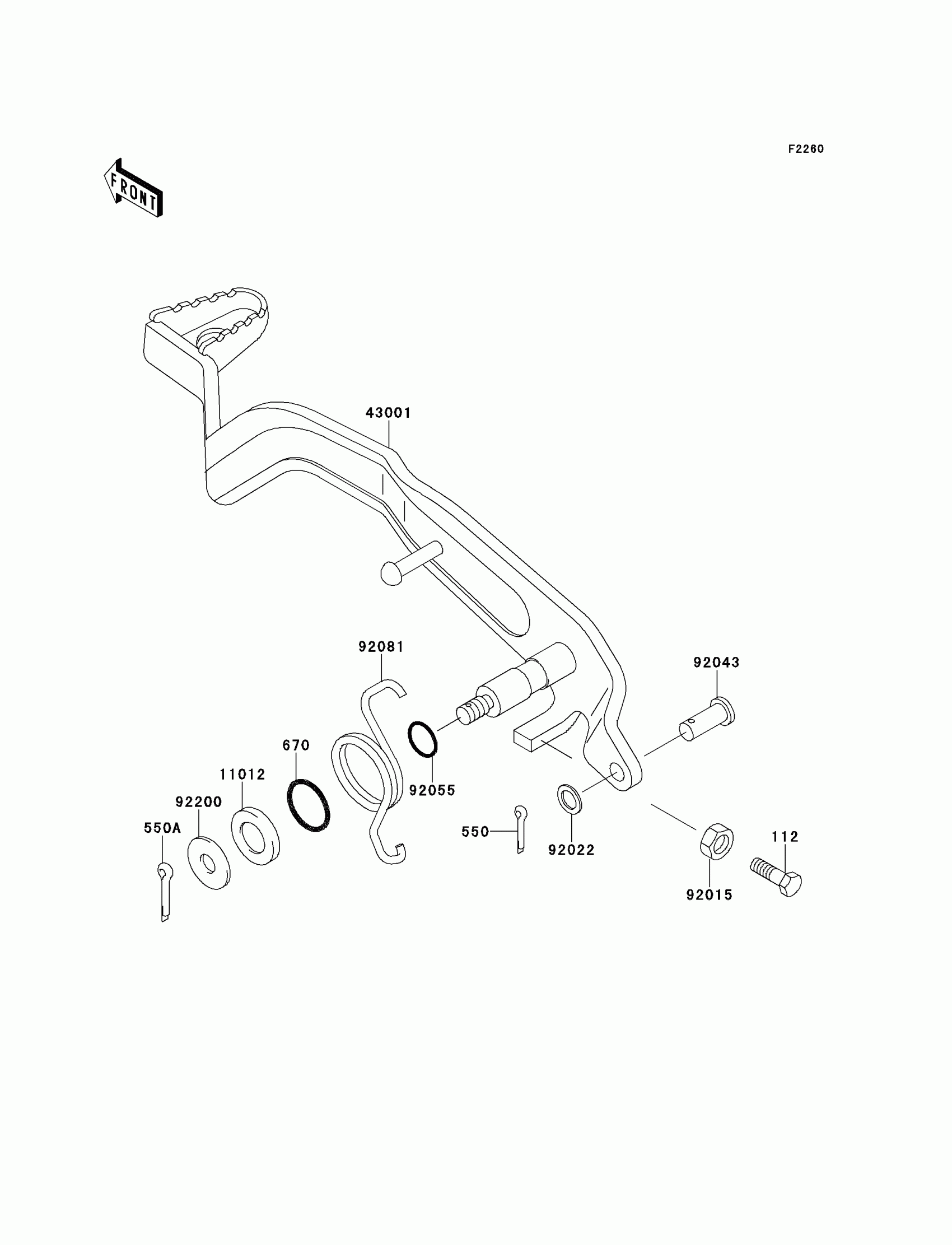

Kawasaki Lakota 300 Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112D0622

Unavailable

550

PIN-COTTER,2.0X20

550D2020

Unavailable

550A

PIN-COTTER,2.5X25

550D2525

Unavailable

670

O RING,18MM

670B2018

$1.08

11012

CAP

11012-1516

Unavailable

43001

LEVER-BRAKE,PEDAL,SILVER NO.40

43001-1350-5A

$71.20

92015

NUT,6MM

92015-1410

$3.53

92022

WASHER,8.5X13X1

92022-1028

$2.99

92043

92043-1039

$7.54

92055

RING-O,13.5MM

92055-073

$9.71

92081

SPRING,BRAKE PEDAL RETURN

92081-1996

$8.10

92200

WASHER,8.5X23X1.6

92200-1156

$3.28
