2000 Kawasaki Lakota 300 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2000 Kawasaki Lakota 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

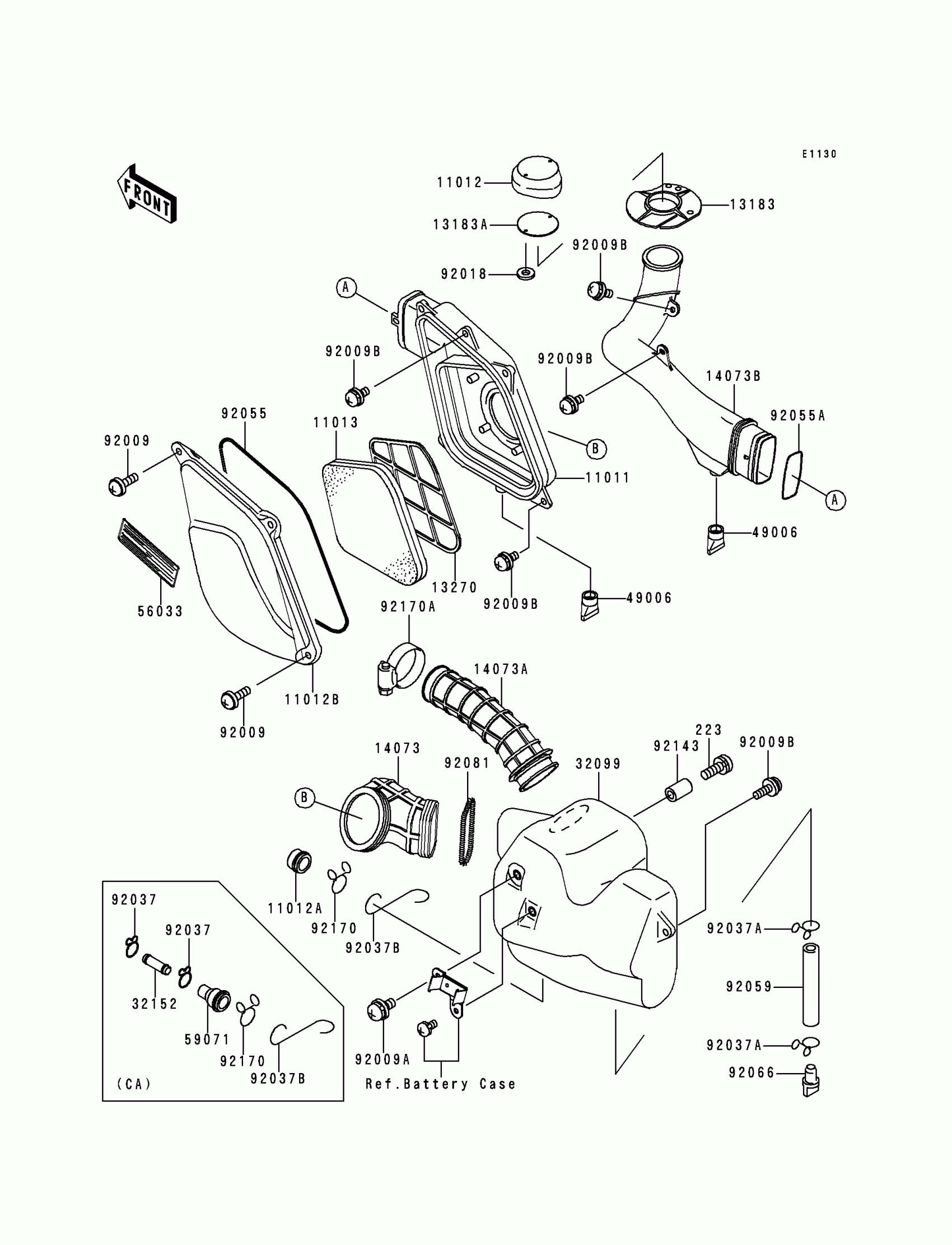

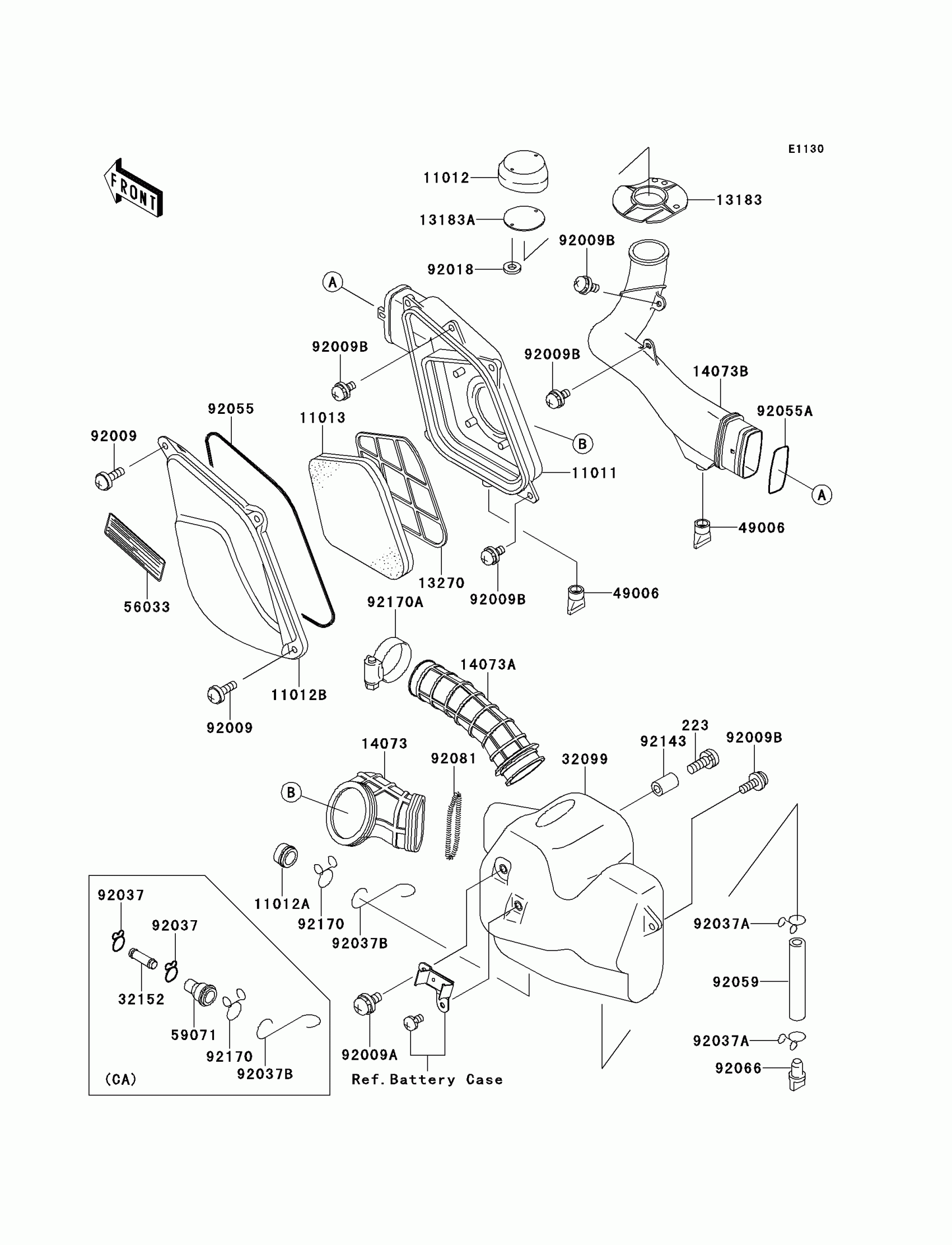

2000 Kawasaki Lakota 300 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

223

SCREW-PAN-WS-CROS

223C0635

1
Out of stock

11011

CASE-AIR FILTER

11011-1442

1
Out of stock

11012

CAP,SNORKL DUCT

11012-1537

1
Out of stock

11012B

CAP,CAR FILTER

11012-1902

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1145

1
Out of stock

13183

PLATE,SNORKL DUCT

13183-1019

1
Out of stock

13183A

PLATE,SNORKL CAP

13183-1020

1
Out of stock

13270

PLATE,ELEMENT

13270-1317

1
Out of stock

14073

DUCT,CHAMBER-AIRFILTER

14073-1266

1
Out of stock

14073A

DUCT,AIR FILTER

14073-1611

1

$31.66

In stock

14073B

DUCT,SNORKL

14073-1629

1
Out of stock

32099

CASE,AIR CHAMBER

32099-1155

1
Out of stock

49006

BOOT

49006-1292

1
Out of stock

56033

LABEL-MANUAL,MAINTENANCE

56033-1079

1
Out of stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009A

SCREW,6X14

92009-1275

1
Out of stock

92009B

SCREW,6X16

92009-1276

1
Out of stock

92018

NUT,PUSH,3MM

92018-005

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP

92037-1821

1
Out of stock

92055

RING-O,AIR FILTER CASE

92055-1344

1
Out of stock

92055A

RING-O,57.3X3

92055-1345

1
Out of stock

92059

TUBE,7X10X100

92059-1736

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92081

SPRING,DUCT

92081-1638

1
Out of stock

92143

COLLAR

92143-1046

1
Out of stock

92170

CLAMP,TUBE

92170-1445

1

$4.34

In stock

92170A

CLAMP

92170-1674

1

$9.32

In stock

11012A

CAP,HEAD

11012-1544

1
Out of stock

32152

PIPE

32152-1567

1
Out of stock

59071

JOINT

59071-1168

1
Out of stock

92037

CLAMP,12.5MM

92037-1271

1
Out of stock
