1969 Yamaha L5T_L5TA (L5T) Frame Diagram

← All diagrams

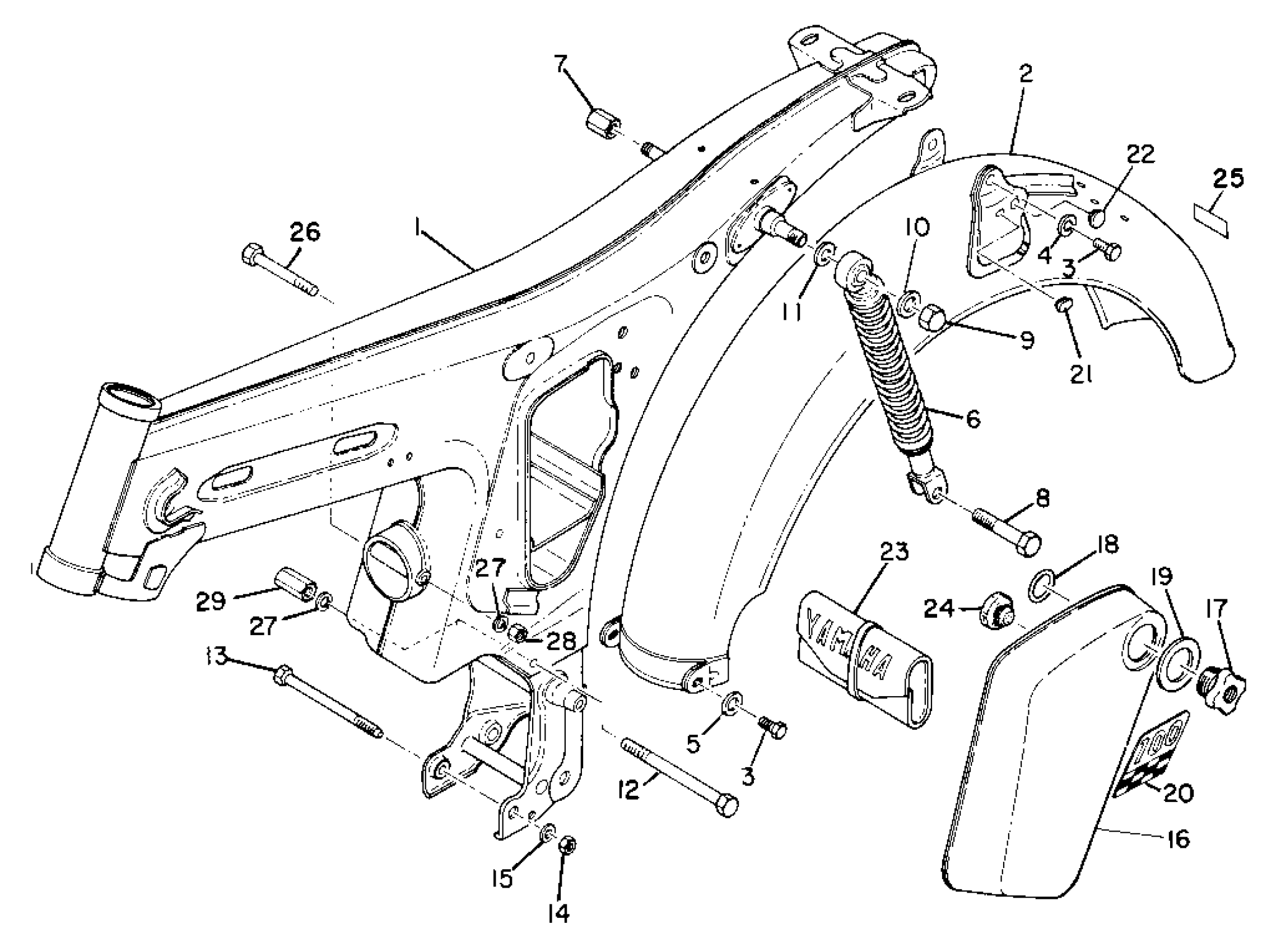

Find the part on the Frame diagram for your 1969 Yamaha L5T_L5TA (L5T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha L5T_L5TA (L5T) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(234-21110-00-33)

1
Out of stock

2

FENDER, REAR

(215-21610-00-35)

1
Out of stock

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

SHK/ABS ASSEMBLY, REAR

(215-22210-20-00)

1
Out of stock

7

NUT, HEXAGON

(90170-10050-00)

1
Out of stock

8

BOLT, DOME HEAD

(90106-08027-00)

1
Out of stock

9

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

10

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

11

WASHER, PLATE (4N0)

90201-126A7-00

1

$6.28

In stock

12

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

13

BOLT, WASHER BASED (3Y2)

90105-08162-00

1
Out of stock

14

NUT(6L2)

95333-08600-00

1

$3.20

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

COVER, SIDE 1

(220-21711-01-33)

1
Out of stock

16

COVER, SIDE 1

(220-21711-01-63)

1
Out of stock

17

KNOB, SIDE COVER 1

102-21714-00-00

1
Out of stock

18

RING, STOP

(102-21718-00-00)

1
Out of stock

19

SPACER, HANDLE 2 (648)

90202-34043-00

1
Out of stock

20

EMBLEM 7

(205-21787-00-00)

1
Out of stock

21

PLUG, BLIND

(185-83319-00-00)

1
Out of stock

22

PLUG, SPEC''L SHAPE

(90338-09060-00)

1
Out of stock

23

TOOL KIT

1E7-W2810-00-00

1
Out of stock

24

DAMPER, SIDE COVER

141-21717-00-00

—

$6.48

In stock

25

LABEL, SAFETY

(215-21659-00-00)

1
Out of stock

26

BOLT,HEXAGON

97027-08080-00

—

$3.37

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

28

NUT(6L2)

95333-08600-00

1

$3.20

In stock

29

NUT, HEXAGON (90170-08034)

90170-08156-00

1
Out of stock
