1977 Kawasaki KZ900-A5 Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

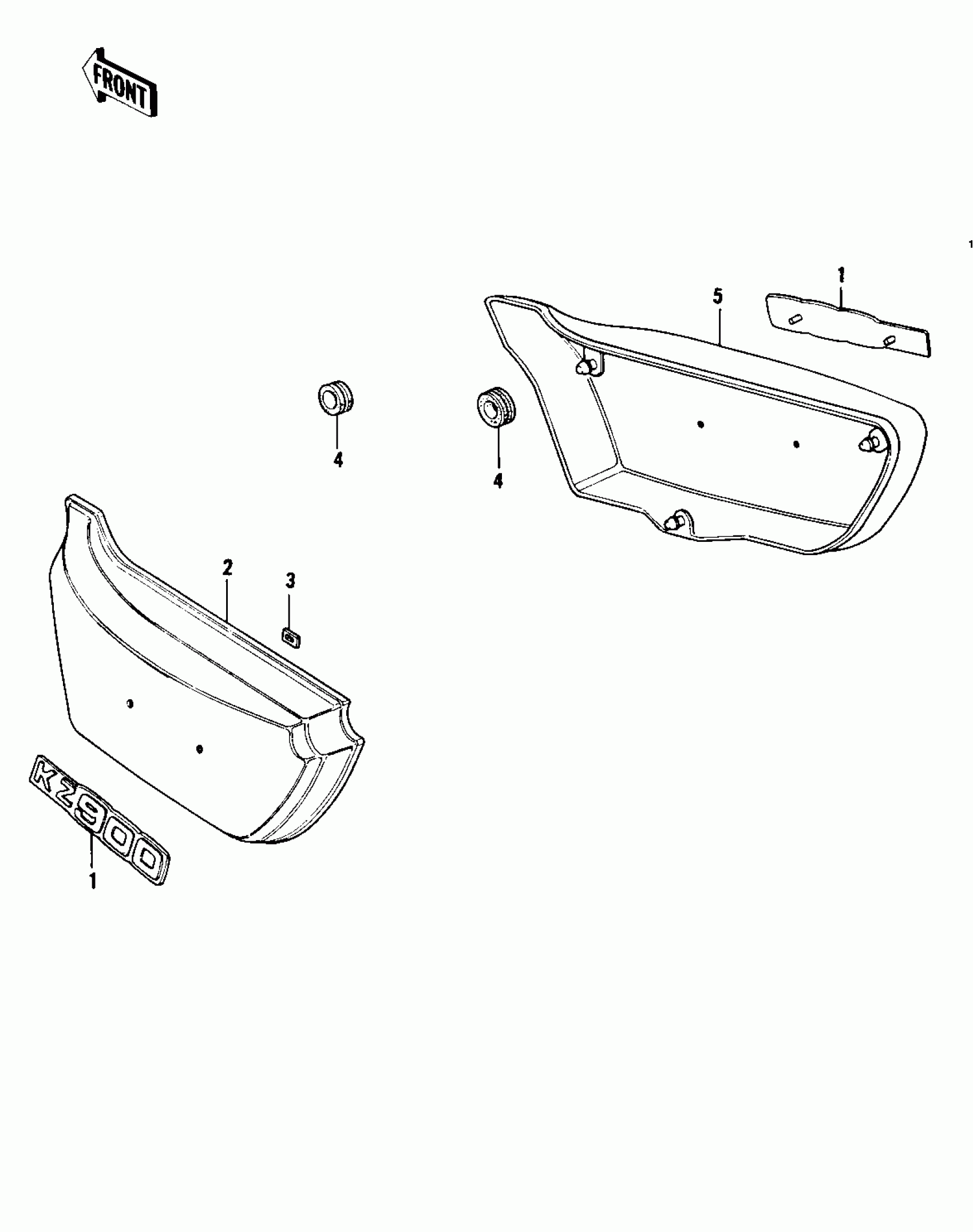

1977 Kawasaki KZ900-A5 Side Covers Diagram

#

Description
Price
Status
Order Qty

1

EMBLEM,SIDE COVER

56018-233

Out of stock

2

COVER,L.H SIDE,D.GREN

36001-054-3M

Out of stock

2

COVER,L.H SIDE,BROWN

36001-054-3N

Out of stock

3

NUT,PUSH,3MM

92018-005

$2.25

In stock

4

GROMMET

92071-056

$3.39

In stock

5

COVER,RH SIDE,GREEN

36007-051-3M

Out of stock

5

COVER,RH SIDE,BROWN

36007-051-3N

$135.81

In stock
