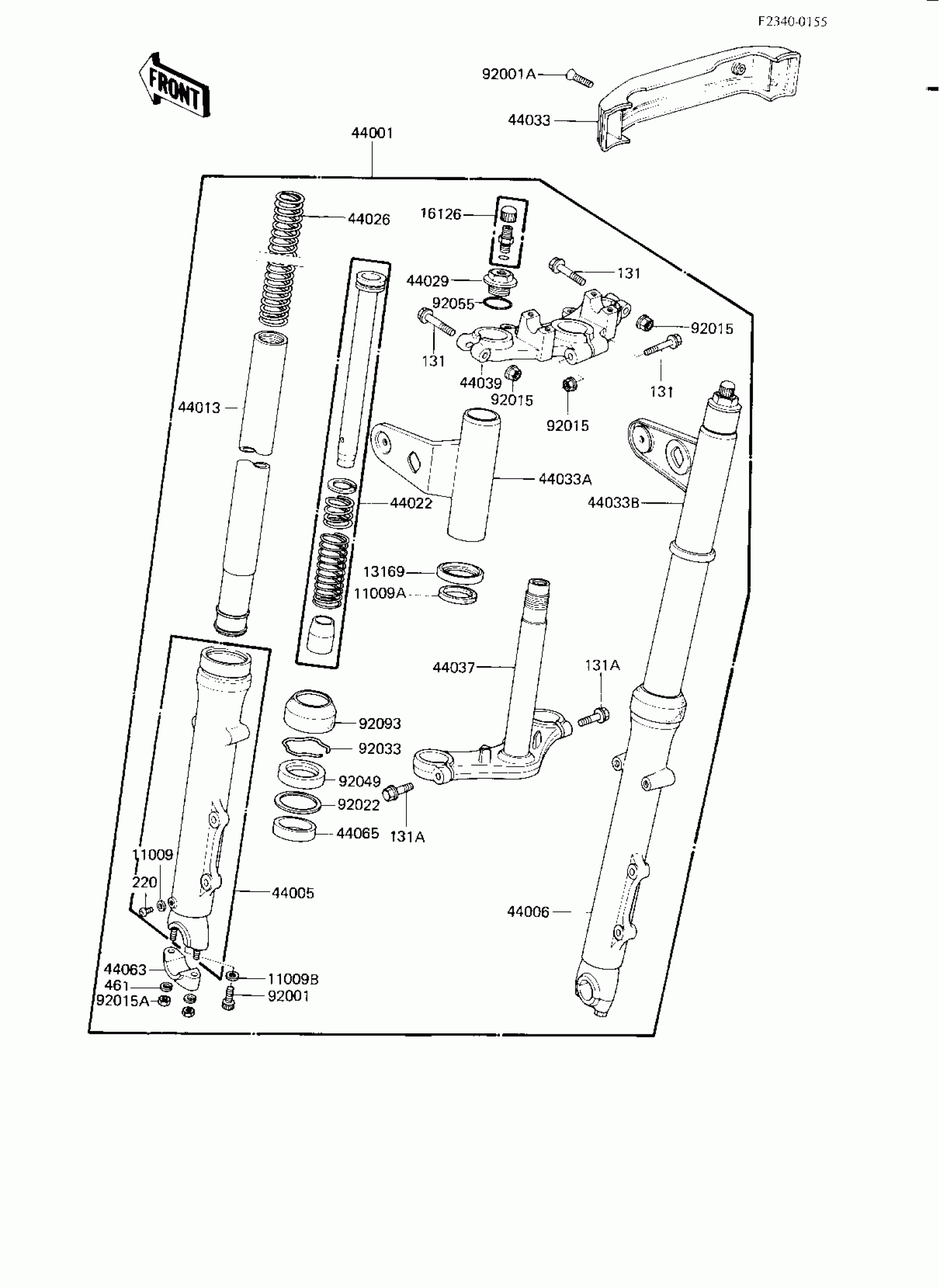

Kawasaki KZ750-L3 FRONT FORK Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

44045-002

$3.95

11009A

GASKET,FORK COVER

44045-038

Unavailable

11009B

GASKET

44045-057

$3.71

13169

PLATE,FORK COVER,LWR

13169-1849

Unavailable

16126

VALVE,AIR

16126-1052

$31.36

44001

FORK-FRONT

44001-1442

$1,304.93

44005

TUBE,LH,FORK OUTER

44005-1093

$260.18

44006

TUBE,RH,FORK OUTER

44006-1093

$403.76

44013

PIPE-FORK INNER

44013-1112

$384.77

44022

CYLINDER-FORK

44022-1079

$86.85

44026

SPRING-FRONT FORK

44026-1188

$59.71

44029

SEAT-FORK SPRING

44029-1039

$36.54

44033

COVER-FORK

44033-1084

$51.90

44033A

COVER-FORK,LH,F.BLAC

44033-1131

Unavailable

44033B

COVER-FORK,RH,F.BLAC

44033-1132

$145.36

44037

HOLDER-FORK UNDER

44037-1089

$348.75

44039

HOLDER-FORK UPPER

44039-1074

$324.31

44063

HOLDER-FRONT AXLE

44063-1006

$44.66

44065

BUSHING-FRONT FORK

44065-1016

$24.56

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

92001A

SCREW-CSK-RD-CROS

222C0518

$4.15

92015

NUT,FLANGED,8MM

92015-1408

$4.07

92015A

NUT,U,8MM,BLACK

92015-1205

Unavailable

92022

WASHER,FRONT FORK

92022-1275

$7.25

92033

RING-SNAP,FORK OIL

92033-1100

$11.66

92049

SEAL-OIL,FRONT FORK

92049-1101

$26.58

92055

RING-O,FORK TOP

92055-1012

$6.48

92093

DUST SHIELD,FORK

92093-1037

$23.78

131

BOLT-FLANGED,8X55

130G0855

Unavailable

131A

BOLT-FLANGED,12X35,BL

131J1235

Unavailable

220

SCREW,4X8

92009-1324

$1.25

461

WASHER-SPRING,8MM,BLACK

461K0800

Unavailable
