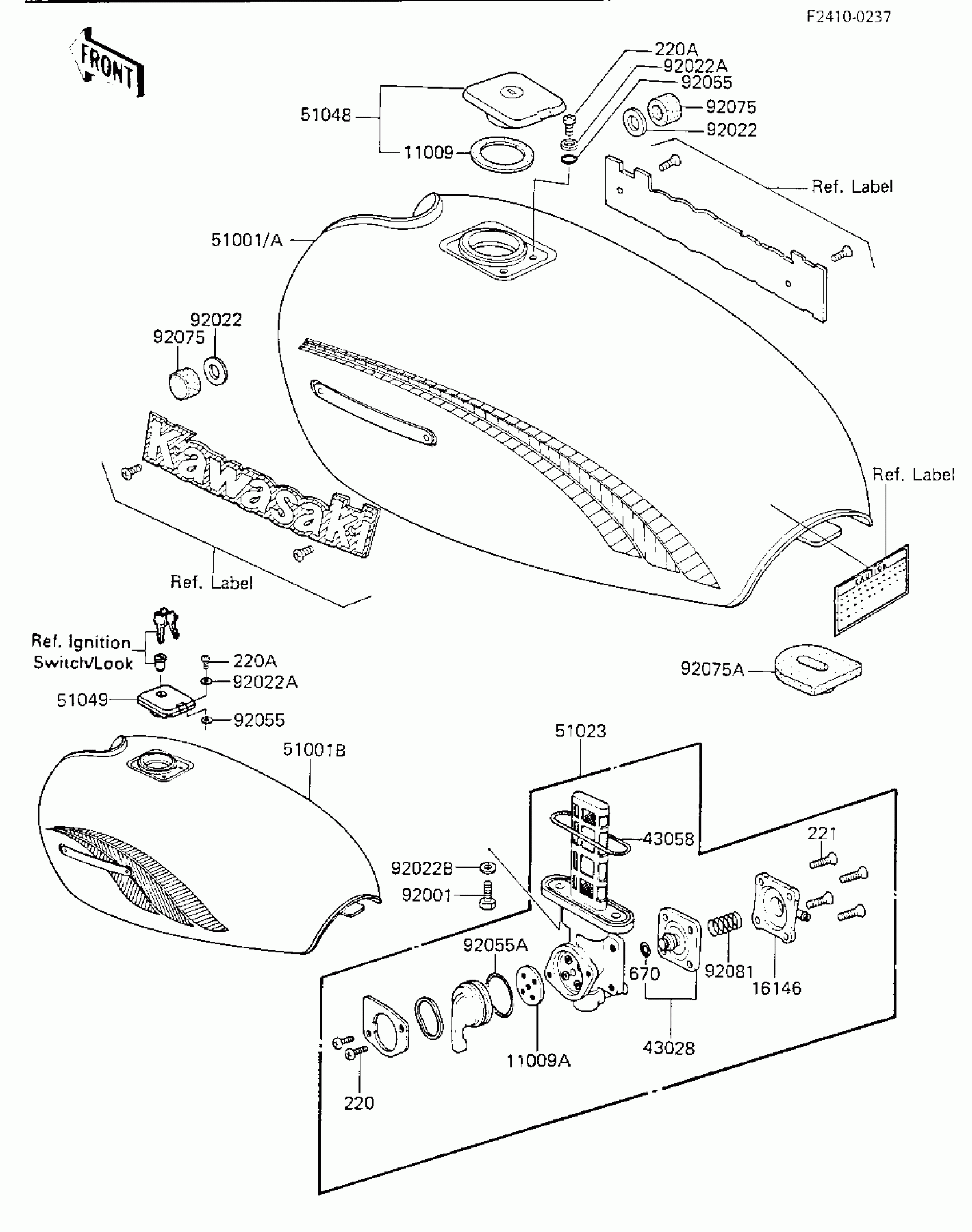

Kawasaki KZ750-K2 (Canada Only) FUEL TANK Diagram

Description

Price

11009A

GASKET,TAP VALVE

11009-1188

$4.33

16146

COVER ASSY,FUEL TAP

16146-1009

$17.34

43028

DIAPHRAGM,TAP

43028-1021

$27.04

43058

RING,TAP FLANGED

51039-003

$4.71

51001B

TANK-COMP-FUEL,EBONY

51001-5428-H8

$718.54

51023

TAP ASSY,FUEL

51023-1030

Unavailable

51049

CAP,TANK-FUEL

51049-1058

$186.31

92001

BOLT,6X20

92001-1091

$2.99

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92022A

WASHER,5.3X10X0.8

92022-1038

$2.76

92022B

WASHER-PLAIN

92022-183

$2.99

92055

RING-O

92055-1023

$2.99

92055A

RING-O,TAP LEVER

92055-1085

$3.85

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER,FUEL TANK

92075-295

$7.30

92081

SPRING,TAP DIAPHRAGM

92081-1240

$2.97

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW PAN HEAD 5X10

220B0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.14
