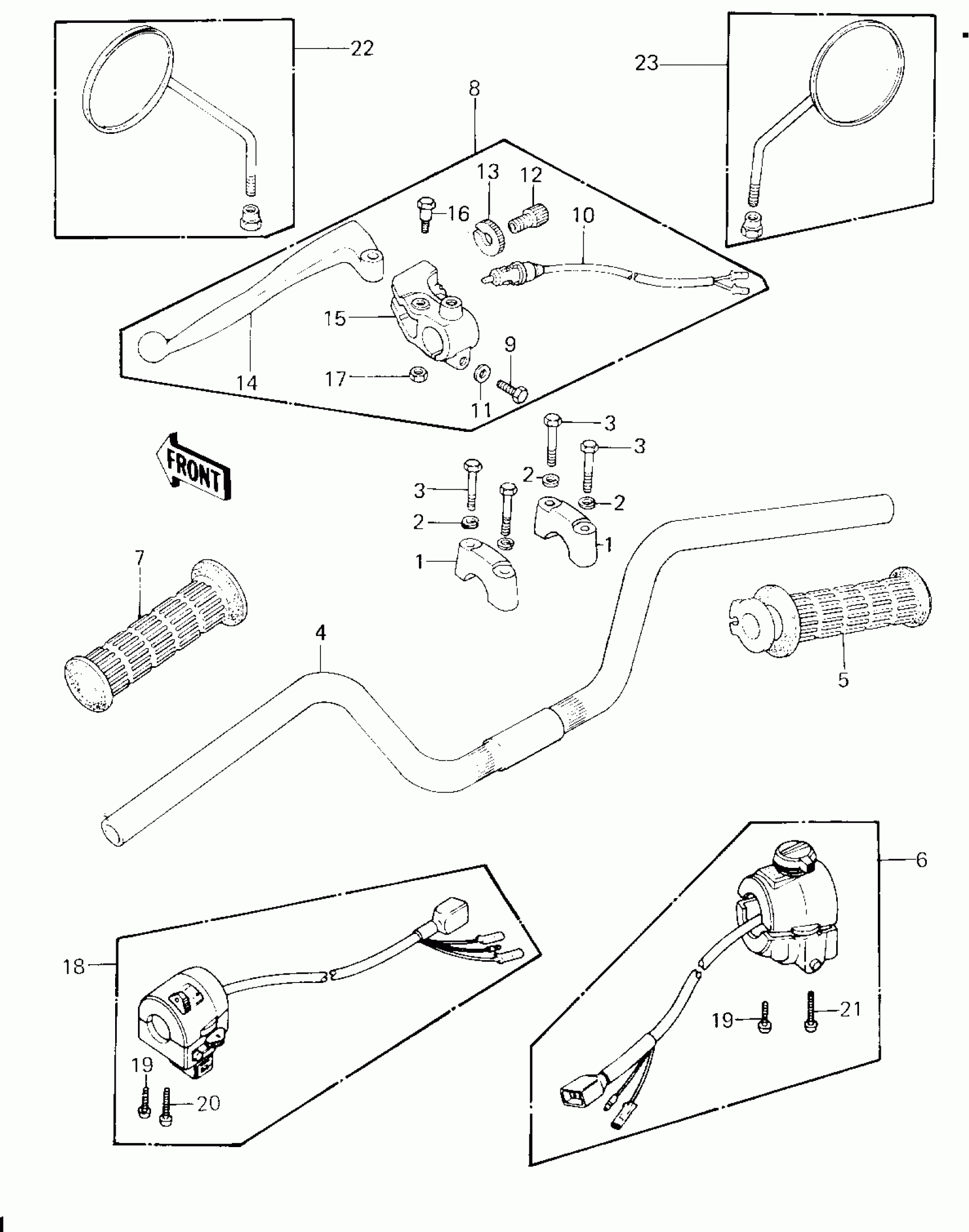

Kawasaki KZ650-F1 HANDLEBAR Diagram

#

Description
Price

1

HOLDER-HANDLE,UPP

46012-008

$33.69

2

WASHER SPRING 8MM

461F0800

Unavailable

3

BOLT 8X38

92001-1405

$12.52

4

HANDLEBAR

46003-1026

$127.51

5

GRIP ASSY,THROTTLE

46019-038

Unavailable

6

HOUSING ASSY,CONT,R.H

46091-1047

$141.82

7

RUBBER,L.H GRIP

46075-028

$40.75

8

LEVER ASSY,CLUTCH

46076-054

$104.73

9

BOLT HEX HEAD 6X25

110N0625

Unavailable

10

SWITCH,CLUTCH

27043-002

Unavailable

11

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

12

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

13

NUT,CABLE ADUST NUT

46056-007

Unavailable

14

LEVER-GRIP,CLUTCH

46092-023

$36.65

15

HOLDER,CLUTCH LEVER

46094-019

$72.21

16

BOLT,HEX HEAD

92007-047

Unavailable

17

NUT,LOCK 6MM

92017-014

$5.74

18

HOUSING ASSY,CONT,L.H

46091-1048

Unavailable

19

SCREW PAN HEAD 5X30

220B0530

Unavailable

20

SCREW-PAN-CROS

220B0535

$2.80

21

SCREW-PAN-CROS

220B0540

Unavailable

22

REAR VIEW MIRROR,L.H

56003-019

Unavailable

23

REAR VIEW MIRROR,R.H

56002-029

$77.17
