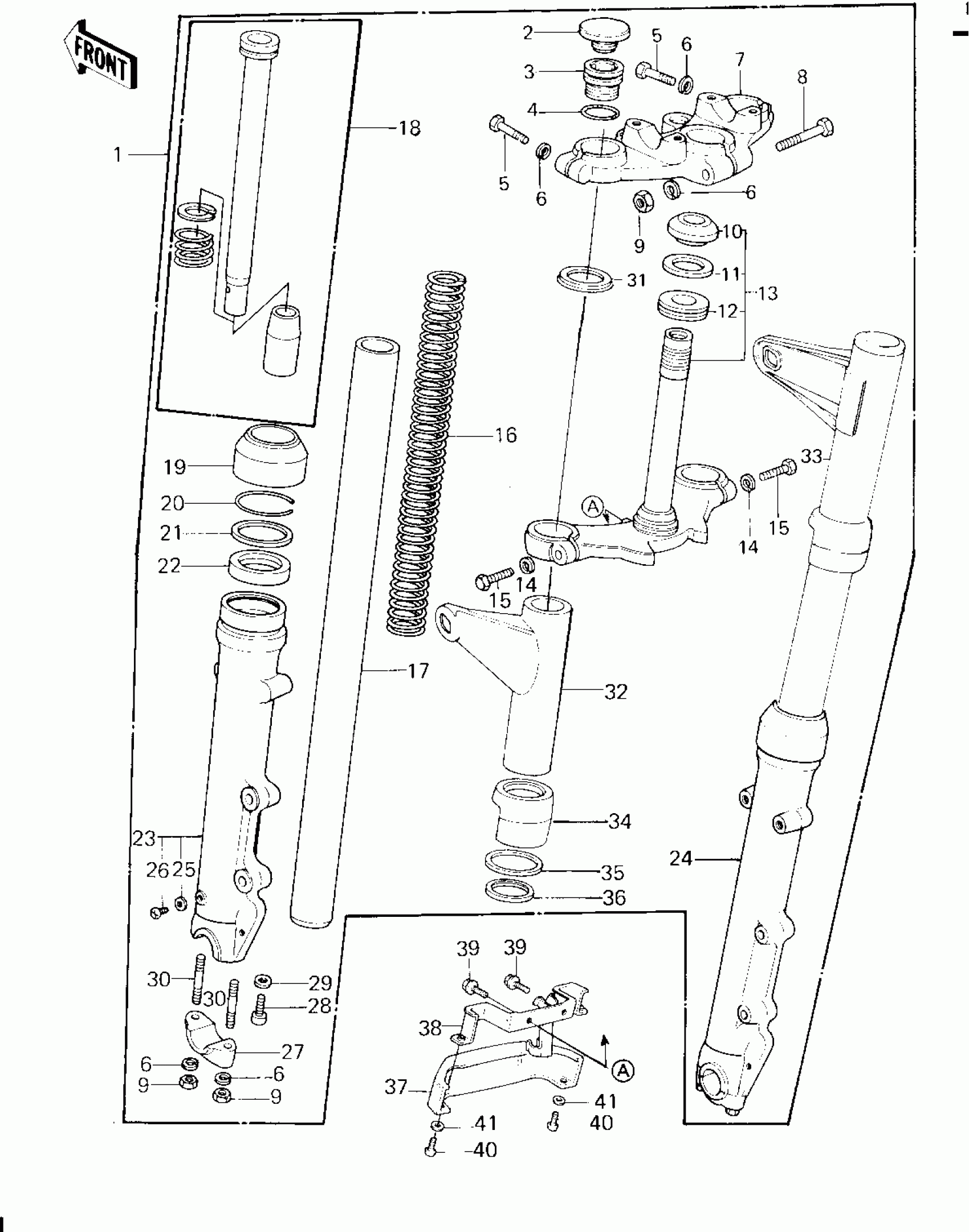

Kawasaki KZ650-F1 FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-1092

$957.77

2

CAP,RUBBER

11012-1017

$8.74

3

CAP,FORK SPRING

44029-1003

Unavailable

4

"O" RING,FORK TOP

92055-1009

Unavailable

5

BOLT-HEX HEAD.8M/M

44041-045

$24.03

6

WASHER SPRING 8MM

461F0800

Unavailable

7

HEAD,STEERING STEM

44039-076

$218.21

8

BOLT-STEERING STEM HD

44041-042

Unavailable

9

NUT,LOCK,8MM

92015-1124

$4.10

10

RACE,STEERING STEM BEARING

92047-012

$14.20

11

WASHER,30.5X50X0.6

92022-231

$4.17

12

SEAL-OIL,STEERING STEM

92056-003

$6.75

13

STEM,STEERING

44037-107

$461.58

14

WASHER-SPRING,12MM

461F1200

Unavailable

15

BOLT-HEX HEAD,12X36

92003-064

$24.03

16

SPRING,FORK

44026-1040

$69.49

17

TUBE,FORK INNER

44013-1027

$331.73

18

CYLINDER-FORK

44022-1011

$82.78

19

DUST SHEILD,FORK

44010-032

$35.15

20

CIRCLIP-OIL SEAL FIT

44044-012

$31.04

21

WASHER-OIL SEAL FIT

44043-044

$12.86

22

SEAL-OIL,FORK OUTER PIPE

92049-1216

$18.72

23

TUBE,LH,FORK OUTER

44005-1031

$368.91

24

TUBE,RH,FORK OUTER

44006-1031

$261.29

25

GASKET,FORK DRAIN PLUG

44045-002

$3.95

26

SCREW PAN HEAD 4X8

220B0408

Unavailable

27

HOLDER,FRONT AXLE

44063-014

Unavailable

28

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

29

GASKET

44045-057

$3.71

30

STUD,8X35

92004-1009

$4.80

31

WASHER,FORK COVER

44064-005

Unavailable

32

COVER,L.H.-FORK

44033-1017

$203.76

33

COVER,R.H,FORK

44033-1018

$110.71

34

GUIDE,FORK COVER

44064-025

Unavailable

35

WASHER,FORK COU GUID

44064-008

$11.07

36

GASKET,FORK COVER

44045-038

Unavailable

37

COVER,FORK

44033-1042

Unavailable

38

BRACKET,FORK COVER

11034-1602

Unavailable

39

BELT,FLANGED,6X12

131B0612

Unavailable

40

SCREW PAN HEAD 4X10

220B0410

Unavailable

41

WASHER PLAIN 4MM

410B0400

Unavailable
