1980 Kawasaki KZ650-F1 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1980 Kawasaki KZ650-F1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

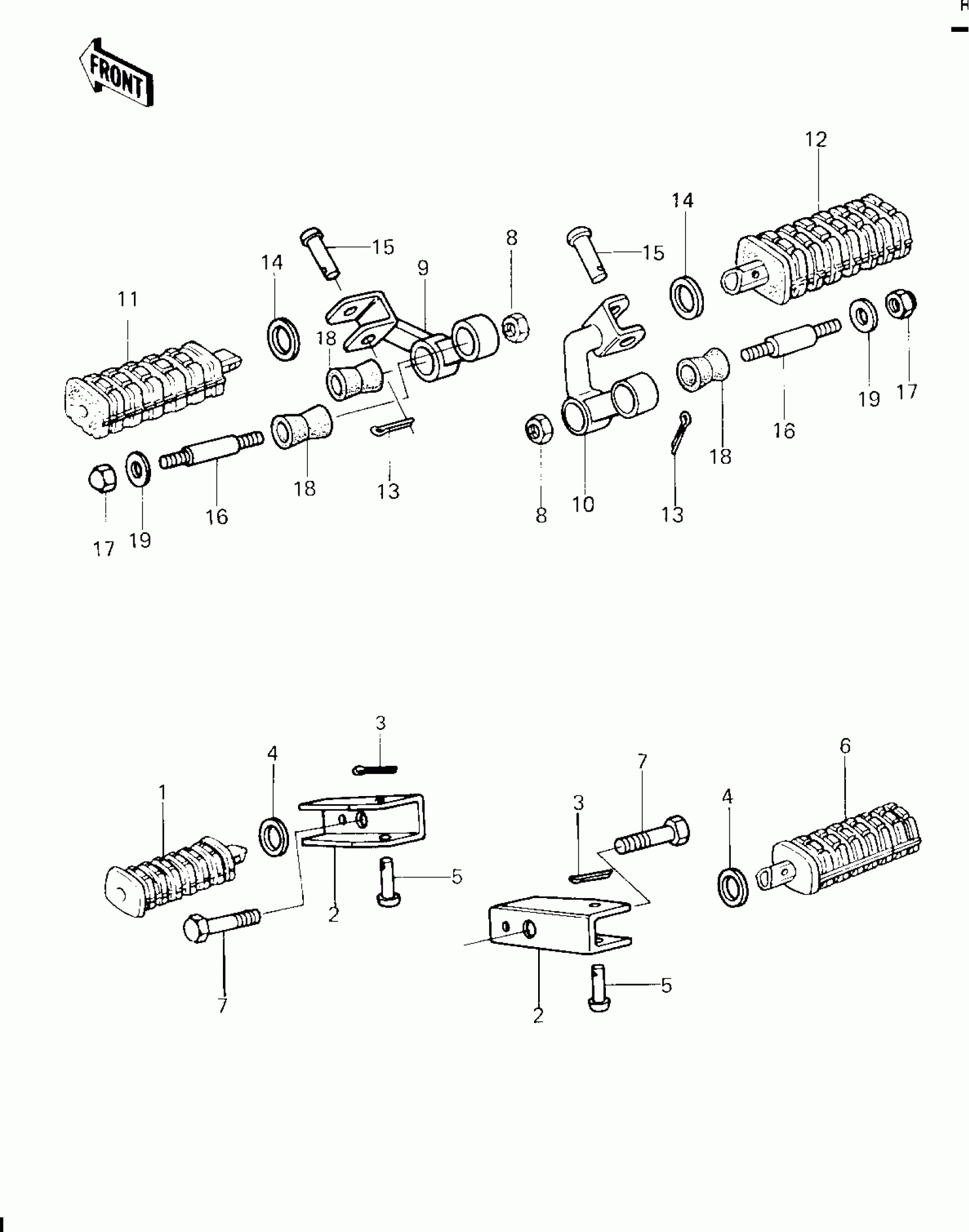

1980 Kawasaki KZ650-F1 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEP,RR,LH

34028-1009

1
Out of stock

2

BRACKET,REAR FOOTREST

34036-002

1
Out of stock

3

1

$1.03

In stock

4

WASHER,22.5X30X2.6

92022-181

1
Out of stock

5

PIN,6X28

92043-1464

1

$6.44

In stock

6

STEP,RR,RH

34028-1010

1
Out of stock

7

BOLT,HEX HEAD,10X40

92003-213

1
Out of stock

8

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

9

HOLDER,STEP,L.H.

34003-1012

1
Out of stock

10

HOLDER,STEP,R.H.

34003-1015

1
Out of stock

11

STEP,FOOTREST,FRONT,

34028-1007

1
Out of stock

12

STEP,FOOTREST,FRONT,

34028-1008

1
Out of stock

13

PIN COTTER 2.5X16

550D2516

1
Out of stock

14

WASHER,25X36X2.3

92022-250

1
Out of stock

15

PIN,8X31

92043-080

1

$5.03

In stock

16

STUD,FOOTREST BAR FI

92004-048

1
Out of stock

17

1

$11.78

In stock

18

DAMPER RUBBER,FOOTRE

92075-293

1
Out of stock

19

CAP,FOOTRESTBAR

92102-010

1

$6.74

In stock
