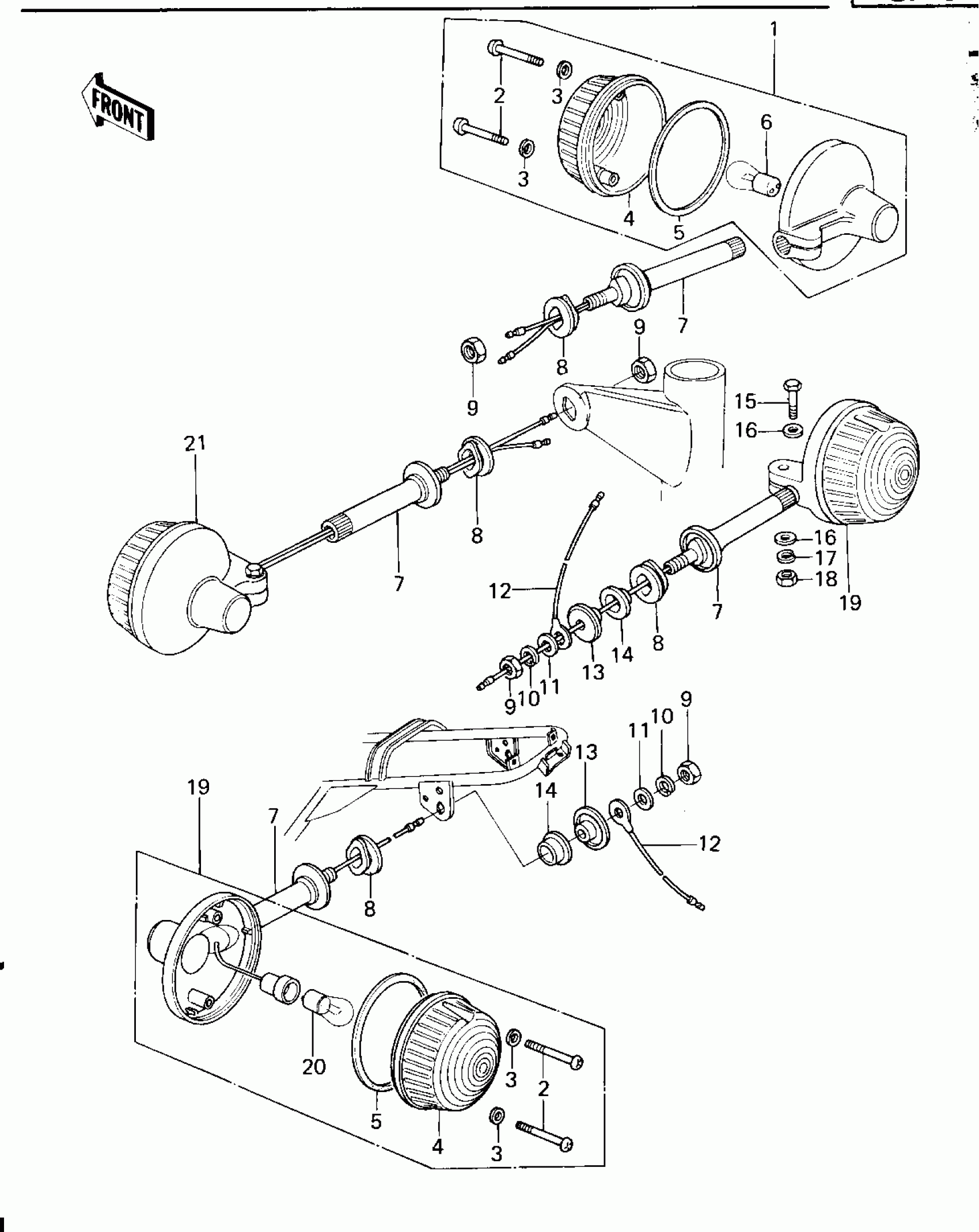

Kawasaki KZ650-B3 TURN SIGNALS Diagram

#

Description
Price

1

LAMP-TURN SIGNAL

23040-029

$153.16

1

LAMP-SIGNAL,RH

23040-1005

$90.08

2

SCREW-PAN HEAD,4X35

220E0435A

$7.93

3

WASHER,PLAIN,4MM

23058-002

$2.49

4

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$10.96

5

GASKET,TURN SIGNAL LAMP

23050-002

$4.97

6

BULB,12V 32CP(23W)

92069-055

$5.18

6

BULB,12V 32/3CP(23/8W)

92069-060

$9.70

7

BRACKET,TURN SIGNAL.L

23051-053

Unavailable

8

DAMPER,LAMP

92075-128

$5.86

9

NUT-HEX-FINE,10MM

315B1000

Unavailable

10

WASHER SPRING 10MM

461F1000

Unavailable

11

WASHER,10.5X20X1

92022-239

$3.92

12

LEAD WIRE,SIGNAL LAMP

26011-063

$8.60

13

COLLAR

92027-147

$15.20

14

DAMPER RUBBER,SIG LM

92075-158

$5.47

15

BOLT-UPSET

112G0630

Unavailable

16

WASHER PLAIN 6MM

411B0600

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

NUT 6MM

311B0600

Unavailable

19

LAMP-TURN SIGNAL

23040-029

$153.16

20

BULB,12V 32CP(23W)

92069-055

$5.18

21

LAMP-TURN SIGNAL

23040-029

$153.16

21

LAMP-SIGNAL,LH

23040-1006

$90.08
