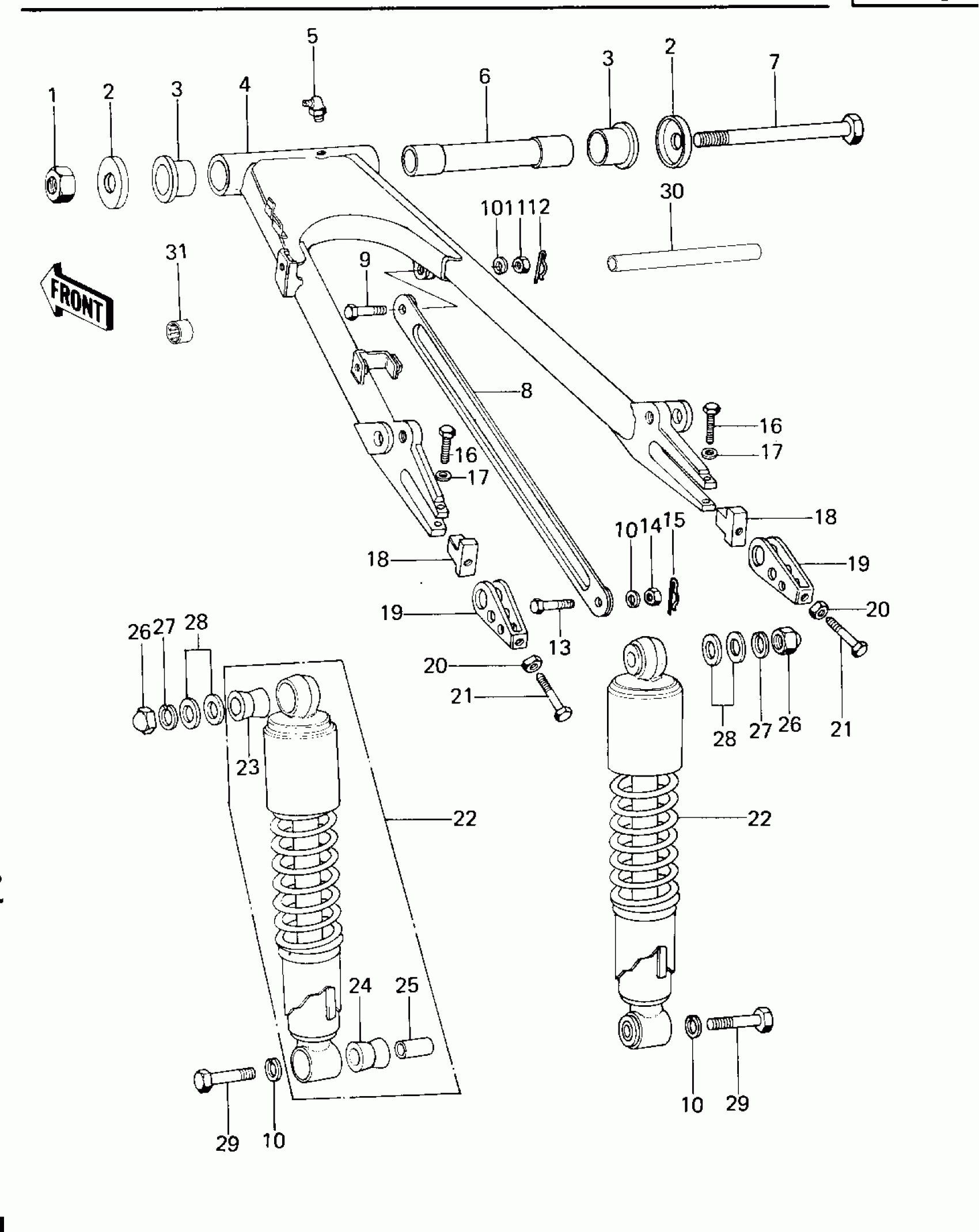

Kawasaki KZ650-B3 SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

1

NUT-SELF LOCKING

92019-012

$25.70

2

CAP,SWING ARM

33035-008

Unavailable

2

CAP,SWING ARM

33035-009

$17.85

3

BUSHING-SWING ARM

33033-009

$98.46

4

SWING ARM

33001-089

$186.82

4

ARM-COMP-SWING

33001-1078

$243.69

5

GREASE NIPPLE

92005-002

Unavailable

6

SLEEVE,SWING ARM

33034-024

Unavailable

7

SHAFT,SWING ARM

33032-050

Unavailable

8

TORQUE LINK-REAR BRK

43007-027

$24.36

9

BOLT,10X29

92003-096

Unavailable

10

WASHER SPRING 10MM

461F1000

Unavailable

11

NUT-HEX-FINE,10MM

314B1000

Unavailable

12

PIN-SNAP,8MM

554A0800

Unavailable

13

BOLT,10X35

92003-034

$13.21

14

NUT-HEX-FINE,10MM

315B1000

Unavailable

15

PIN-SNAP,8MM

554A0800

Unavailable

16

BOLT,FLANGED,8X35

92001-1577

Unavailable

17

WASHER SPRING 8MM

461F0800

Unavailable

18

STOPPER,CHAIN ADJUST

33044-002

Unavailable

19

ADJUSTER,CHAIN

33040-056

Unavailable

20

NUT 8MM

312B0800

Unavailable

21

BOLT,8X50

92001-1399

$7.32

22

SHOCK ABSBR RR

45014-117

$495.51

23

DAMPER,SHOCKABSORBER

45017-015

$10.00

24

COLLAR,SHOCKABSORBER

45016-008

$9.91

25

DAMPER,SHOCKABSORBER

45017-012

$14.90

26

NUT,CAP,12MM

92020-014

$9.45

27

WASHER-SPRING,12MM

461F1200

Unavailable

28

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

29

BOLT HEX HEAD 10X35

113N1035

Unavailable

30

SLEEVE,SWING ARM

42036-1012

Unavailable

31

BEARING-NEEDLE,HK2216

92046-1115

Unavailable
