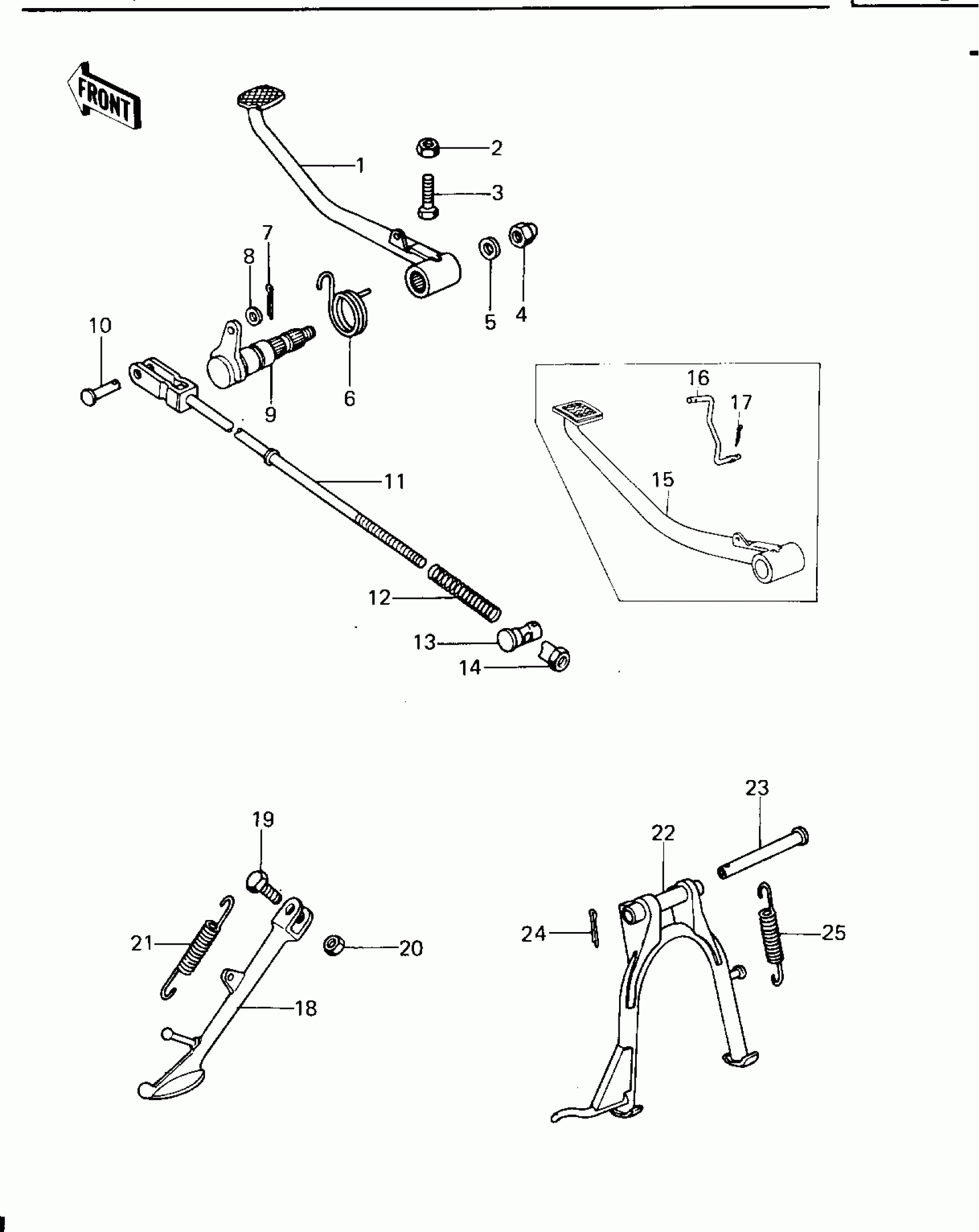

Kawasaki KZ650-B3 STANDS/BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL BRAKE

43001-1009

$200.73

2

NUT 6MM

311B0600

Unavailable

3

BOLT-UPSET,6X20

112G0620

Unavailable

4

NUT,CAP AND LOCK,8MM

92019-013

$14.88

5

WASHER,8.5X20X1.6

92022-1561

$4.31

6

SPRING,BRAKE PEDAL

43005-022

Unavailable

7

PIN COTTER 2.0X15

550D2015

Unavailable

8

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

9

SHAFT,BRAKE PEDAL

43004-012

$89.05

10

PIN,6X17

92043-064

$4.69

11

ROD-BRAKE

43011-009

Unavailable

12

SPRING,BRAKE ROD

43012-001

$4.65

13

PIN,BRAKE ROD

92043-065

$5.57

14

NUT,BRAKE ROD

92015-042

$6.22

15

PEDAL BRAKE

43001-1009

$200.73

16

HOOK, BRAKE SWITCH

27012-1003

Unavailable

17

PIN COTTER 1.6X10

550D1610

Unavailable

18

STAND-SIDE

34024-1103

$73.07

19

BOLT,SIDE STAND

92003-079

$11.79

20

NUT-HEX-FINE,10MM

314B1000

Unavailable

21

SPRING,STAND

34025-005

$5.85

22

STAND-MAIN

34011-1041

$86.31

23

SHAFT-STAND,CNT

34019-015

$15.80

24

PIN-COTTER,3.0X30

550D3030

$1.73

25

SPRING,STAND,CNT

34023-016

$16.50
