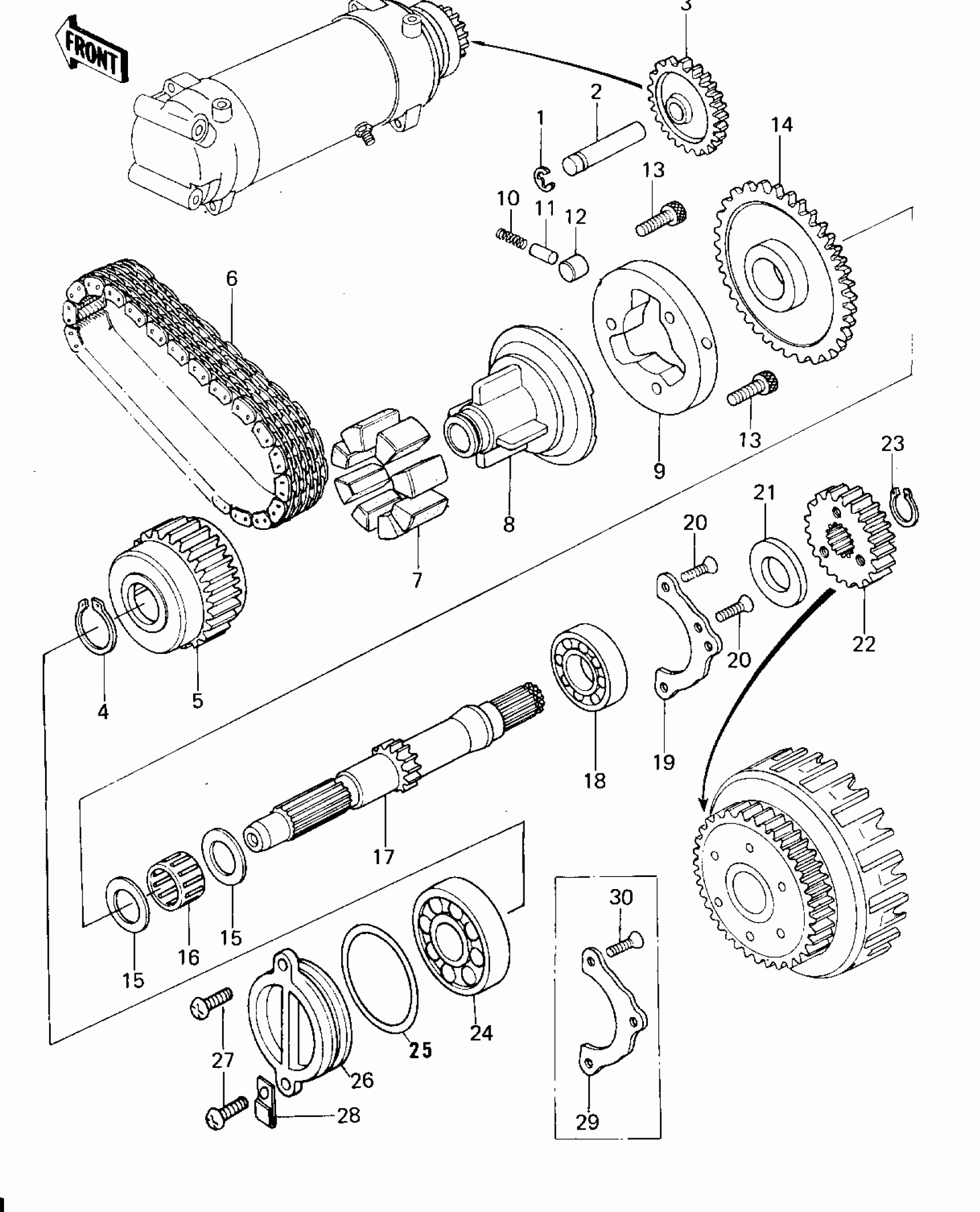

Kawasaki KZ650-B3 SECONDARY SHAFT/STARTER CLUTCH Diagram

#

Description
Price

1

CIRCLIP 12MM

482K0200

Unavailable

2

SHAFT,IDLE GEAR

21143-003

$14.64

3

GEAR-SPUR,IDLE,29T

21167-004

$101.58

4

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

5

COUPLING,OUTER,SECONDARY SHAFT

13252-001

$276.49

6

CHAIN,63-139X52L(TUBAKIMOTO)

13122-007

$388.56

7

DAMPER RUBBER

13098-029

Unavailable

8

COUPLING,INNER,SECONDARY SHAFT

13253-001

Unavailable

9

CLUTCH-ASSY-ONEWAY

13193-1012

Unavailable

10

SPRING

92081-110

$4.76

11

PIN

92043-087

$12.76

12

ROLLER,15X13

92122-004

$11.07

13

BOLT-SOCKET,8X12

120P0812

Unavailable

14

SPROCKET,STARTER,58T

12046-1032

$104.98

15

SPACER,STARTER CLUTC

92026-117

Unavailable

16

BEARING-NEEDLE,K253017

92046-056

$23.42

17

SHAFT,SECONDARY

13127-054

Unavailable

18

BEARING-BALL,#6305C3

601B6305

$25.78

19

PLATE-POSITION,SECONDARY SHAFT

14014-1007

Unavailable

20

SCREW-CSK-CROS,6X20

221B0620

$1.66

21

COLLAR,23X46X4.5

92027-263

$6.15

22

GEAR,SECONDARY SHAFT,29T

13121-037

Unavailable

23

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

24

BEARING BALL #6304

601B6304

$36.85

25

O RING,46MM

670B3046

$5.96

26

PLUG,SECONDARY SHAFT,52X19

92066-1019

$19.85

27

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

28

CLAMP,WIRING HARNESS

21126-008

$4.73

29

PLATE-POSITION,SECONDARY SHAFT

14014-1007

Unavailable

30

SCREW-CSK-CROS,6X20

221B0620

$1.66
