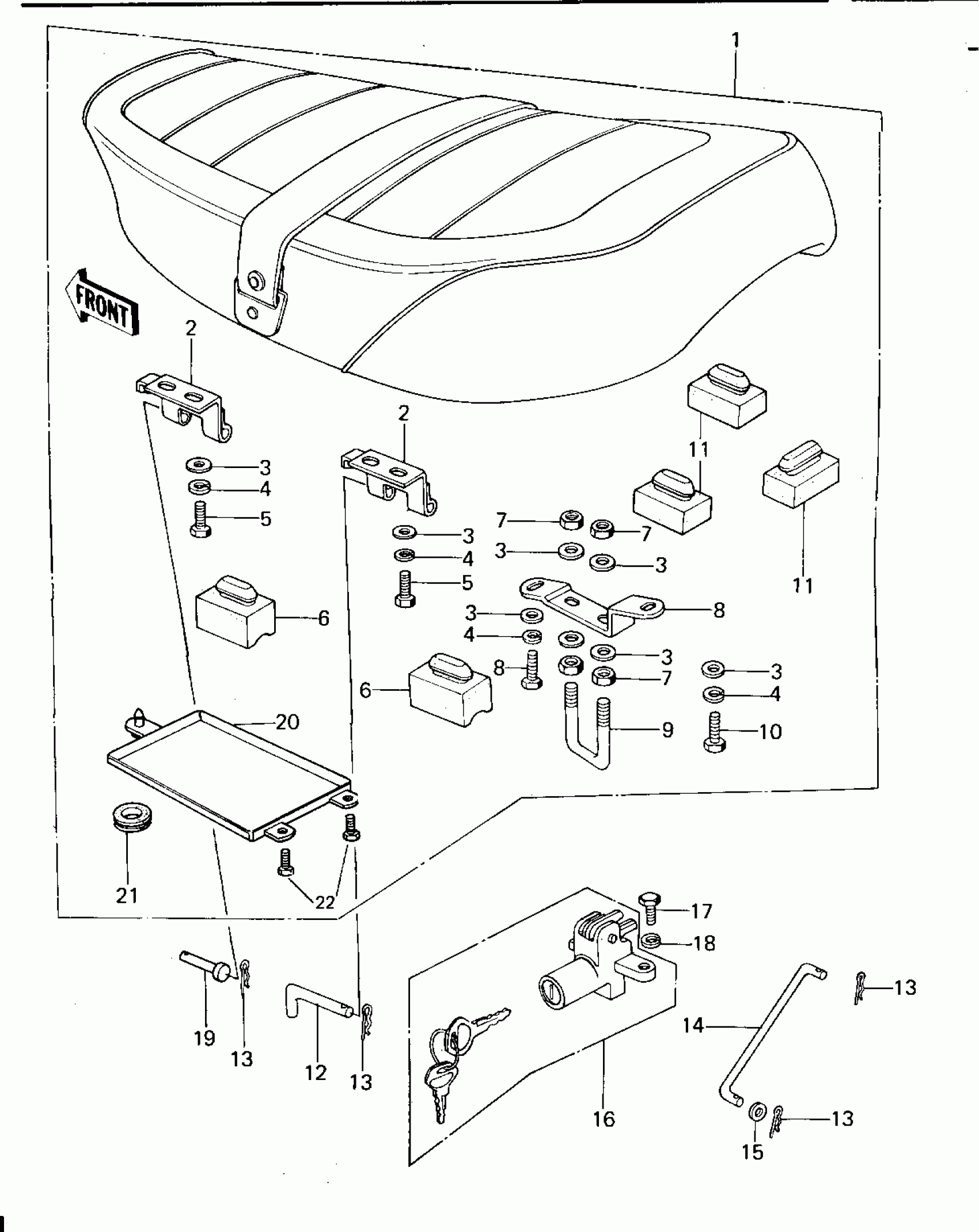

Kawasaki KZ650-B3 SEAT Diagram

#

Description
Price

1

SEAT-ASSY,DUAL,W/BAND

53001-1194

Unavailable

1

SEAT-ASSY,DUAL,W/BAND

53001-1194

Unavailable

1

SEAT-ASSY,DUAL,W/BAND

53001-1194

Unavailable

2

HINGE,FRONT

53009-031

Unavailable

3

WASHER PLAIN 6MM

411B0600

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

BOLT-UPSET,6X16

112G0616

Unavailable

6

DAMPER RUBBER-SEAT

92075-156

$11.13

7

NUT 6MM

311B0600

Unavailable

8

BRACKET,SEAT CATCH

53058-004

Unavailable

9

HOOK,SEAT

53056-002

$16.66

10

BOLT-UPSET 6X14

112B0614

$1.49

11

DAMPER

92075-099

$5.52

12

PIN,DUAL SEAT PIVOT

53011-008

Unavailable

13

COTTER PIN

92041-003

$5.72

14

STOPPER,SEAT

53054-006

Unavailable

15

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

16

LOCK-ASSY,SEAT

27016-5010

Unavailable

16

LOCK-ASSY,SEAT

27016-5010

Unavailable

17

BOLT-UPSET,6X12

112G0612

$1.49

18

WASHER SPRING 6MM

461F0600

Unavailable

19

PIN,6X48

53011-002

$5.96

20

CASE,MANUAL

32099-011

$16.66

21

GROMMET

92071-056

$4.26

22

BOLT HEX HEAD 5X10

110B0510

Unavailable
