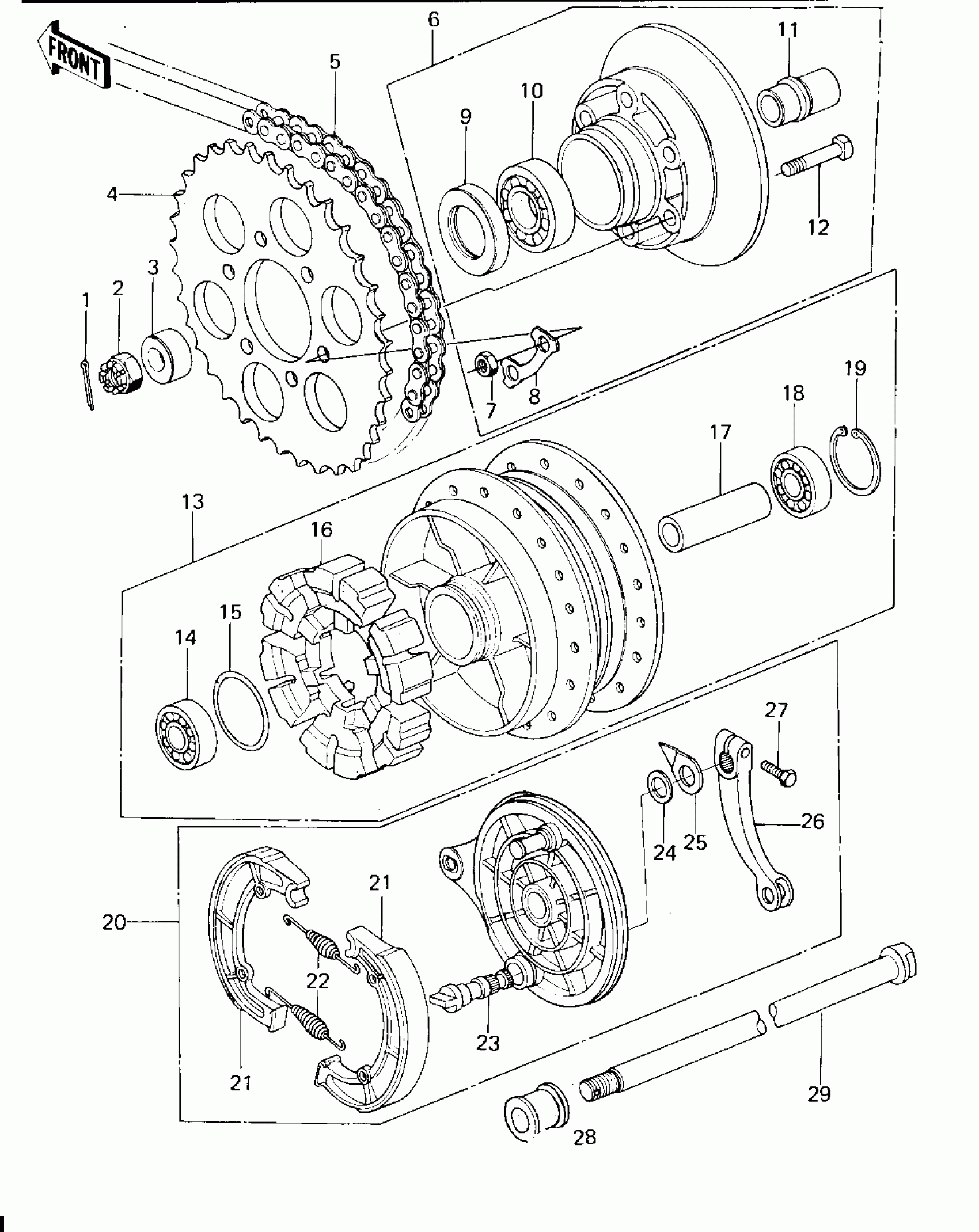

Kawasaki KZ650-B3 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

PIN-COTTER,4.0X35

550D4035

$1.50

2

NUT,16MM

92015-055

Unavailable

3

COLLAR,REAR AXLE,L.H.

42032-067

Unavailable

4

REAR SPROCKET,42T

42041-165

Unavailable

5

CHAIN,DRIVE,EK50MV-OX102L

92057-1232

Unavailable

6

COUPLING ASSY,REAR HB

42008-032

$171.97

7

NUT,10MM

42045-005

$7.98

8

WASHER LOCK

92088-007

$11.42

9

OIL,SEAL,#38629

92050-076

Unavailable

10

BEARING-BALL,#6305C3

601B6305

$25.78

11

SLEEVE,REAR HUB COUPL

42036-026

Unavailable

12

BOLT-REAR SPROCKET

92003-087

Unavailable

13

DRUM ASSY,REAR BRAKE

42005-051

$438.76

14

BEARING-BALL,#6303C3

601B6303

$8.29

15

O RING,55MM

671B2555

$6.22

16

DAMPER,REAR HUB SHOCK

42014-026

Unavailable

17

SPACER,REAR HUB BRG

42010-033

Unavailable

18

BEARING-BALL

601B6303U

$26.36

19

RING-SNAP,47MM

92033-1042

$4.22

20

PANEL-ASY,RR BRK

41035-1056

$359.81

21

SHOE,BRAKE

42019-012

$39.45

22

SPRING,BRAKE SHOE

41049-012

$9.49

23

CAM-BRAKE

41050-017

Unavailable

24

SEAL,BRAKE CAM

41051-003

$4.26

25

INDICATOR,BRAKE SHOE

41085-004

$14.51

26

LEVER-BRAKE CAM

42029-039

Unavailable

27

BOLT HEX HEAD 8X28

114G0828

Unavailable

28

COLLAR REAR AXLE

42032-017

Unavailable

29

AXLE,RR

41068-1086

$73.40
