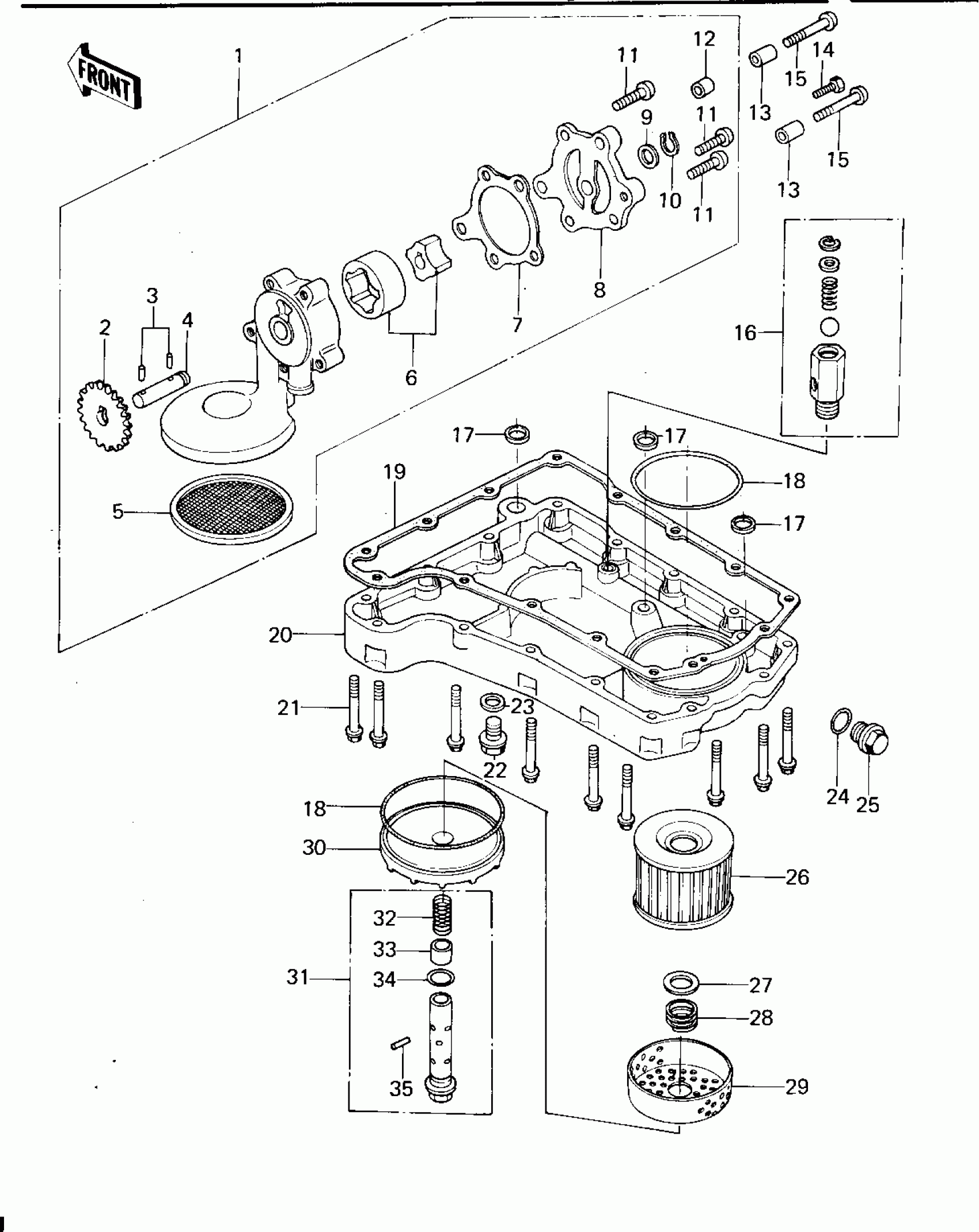

Kawasaki KZ650-B3 OIL PUMP/OIL FILTER/OIL PAN Diagram

#

Description
Price

1

PUMP-ASSY-OIL

16082-064

Unavailable

2

GEAR,OIL PUMP,57T

16085-025

Unavailable

3

PIN,DOWEL,4X12.8

92042-041

$6.57

4

SHAFT,OIL PUMP

16086-004

Unavailable

5

FILTER,OIL PUMP

16111-004

$44.36

6

ROTOR-PUMP

16154-003

$87.95

7

GASKET,OIL PUMP COVER

16145-004

$2.49

8

COVER-PUMP

16142-005

$38.50

9

WASHER,11.2X15X1

92022-311

$3.92

10

CIRCLIP-TYPE-C,11MM

480J1100

$1.49

11

SCREW PAN HEAD 6X22

220B0622

Unavailable

12

PIN,DOWEL,8X10

92043-1302

$1.49

13

PIN,DOWEL,8X28

92042-050

$4.31

14

BOLT,FLANGED,6X45

92001-165

$5.24

15

SCREW-CSK-CROS,6X50

221B0650

Unavailable

16

VALVE-ASSY-RELIEF

16130-1001

$41.16

16

VALVE-ASSY-RELIEF

16130-1001

$41.16

17

RING-O,19.5MM

92055-077

$6.57

18

O RING,90MM

671B2590

$9.91

19

GASKET,OIL PAN

11009-1983

$32.65

20

PAN-OIL

49034-5011

$157.22

21

BOLT,FLANGED,6X25

130G0625

Unavailable

22

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

23

GASKET,12X22X2

92065-097

$1.49

24

RING-O,20X2

92055-1146

$8.58

25

PLUG,18X9

92066-066

$8.47

26

ELEMENT-OIL FILTER

16099-003

$12.20

27

WASHER,20.5X30X0.5,STEEL

92022-144

$7.10

27

WASHER,20.5X30X1

92022-1012

$4.34

28

SPRING,OIL FILTER

92081-1018

$4.65

28

SPRING,OIL FILTER

92081-1018

$4.65

29

PLATE,OIL FILTER

13169-1110

$7.62

30

COVER,OIL FILTER

16101-004

$37.90

31

VALVE,OIL FILTER

16126-1108

$41.98

32

SPRING

92081-133

Unavailable

33

PISTON

92136-001

Unavailable

34

O RING,16MM

670B2016

$1.49

35

PIN,SPRING,2X20

92043-111

$6.27
