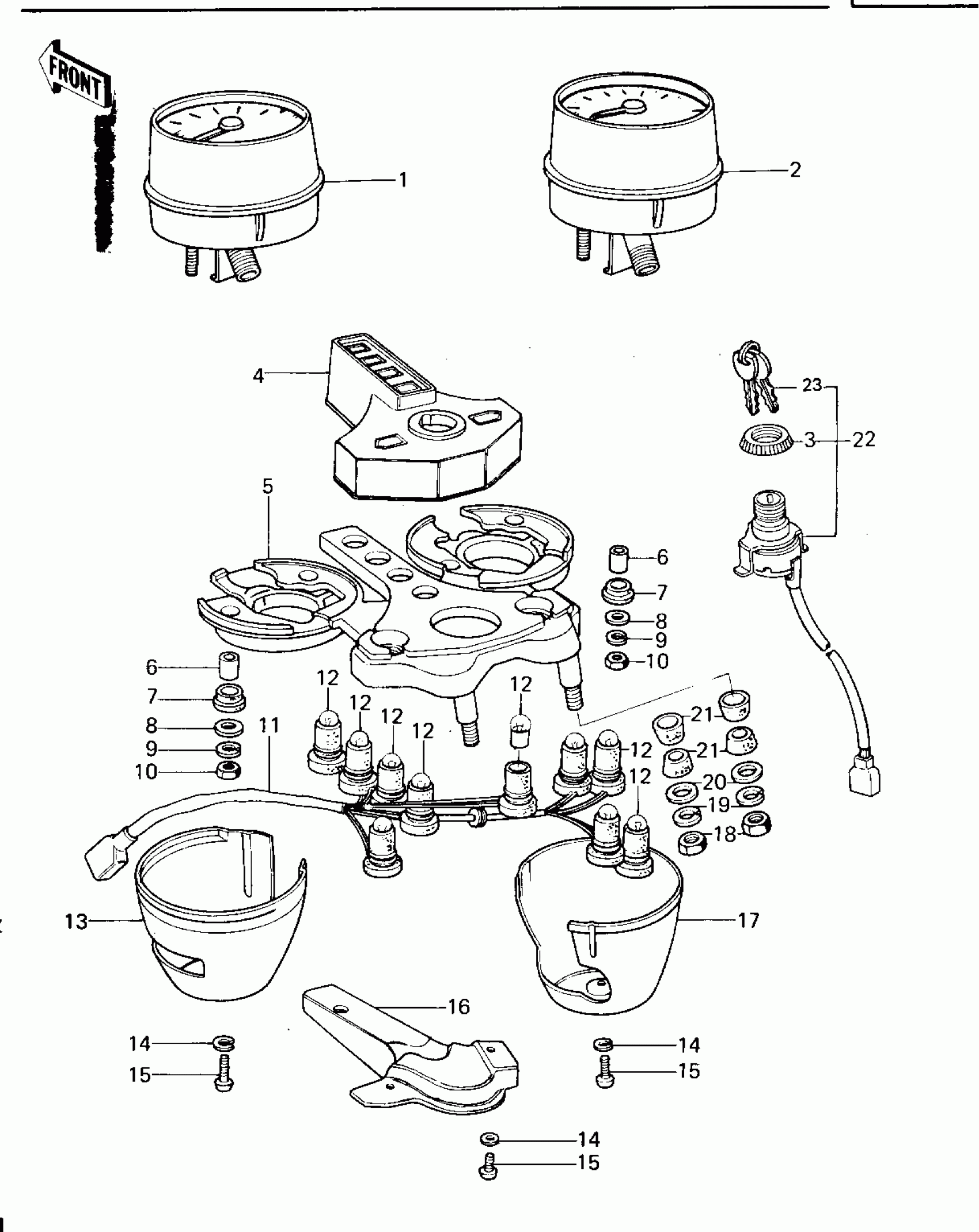

Kawasaki KZ650-B3 METERS/IGNITION SWITCH Diagram

#

Description
Price

1

SPEEDOMETER,MPH

25006-052

$529.56

1

SPEEDOMETER ASSY,KPH (Canada)

25005-1013

$577.34

1

SPEEDO ASSY,KPH (Canada)

25006-054

$577.34

1

SPEEDOMETER,MPH

25005-1037

$607.99

1

SPEEDOMETER,MPH

25005-1037

$607.99

2

TACHOMETER

25027-011

$458.60

2

TACHOMETER ASSY

25015-1011

$480.38

3

NUT,IGNITION SW LOCK

27007-004

Unavailable

4

COVER,METER,INDICATE

25023-015

$220.31

5

BRACKET,METER

25008-045

Unavailable

6

COLLAR,METER

92027-211

Unavailable

7

RUBBER,METER

92075-172

$11.52

8

WASHER,PLAIN,5MM

92022-241

Unavailable

9

WASHER SPRING 5MM

461F0500

Unavailable

10

NUT-HEX,5MM

312B0500

Unavailable

11

SOCKET,SPEEDOMETER

25011-049

$189.46

12

SOCKET,SPEEDOMETER

25011-049

$189.46

13

COVER,SPEEDOMETER

25012-010

$140.34

14

WASHER SPRING 3MM

461F0300

Unavailable

15

SCREW-PAN-CROS,3X8

220B0308

$0.48

16

COVER,METER BRACKET

25024-006

$28.37

17

COVER,TACHOMETER

25012-011

Unavailable

18

NUT,8MM

311B0800

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

WASHER PLAIN 8MM

411B0800

Unavailable

21

DAMPER RUBBER

92075-080

$10.35

22

SWITCH,IGNITION

27005-083

$106.59

22

SWITCH ASSY,IGNITION

27005-5001

Unavailable

22

SWITCH ASSY,IGNITION

27005-5007

$129.44

23

KEY SET,#801

27008-068-01

$31.10

23

KEY SET,#845

27008-068-45

$26.98

23

KEY,BLANK

27008-1014

Unavailable

23

KEY-LOCK,BLANK

27008-1103

Unavailable
