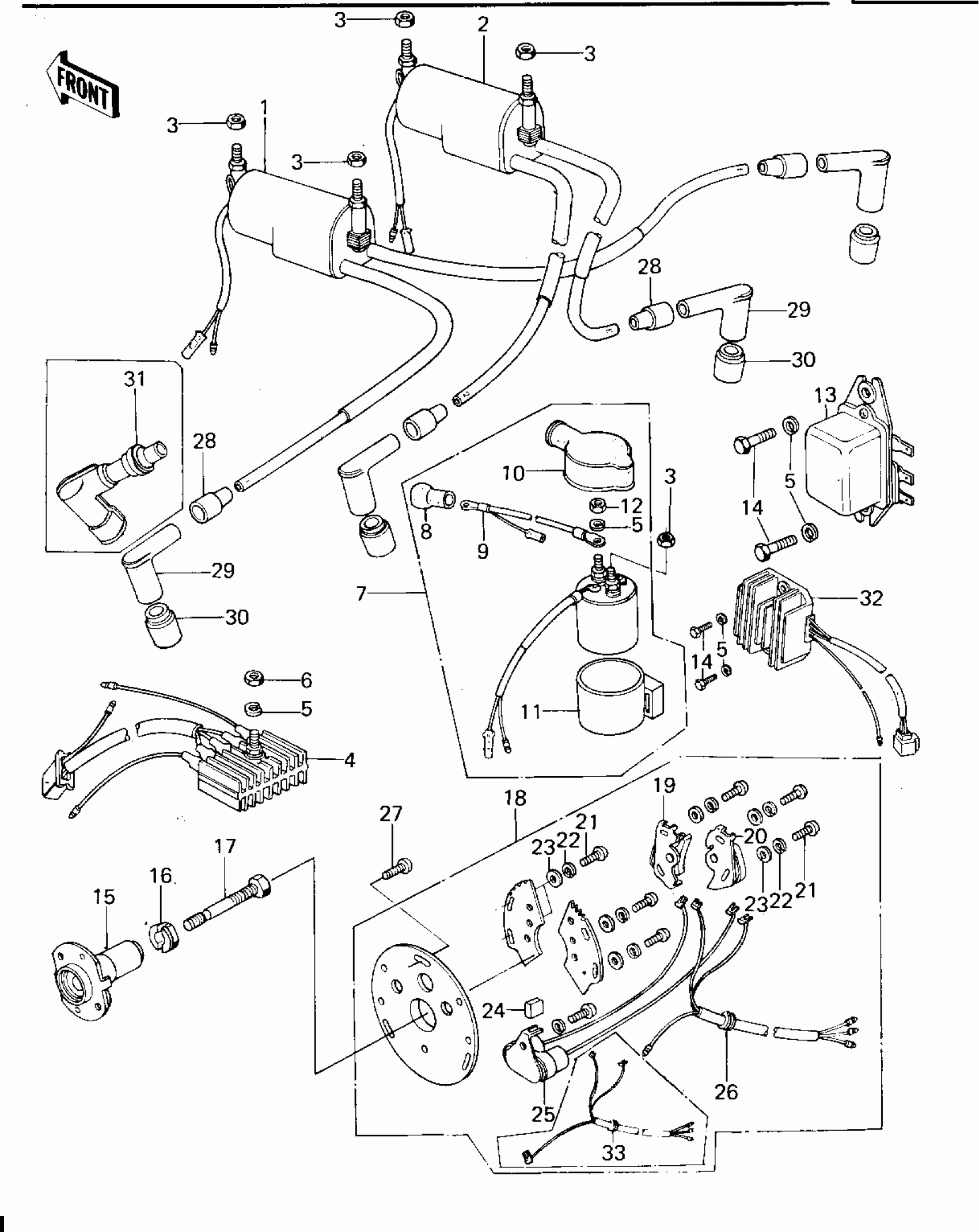

Kawasaki KZ650-B3 IGNITION/REGULATOR/RECTIFIER Diagram

#

Description
Price

1

COIL,IGNITION,#1.4

21121-1001

Unavailable

1

COIL,IGNITION,#1.4

21121-1001

Unavailable

2

COIL,IGNITION,#2.3

21121-1002

$302.55

2

COIL,IGNITION,#2.3

21121-1002

$302.55

3

NUT,LOCK 6MM

92017-014

$7.51

4

UNAVAILABLE IN PRICE BOOK

21061-031

$304.25

5

WASHER SPRING 6MM

461F0600

Unavailable

6

NUT 6MM

311B0600

Unavailable

7

SWITCH,MAGNETIC

27010-1050

Unavailable

8

GROMMET,MAGNETIC SWITCH

21017-023

$16.44

9

WIRE-LEAD,MAGNETIC SWITCH

26011-1128

$65.61

10

CAP,MAGNETIC SWITCH

21141-004

Unavailable

11

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

12

NUT 6MM

312B0600

Unavailable

13

UNAVAILABLE IN PRICE BOOK

21066-018

Unavailable

14

BOLT-UPSET

112G0618

Unavailable

14

BOLT-UPSET,6X16

112G0616

Unavailable

15

ADVANCER,AUTMATC TMNG

21148-011

Unavailable

16

WASHER,BREAKER GOVERNOR

92022-244

$14.09

17

BOLT,8X63

92001-1397

$5.43

18

BREAKER ASSY,CONTACT

21008-1012

Unavailable

18

BREAKER ASSY,CONTACT

21008-1012

Unavailable

19

BREAKER,CONTACT

21008-028

$71.65

20

BREAKER,CONTACT

21008-027

$71.65

21

SCREW PAN HEAD 4X8

220B0408

Unavailable

22

WASHER SPRING 4MM

461F0400

Unavailable

23

WASHER PLAIN 4MM

410B0400

Unavailable

24

BRUSH,OIL

21019-005

Unavailable

25

CONDENSER

21013-037

Unavailable

26

WIRING HARNESS,BREAKR

26001-1081

$41.12

27

SCREW-PAN-CROS

220B0512

$0.42

28

GROMMET,HIGH TENSION

21132-005

$4.26

29

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

30

GROMMET,PLUG CAP

21131-004

$10.97

31

CAP-ASSY-PLUG

21160-005

$51.24

32

REGULATOR

21066-029

$496.99

33

WIRING HARNESS,BREAKR

26001-1081

$41.12
