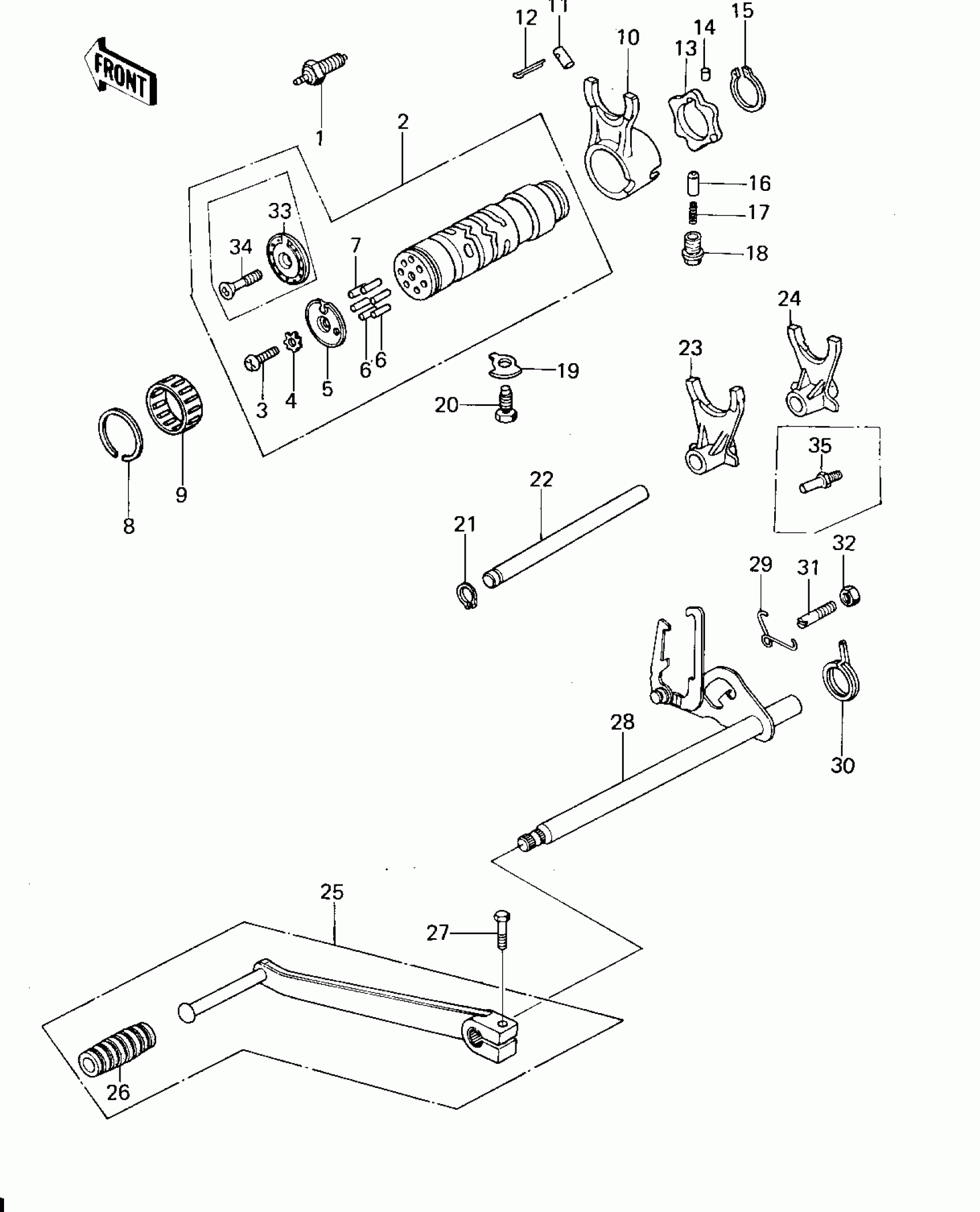

Kawasaki KZ650-B3 GEAR CHANGE MECHANISM Diagram

#

Description
Price

1

SWITCH,NEUTRAL

13151-5002

Unavailable

2

DRUM ASSY,SHIFT

13239-1005

Unavailable

2

DRUM ASSY,SHIFT

13239-1005

Unavailable

2

DRUM-ASSY-CHANGE

13239-1069

Unavailable

2

DRUM-ASSY-CHANGE

13239-1069

Unavailable

3

SCREW-PAN-CROS,6X14

220B0614

$1.08

4

WASHER LOCK 6MM

464G0600

Unavailable

5

PLATE,SHIFT DRUM PIN

13142-020

Unavailable

6

PIN,DOWEL,4X13.8

92042-030

$3.92

7

PIN,DOWEL,4X15.8

92042-014

$1.49

8

RING-SNAP,37MM

92033-035

$7.55

9

BEARING-NEEDLE,37BTM4312

92046-051

$25.09

10

FORK-SHIFT,4TH&TOP

13140-1009

$109.81

10

FORK-SHIFT,4TH&TOP

13140-1009

$109.81

11

PIN,DOWEL,8X18

92042-021

$11.51

12

PIN-COTTER,3.0X20

550D3020

$1.27

13

CAM-CHANGE DRUM

13145-1058

$22.72

14

ROLLER,4X6

610A0406

$4.31

15

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

16

PIN

92043-076

$11.71

17

SPRING

92081-112

$6.16

18

BOLT,FLANGED,16X16.5

92001-131

$17.78

19

WASHER,LOCK,10MM

92024-074

$4.38

20

BOLT,10X26

92001-174

$8.19

21

CIRCLIP-TYPE-C,12MM

480J1200

$1.49

22

ROD-SHIFT

49047-5003

$22.17

23

FORK-SHIFT,LOW,2ND&3RD

13140-1008

$109.81

23

FORK-SHIFT,LOW,2ND&3RD

13140-1008

$109.81

24

SHIFT FORK,LOW

13140-069

Unavailable

24

FORK-SHIFT,LOW,2ND&3RD

13140-1008

$109.81

25

PEDAL ASSY,GEAR SHIFT

13242-022

Unavailable

26

DAMPER,CHANGE PEDAL

92160-1036

$3.79

27

BOLT-UPSET,6X20

112G0620

Unavailable

28

LEVER-COMP-CHANGE SHAFT

13161-042

$123.33

29

SPRING

92083-018

$9.80

30

SPRING,CHG PEDL RTRN

92083-028

$15.20

31

PIN CHANGE PEDAL SPRG

92043-057

Unavailable

32

NUT 8MM

312B0800

Unavailable

33

HOLDER,CHANGE DRUM PIN

13091-1104

$26.23

34

SCREW-CSK-CROS,6X20

221B0620

$1.66

35

BOLT,RETURN SPRING

92001-1401

$3.95
