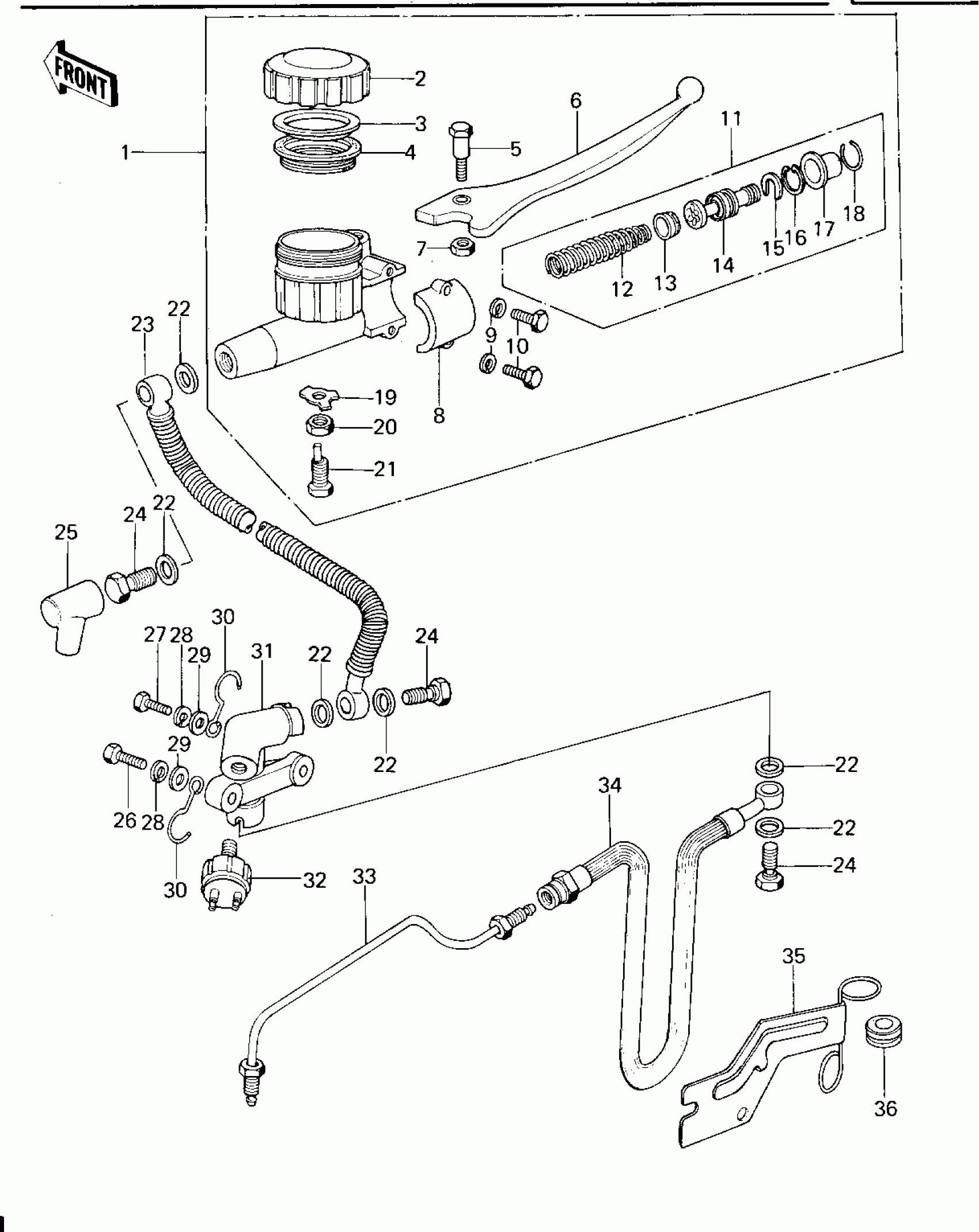

Kawasaki KZ650-B3 FRONT MASTER CYLINDER (KZ650-B1) Diagram

#

Description
Price

1

CYLINDER ASSY,MASTER

43015-032

Unavailable

2

CAP,OIL CUP

43026-003

Unavailable

3

PLATE-MASTER CYLINDE

43027-001

Unavailable

4

DIAPHRAGM

43028-001

$43.71

5

BOLT

43033-004

Unavailable

6

LEVER,FRONT BRAKE

43029-003

$105.00

7

NUT 6MM

312B0600

Unavailable

8

HOLDER-MASTER CYL

43034-001

$39.76

9

WASHER PLAIN 6MM

411B0600

Unavailable

10

BOLT HEX HEAD 6X25

110N0625

Unavailable

11

REPAIR SET-MASTER CYL

43073-001

$89.44

12

SPRING ASSY-RETURN

43018-001

$22.53

13

CUP-PRIMARY

43019-001

$15.00

14

PISTON ASSY

43072-001

Unavailable

15

STOPPER-PISTON

43022-001

Unavailable

16

CIRCLIP-TYPE-C,18MM

481J1800

$4.31

17

BOOTS

43024-001

$6.46

18

STOPPER-BOOTS

43025-001

Unavailable

19

WASHER-LOCK,8MM

43031-001

Unavailable

20

NUT,8MM

311B0800

Unavailable

21

BOLT,LEVER ADJUSTING

43030-003

Unavailable

22

WASHER,10.5X15X1.5

43067-001

$1.50

23

HOSE,M/C BRAKE

43059-032

Unavailable

24

BOLT,OIL,L=23

92002-1888

$4.10

25

BOOT,DUST

49006-1041

$11.49

26

BOLT-HEX HEAD,6X32

110N0632

Unavailable

27

BOLT,6X22

110N0622

Unavailable

28

WASHER SPRING 6MM

461F0600

Unavailable

29

WASHER PLAIN 6MM

411B0600

Unavailable

30

CLAMP,CABLE

92037-092

$9.31

31

JOINT,THREE WAY

43061-002

Unavailable

32

SWITCH-FRONT BRAKE

43065-001

Unavailable

33

PIPE,BRIDGE

43060-021

Unavailable

34

HOSE-BRAKE,L=350

43059-1262

Unavailable

35

BRACKET-BRAKE HOSE

43063-001

Unavailable

36

GROMMET-HOSE BRACKET

43064-001

Unavailable
