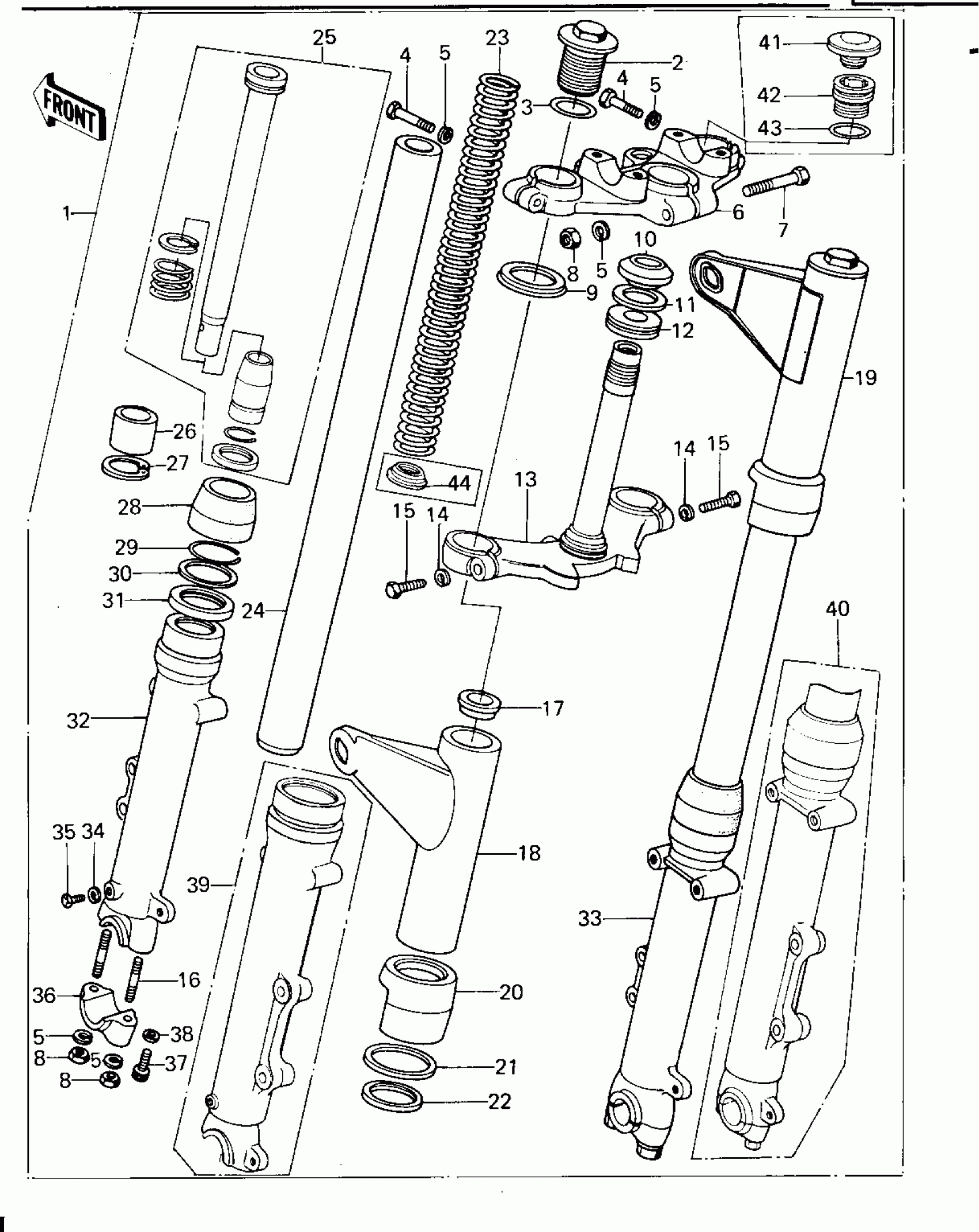

Kawasaki KZ650-B3 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY

44001-196

$540.32

1

FORK-FRONT

44001-1023

$1,352.13

2

BOLT,FORK TOP

44062-010

$43.32

3

'O' RING FORK TOP

44046-015

$8.68

4

BOLT-HEX HEAD.8M/M

44041-045

$23.27

5

WASHER SPRING 8MM

461F0800

Unavailable

6

HEAD,STEERING STEM

44039-076

$214.50

7

BOLT-STEERING STEM HD

44041-042

Unavailable

8

NUT,LOCK,8MM

92017-013

$10.35

9

WASHER,FORK COVER

44064-005

Unavailable

10

RACE,STEERING STEM BEARING

92047-012

$13.24

11

WASHER,30.5X50X0.6

92022-231

$4.69

12

SEAL-OIL,STEERING STEM

92056-003

$8.86

13

STEM,STEERING

44037-107

$453.37

14

WASHER-SPRING,12MM

461F1200

Unavailable

15

BOLT-HEX HEAD,12X36

92003-064

$23.27

16

STUD,8X35

92004-1009

$6.38

17

GUIDE,FORK SPRING

44028-043

Unavailable

18

COVER,L.H.-FORK

44033-1017

$199.56

19

COVER,R.H,FORK

44033-1018

$107.81

20

GUIDE,FORK COVER

44064-025

Unavailable

21

WASHER,FORK COU GUID

44064-008

$10.61

22

GASKET,FORK COVER

44045-038

$5.78

23

SPRING,FORK

44026-078

$48.61

23

SPRING,FORK

44026-1006

$47.80

24

TUBE,FORK INNER

44013-062

Unavailable

24

TUBE,FORK INNER

44013-1005

$270.23

25

CYLINDER-FORK

44022-040

Unavailable

25

CYLINDER-FORK

44022-1004

$82.41

26

PISTON,FORK

44018-009

Unavailable

27

CIRCLIP,FORK PISTON

44044-019

Unavailable

28

DUST SHEILD,FORK

44010-032

$39.46

29

CIRCLIP-OIL SEAL FIT

44044-012

$29.44

30

WASHER-OIL SEAL FIT

44043-044

$12.29

31

SEAL-OIL,FORK OUTER PIPE

92049-1216

$23.21

32

TUBE,LH,FORK OUTER

44005-065

$319.24

33

TUBE,RH,FORK OUTER

44006-063

$506.09

34

GASKET,FORK DRAIN PLUG

44045-002

$5.18

35

SCREW PAN HEAD 4X8

220B0408

Unavailable

36

HOLDER,FRONT AXLE

44063-014

Unavailable

37

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

38

GASKET

44045-057

$4.86

39

TUBE,LH,FORK OUTER

44005-1031

$362.15

40

TUBE,RH,FORK OUTER

44006-1031

$257.41

41

CAP,RUBBER

11012-1017

$11.49

42

SEAT-FORK SPRING

44029-1046

$20.24

43

RING-O,FORK TOP

92055-1012

$8.50

44

GUIDE,FORK SPRING

44028-1001

Unavailable
