Partiron

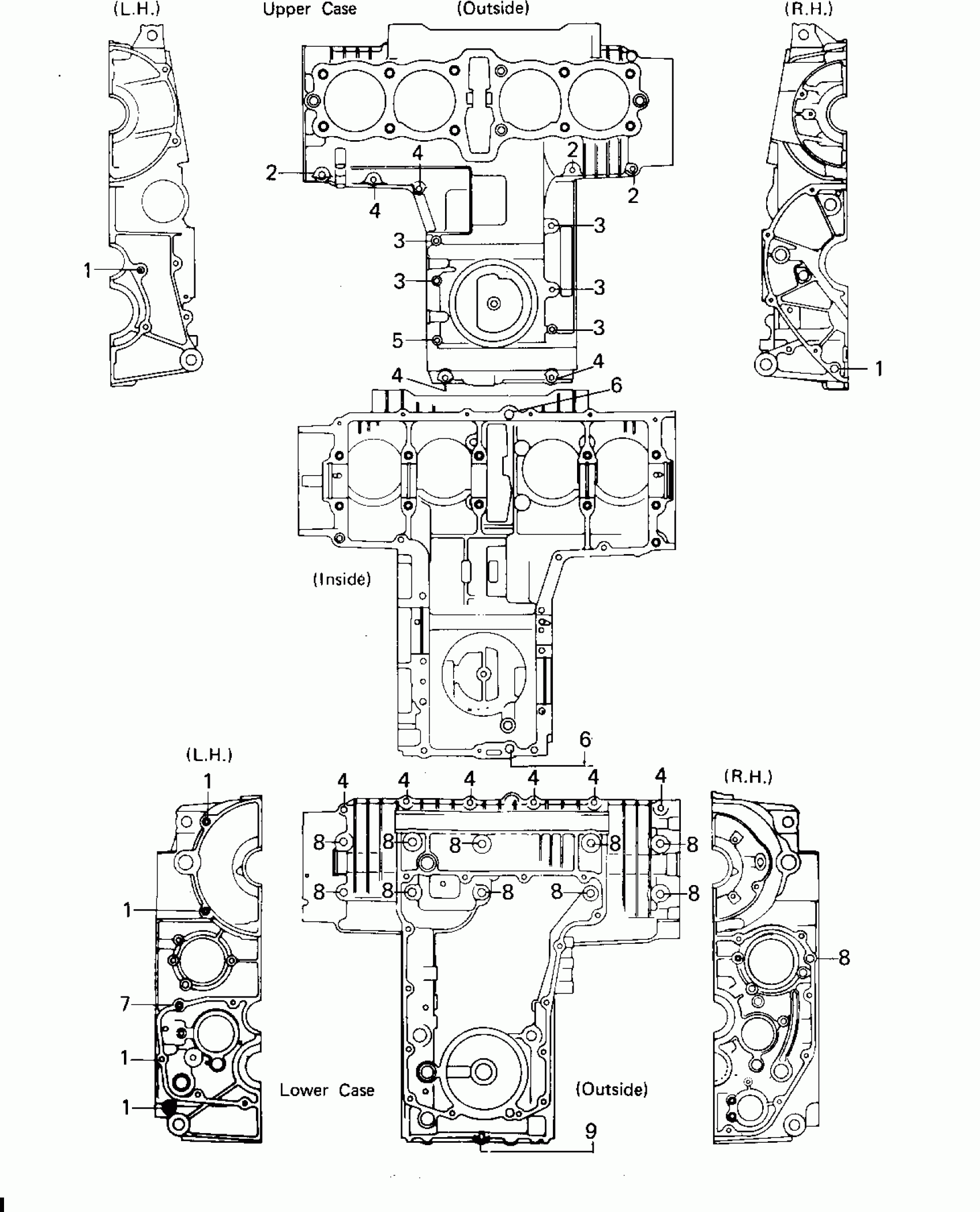

Kawasaki KZ650-B3 CRANKCASE BOLT & STUD PATTERN Diagram

#

Description
Price

1

PIN,DOWEL,6.3X8X14

92042-007

$5.70

2

BOLT-FLANGED,6X50

130G0650

Unavailable

3

BOLT,HEX HEAD,6X99

92003-111

$3.17

4

BOLT,6X43

92002-1881

$7.24

4

BOLT,6X43

92002-1881

$7.24

5

BOLT,HEX HEAD,6X116

92003-113

Unavailable

6

PIN,DOWEL,10X14

92043-1037

$1.49

7

PIN-DOWEL,6X14

551A0614

$3.92

8

BOLT-FLANGED,8X95

130P0895

Unavailable

9

BOLT,6X105

92003-194

Unavailable
