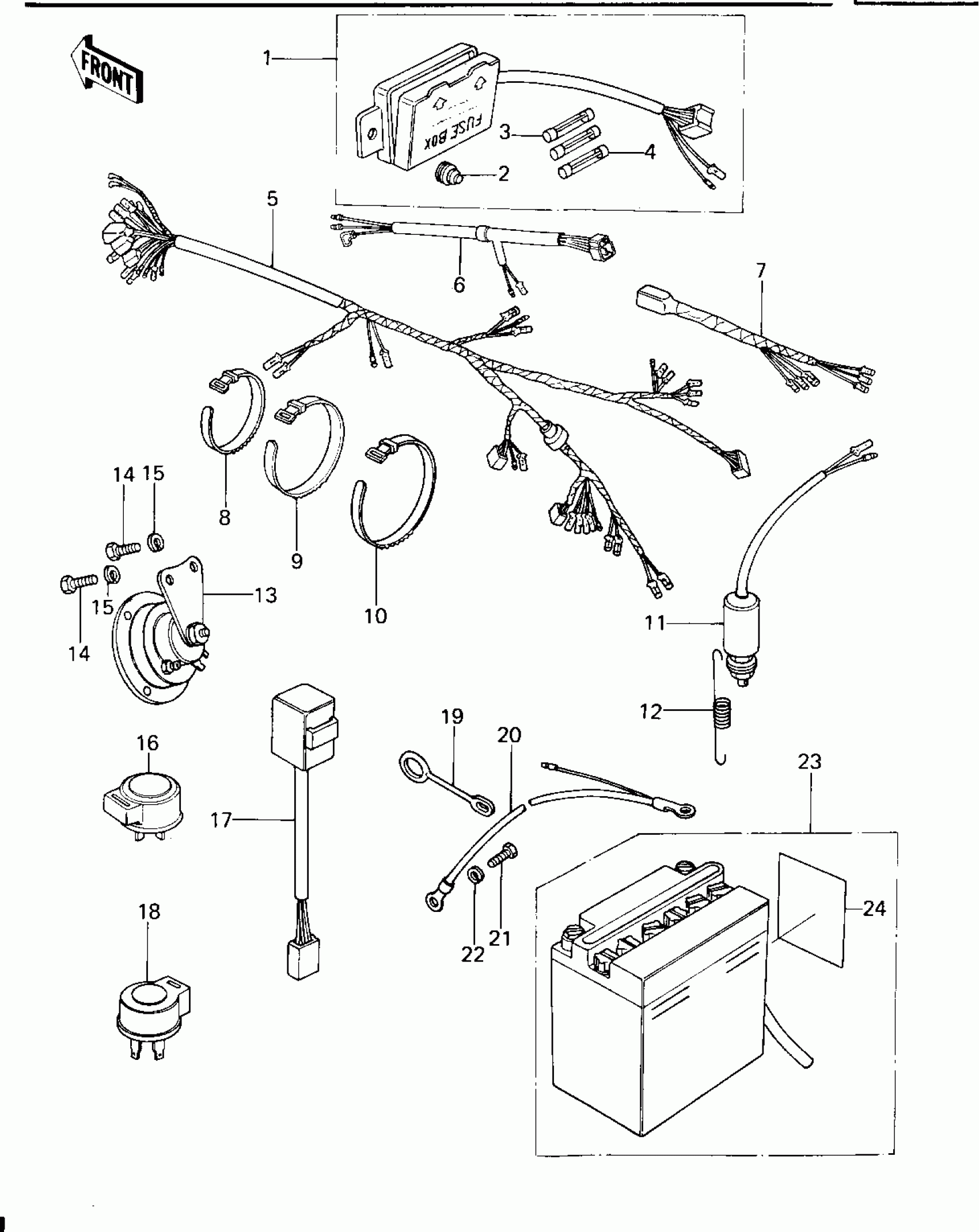

Kawasaki KZ650-B3 CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

FUSE-ASSY

26004-035

$75.54

1

FUSE ASSY

26004-1002

$100.39

2

DAMPER,FUSE

92075-279

$6.45

3

FUSE,20A,L=25

26006-005

$5.06

4

FUSE,10A,L=25

26006-003

$4.72

5

WIRING HARNESS,MAIN

26001-143

$359.74

5

HARNESS,MAIN

26001-1025

Unavailable

5

HARNESS,MAIN

26001-1131

Unavailable

6

HARNESS,CENTER

26001-1022

$27.36

7

WIRING HARNESS,REAR

26002-063

Unavailable

8

BAND,L=123

92072-030

$5.00

8

BAND,L=123

92072-030

$5.00

9

BAND,L=149

92072-031

$5.00

10

BAND,L=186

92072-056

$5.00

11

SWITCH-BRAKE LAMP

27010-017

Unavailable

12

SPRING,BRAKE LAMP SWITCH

27011-011

$8.51

12

SPRING BRAKE LAMP SW

27011-009

Unavailable

13

HORN

27003-076

Unavailable

14

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

RELAY,TURN SIGNAL

27002-016

Unavailable

17

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable

18

RELAY-ASSY,TURN SIGNAL

27002-011

$100.61

19

CLAMP,OVER FLOW PIPE

92037-134

$11.50

20

WIRE,BATTERY GROUND

26010-049

Unavailable

21

BOLT,6X10

92001-137

$6.52

22

WASHER SPRING 6MM

461F0600

Unavailable

23

YUA BAT YB10L-A2

26012-041

$54.47

23

BATTERY 12V11AH W/LA

26012-1010

Unavailable

24

LABEL-WARNING,BATTERY

56040-1036

Unavailable
