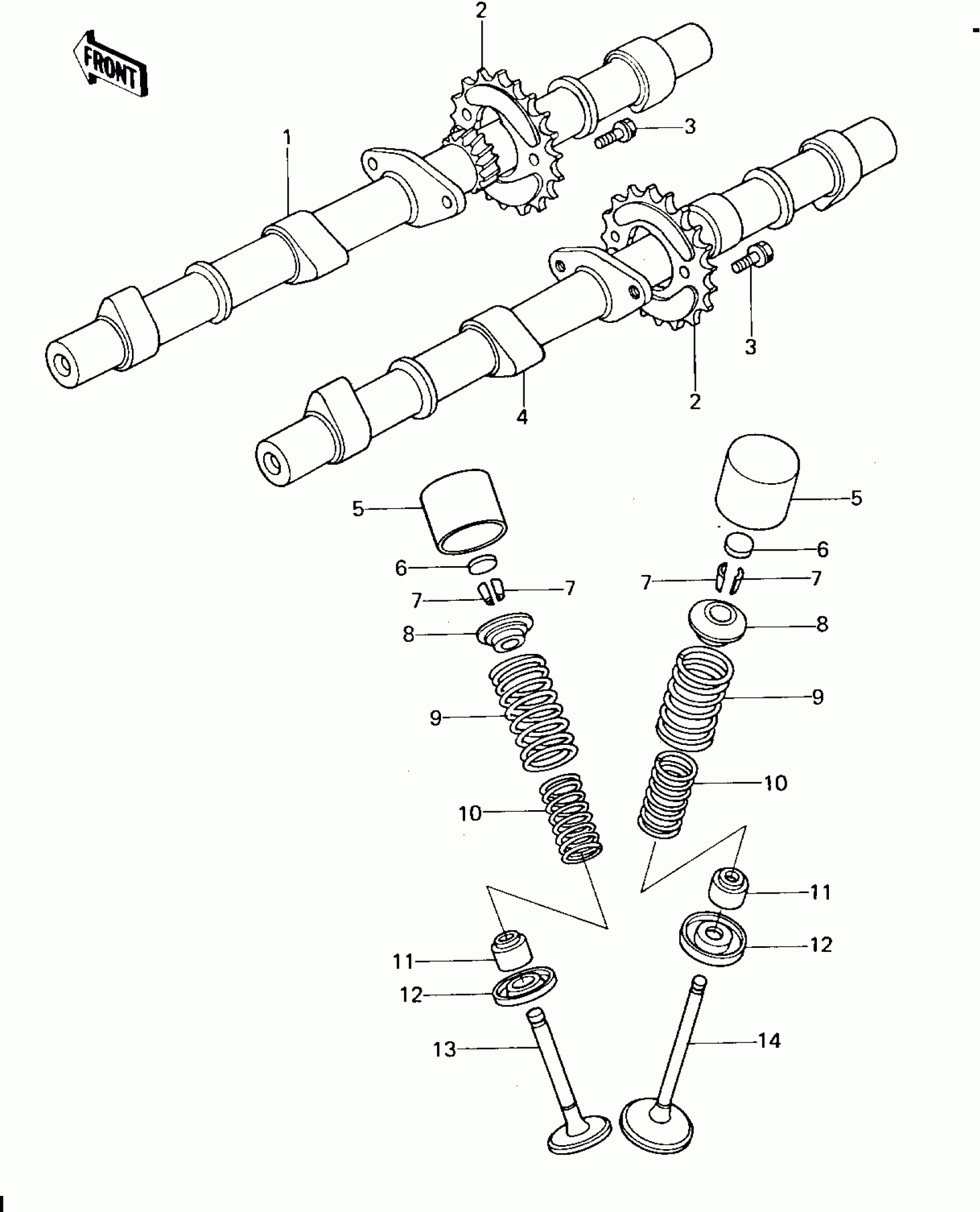

Kawasaki KZ650-B3 CAMSHAFTS/VALVES Diagram

#

Description
Price

1

CAM SHAFT,EXHAUST

12044-013

Unavailable

2

SPROCKET,CAM

12046-004

Unavailable

3

BOLT,FLANGED,6X11

92003-208

$3.43

4

CAM SHAFT,INLET

12044-012

Unavailable

5

TAPPET

12032-1001

Unavailable

5

TAPPET

12032-1001

Unavailable

6

SHIM,T=2.00

92025-1090

$10.44

6

SHIM,T=2.05

92025-1091

$8.61

6

SHIM,T=2.10

92025-1092

$8.61

6

SHIM,T=2.15

92025-1093

$10.44

6

SHIM,T=2.20

92025-1094

$10.44

6

SHIM,T=2.25

92025-1095

$10.44

6

SHIM,T=2.30

92025-1096

$10.44

6

SHIM,T=2.35

92025-1097

$10.44

6

SHIM,T=2.40

92025-1098

$10.44

6

SHIM,T=2.45

92025-1099

$8.61

6

SHIM,T=2.50

92025-1100

$10.44

6

SHIM,T=2.55

92025-1101

$10.44

6

SHIM,T=2.60

92025-1102

$8.17

6

SHIM,T=2.65

92025-1103

$10.44

6

SHIM,T=2.70

92025-1104

$8.61

6

SHIM,T=2.75

92025-1105

$10.44

6

SHIM,T=2.80

92025-1106

$10.44

6

SHIM,T=2.85

92025-1107

$10.44

6

SHIM,T=2.90

92025-1108

$10.44

6

SHIM,T=2.95

92025-1109

$10.44

6

SHIM,T=3.00

92025-1110

$10.44

6

SHIM,T=3.05

92025-1111

$8.61

6

SHIM,T=3.10

92025-1112

$10.44

6

SHIM,T=3.15

92025-1113

$8.61

6

SHIM,T=3.20

92025-1114

$8.61

7

COLLET,RETAINER

12011-004

$4.34

8

RETAINER-VALVE SPRING

12009-008

$11.86

9

SPRING-ENGINE VALVE,OUTER

12007-012

$23.51

10

SPRING-ENGINE VALVE,INNER

12007-011

Unavailable

11

SEAL-OIL,RV37129.5

92049-016

$14.42

12

SEAT-SPRING,VALVE

16007-1024

$5.15

13

VALVE,EXHAUST

12005-008

$120.37

14

VALVE,INTAKE

12004-1011

Unavailable
