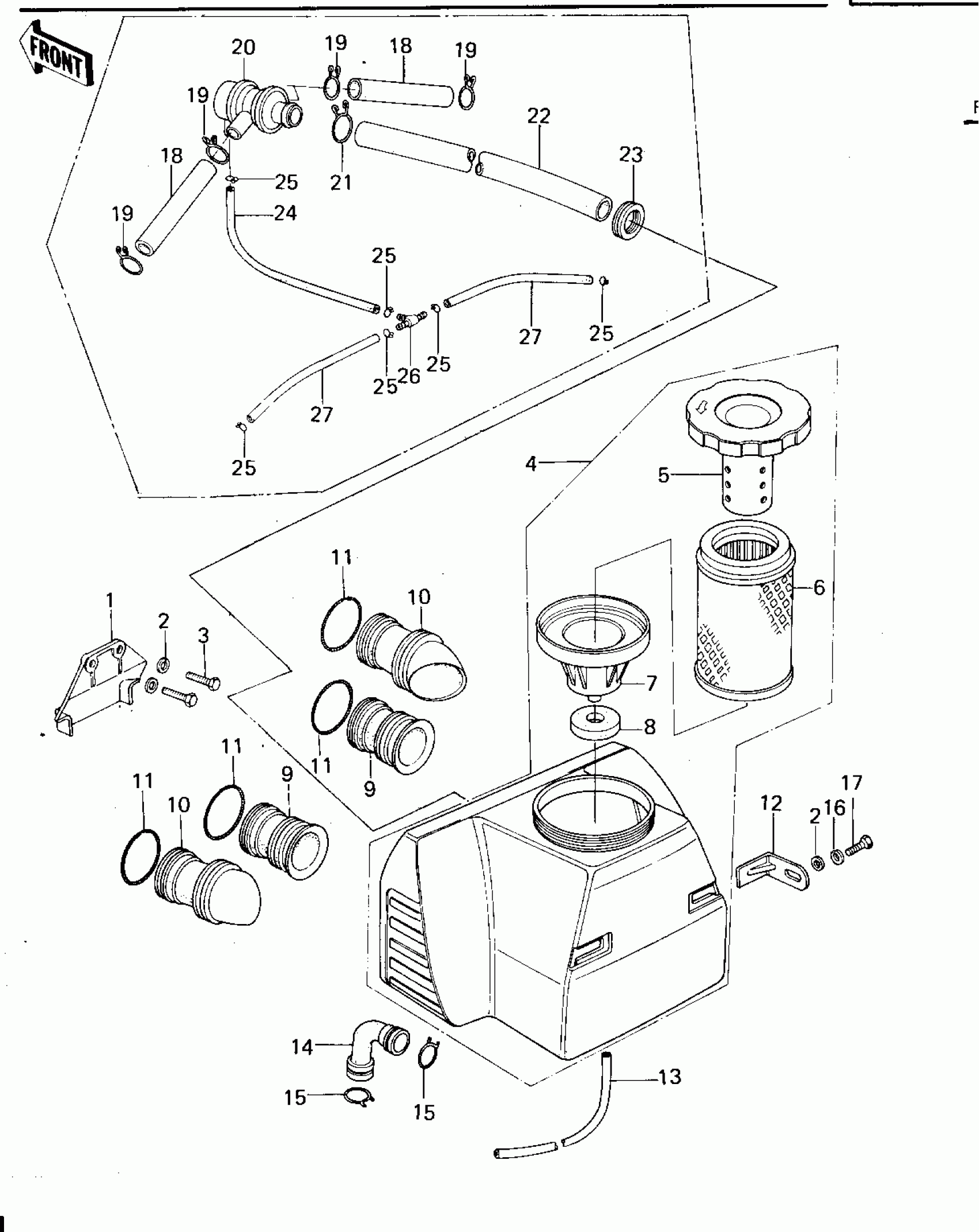

Kawasaki KZ650-B3 AIR CLEANER Diagram

#

Description
Price

1

BAFFLE PLT,AIR CLEANE

11019-003

Unavailable

2

WASHER PLAIN 6MM

411B0600

Unavailable

3

BOLT-UPSET

112G0618

Unavailable

4

AIR CLEANER ASSY

11010-1002

Unavailable

4

FILTER-ASSY

11010-1079

Unavailable

4

FILTER-ASSY-AIR

11010-1078

Unavailable

5

CAP,AIR CLEANER

11012-069

Unavailable

6

ELEMENT,AIR CLNR

11013-1006

$32.50

6

ELEMENT,AIR CLNR

11013-1006

$32.50

7

HOLDER,INLET PIPE

11033-006

Unavailable

8

GASKET,HOLDER

11039-003

Unavailable

9

INLET DUCT,#2,3

11015-057

$24.19

10

INLET PIPE,#1.4

11015-063

$37.15

11

SPRING COIL

92081-047

$11.29

12

BRACKET,AIR CLEANER

32070-038

$5.86

13

TUBE,VINYL,6X200

700Q06200

Unavailable

14

TUBE,BREATHER

92059-137

Unavailable

15

CLAMP BREATHER PIPE

92037-028

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

BOLT-UPSET,6X12

112G0612

$1.49

18

TUBE,14X20X100

92059-1042

$3.05

19

CLAMP,TUBE

92037-213

$4.31

20

VALVE,AIR SWITCH

16126-1005

$191.61

21

CLAMP,TUBE

92037-1076

$7.22

22

TUBE,19X25X415

92059-1041

$12.97

23

GROMMET,AIR FILTER

92071-1013

$6.46

24

TUBE,4X9X290

92059-1043

$7.87

25

CLAMP,TUBE

92037-072

$7.22

26

FITTING,TUBE,T-TYPE

92005-1017

$10.29

27

TUBE,VACUUM,LONG

92059-1162

$14.74
