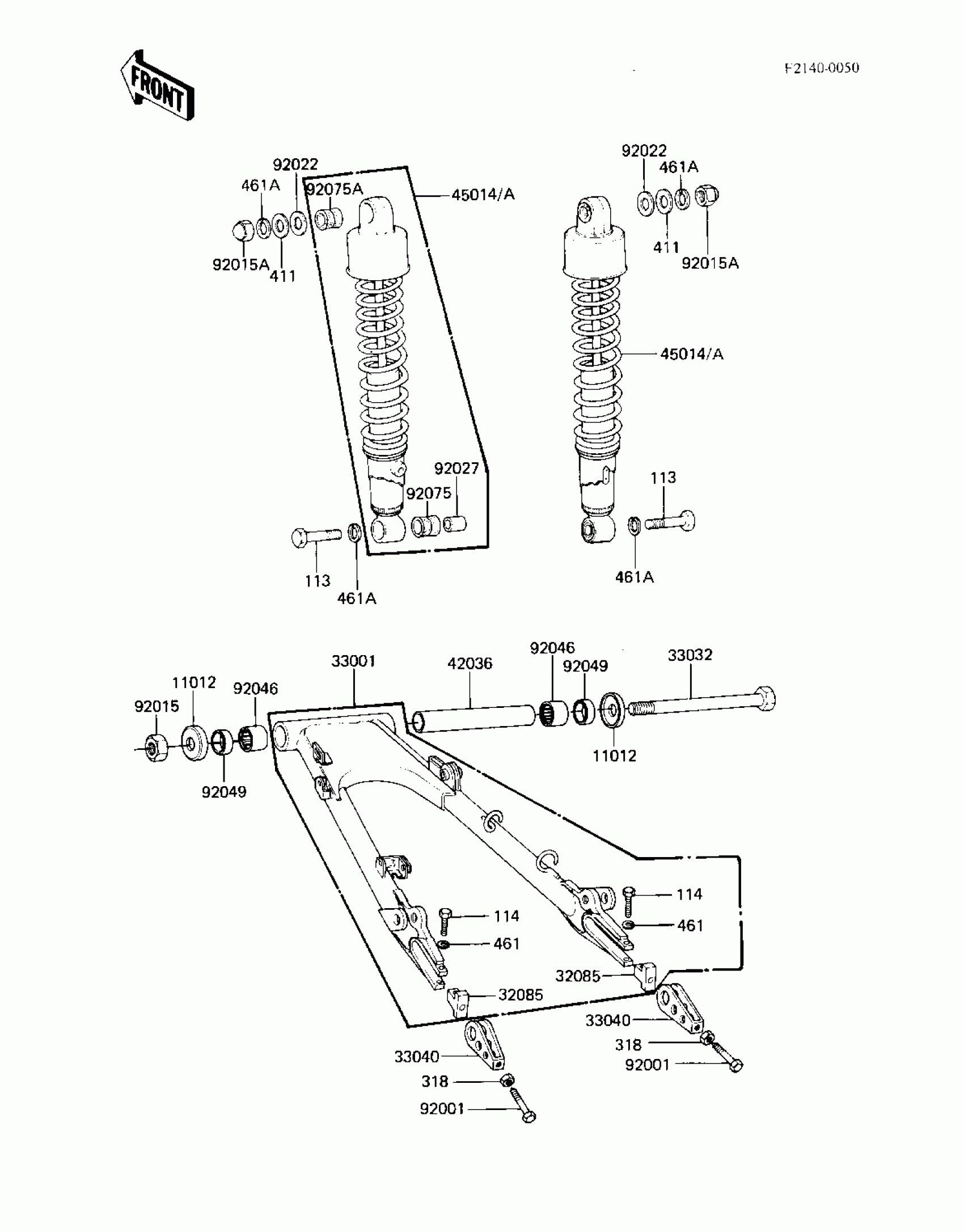

Kawasaki KZ550-A4 SWING ARM/SHOCK ABSORBERS ('82-'83 A3/A4 Diagram

Description

Price

11012

CAP,SWING ARM

11012-1029

$20.53

32085

STOPPER,CHAIN ADJUST

33044-002

Unavailable

33001

ARM-COMP-SWING

33001-1098

$303.37

33032

SHAFT,SWING ARM

33032-1004

$103.17

33040

ADJUSTER,CHAIN

33040-056

Unavailable

42036

SLEEVE,SWING ARM

42036-1018

Unavailable

45014A

SHOCKABSORBER,RR

45014-1213

$316.89

92001

BOLT,8X50

92001-1399

$7.52

92015

NUT-LOCK,14MM

92019-011

Unavailable

92015A

NUT,CAP,10MM

92020-003

$5.16

92022

WASHER,10X22X3.2

92022-176

$4.25

92027

COLLAR,SHOCKABSORBER

45016-008

$9.58

92046

BEARING-NEEDLE,HK2216

92046-1115

Unavailable

92049

SEAL-OIL,MHA22284

92049-1059

$9.11

92075

DAMPER,SHOCKABSORBER

45017-012

$14.14

92075A

DAMPER,SHOCKABSORBER

45017-015

Unavailable

113

BOLT HEX HEAD 10X35

113N1035

Unavailable

114

BOLT-SMALL-UPSET

115G0835

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.63

411

WASHER-PLAIN,10MM

411B1000

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable
