Partiron

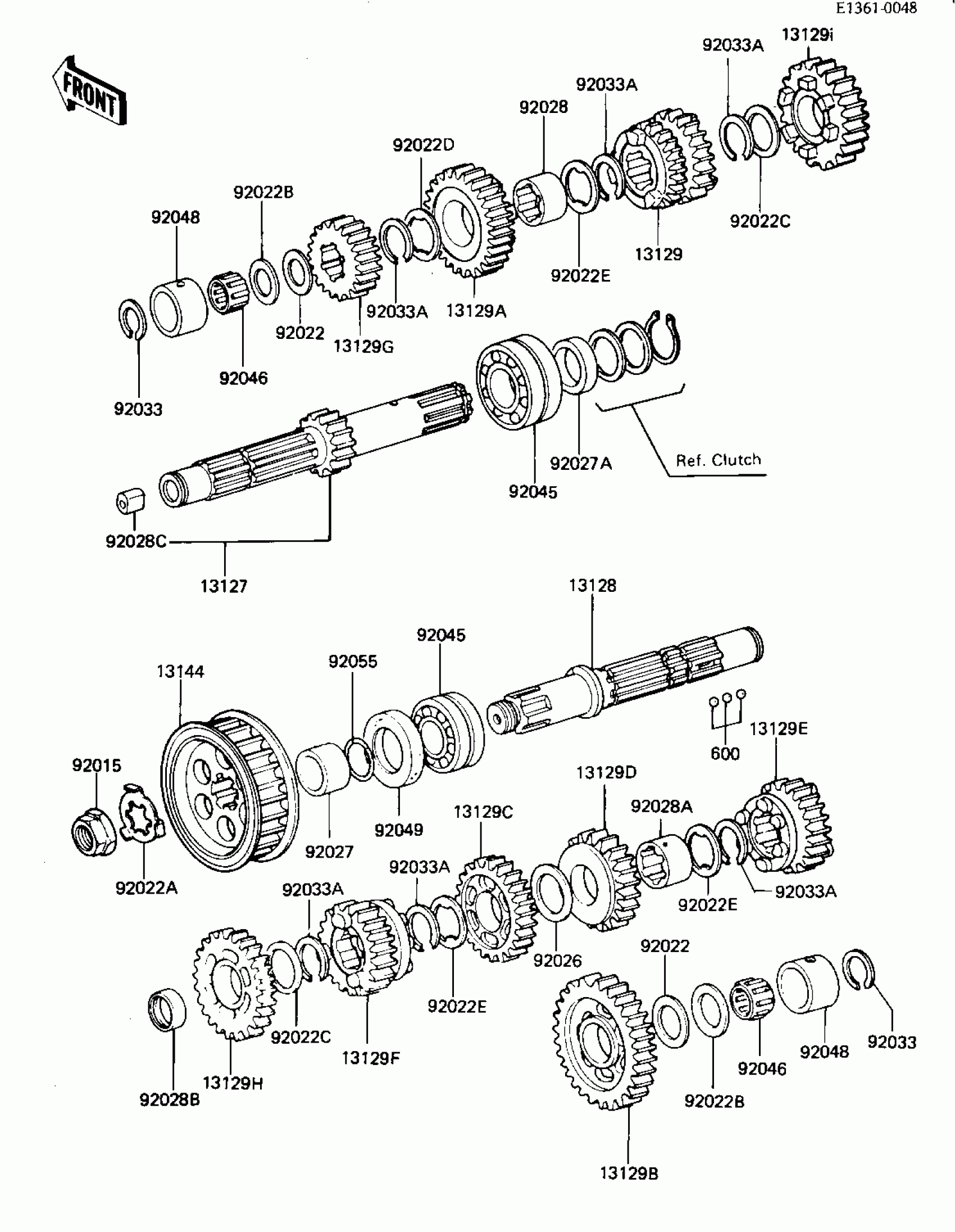

Kawasaki KZ440-G1 TRANSMISSION Diagram

#

Description
Price

13127

SHAFT,DRIVE,13T

13127-1004

Unavailable

13128

SHAFT,OUTPUT

13128-1015

Unavailable

13129

3RD-4TH GEAR,DRV SHFT

13129-1054

Unavailable

13129A

TOP GEAR,DRV SHAFT

13129-1055

Unavailable

13129B

LOW GEAR,OUTPUT SHAFT

13129-1056

Unavailable

13129C

3RD GEAR,OUTPUT SHAFT

13129-1058

Unavailable

13129D

4TH GEAR,OUTPUT SHAFT

13129-1059

Unavailable

13129E

5TH GEAR,OUTPUT SHAFT

13129-1060

Unavailable

13129F

TOP GEAR,OUTPUT SHAFT

13129-1061

Unavailable

13129G

2ND GEAR,DRV SHAFT

13129-1062

Unavailable

13129H

2ND GEAR,OUTPUT,28T

13129-1172

Unavailable

13129I

GEAR,INPUT5TH,23T

13129-1277

Unavailable

13144

SPROCKET-OUTPUT,24T

13144-1065

Unavailable

92015

NUT,20MM

92015-1254

$11.31

92022

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92022A

WASHER,CLAW

92022-1170

Unavailable

92022B

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

92022C

WASHER,25.3X30X0.5

92022-159

$8.37

92022D

WASHER,TOOTHED,25.5X32X1

92024-033

$8.03

92022E

WASHER,TOOTHED,22.5X31X0.5

92024-038

$4.67

92026

SPACER,30X38X1.0

92026-079

$8.63

92027

COLLAR,ENG SPROCKET

92027-288

$40.09

92027A

COLLAR

92027-289

Unavailable

92028

BUSHING,OUTPUT 3RD GR

92028-1002

$45.12

92028A

BUSHING,OUTPUT GEAR

92028-1268

$29.44

92028B

BUSHING,2ND GEAR

92028-1177

$20.54

92028C

BUSHING,DRIVE SHAFT

92028-155

Unavailable

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,24MM

92033-026

$6.70

92045

BEARING,B,5205ANX4PX

92045-031

$68.94

92046

BEARING-NEEDLE,20R2513P

92046-044

$21.78

92048

RACE,OUT & DRV SHAFT

92048-1001

$14.64

92049

SEAL-OIL,SC325210

92050-024

$6.23

92055

RING-O

92055-035

$3.81

600

BALL-STEEL,5/32

600A0500

$0.68
