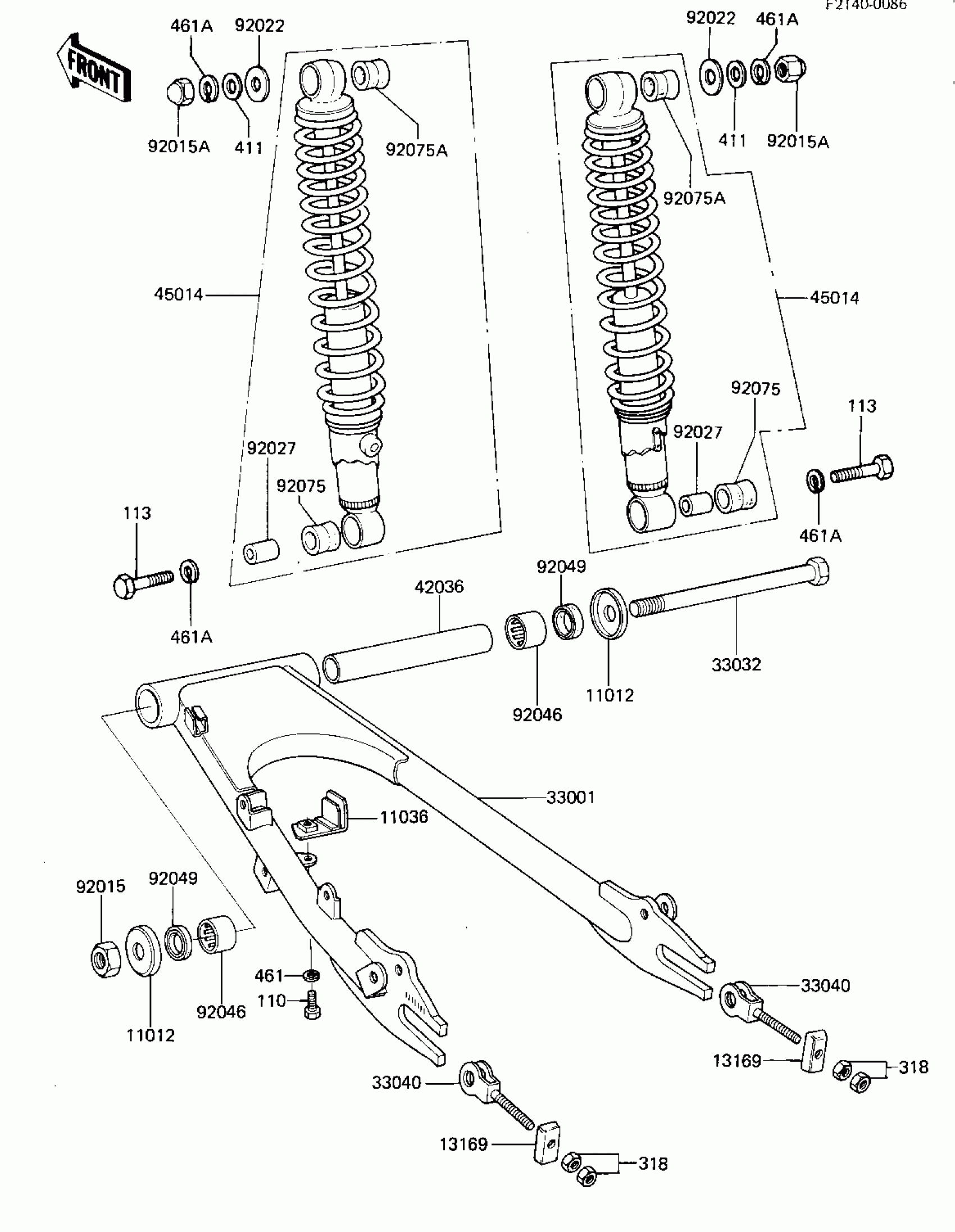

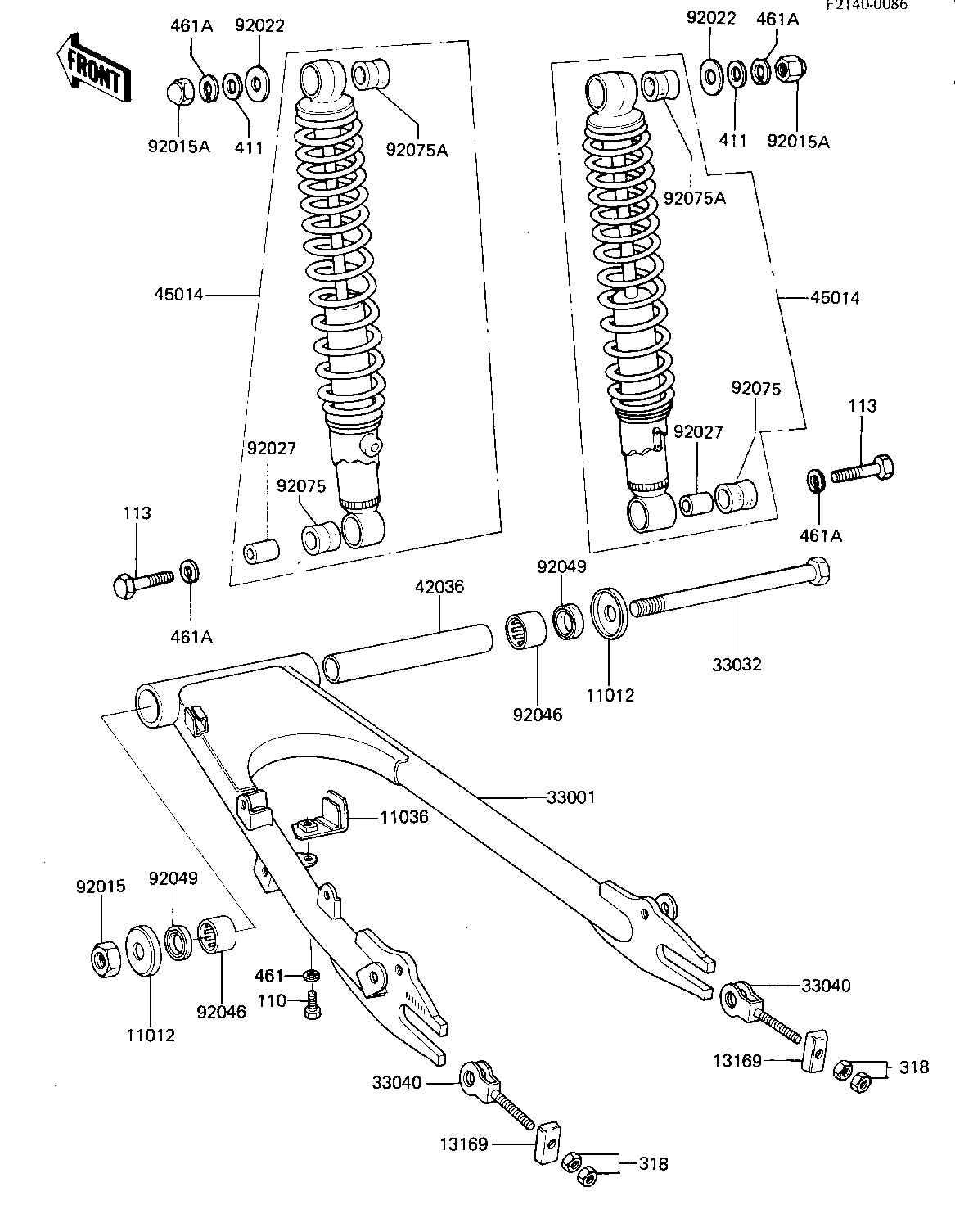

Kawasaki KZ440-G1 SWING ARM/SHOCK ABSORBERS Diagram

Description

Price

11012

CAP,SWING ARM

11012-1029

$20.53

11036

BRACKET,BELT CASE

11036-1486

Unavailable

13169

PLATE,CHAIN ADJUSTER

33041-002

Unavailable

33001

ARM-COMP-SWING

33001-1142

$166.82

33032

SHAFT,SWING ARM PIVOT

33032-1011

$47.18

33040

ADJUSTER-CHAIN

33040-1016

$20.71

42036

SLEEVE,SWING ARM

42036-1017

Unavailable

45014

SHOCKABSORBER,RR,BLACK

45014-1218

$344.67

92015

NUT-LOCK,14MM

92019-011

Unavailable

92015A

NUT,CAP,10MM

92020-003

$4.88

92022

WASHER,10X22X3.2

92022-176

$4.25

92027

COLLAR,SHOCKABSORBER

45016-008

$9.58

92046

BEARING-NEEDLE,HK2216

92046-1115

Unavailable

92049

SEAL-OIL,MHA22284

92049-1059

$8.74

92075

DAMPER,SHOCKABSORBER

45017-012

$14.14

92075A

DAMPER,SHOCKABSORBER

45017-015

Unavailable

110

BOLT-UPSET 6X14

112B0614

Unavailable

113

BOLT HEX HEAD 10X35

113N1035

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

411

WASHER-PLAIN,10MM

411B1000

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable
