1982 Kawasaki KZ440-G1 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1982 Kawasaki KZ440-G1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

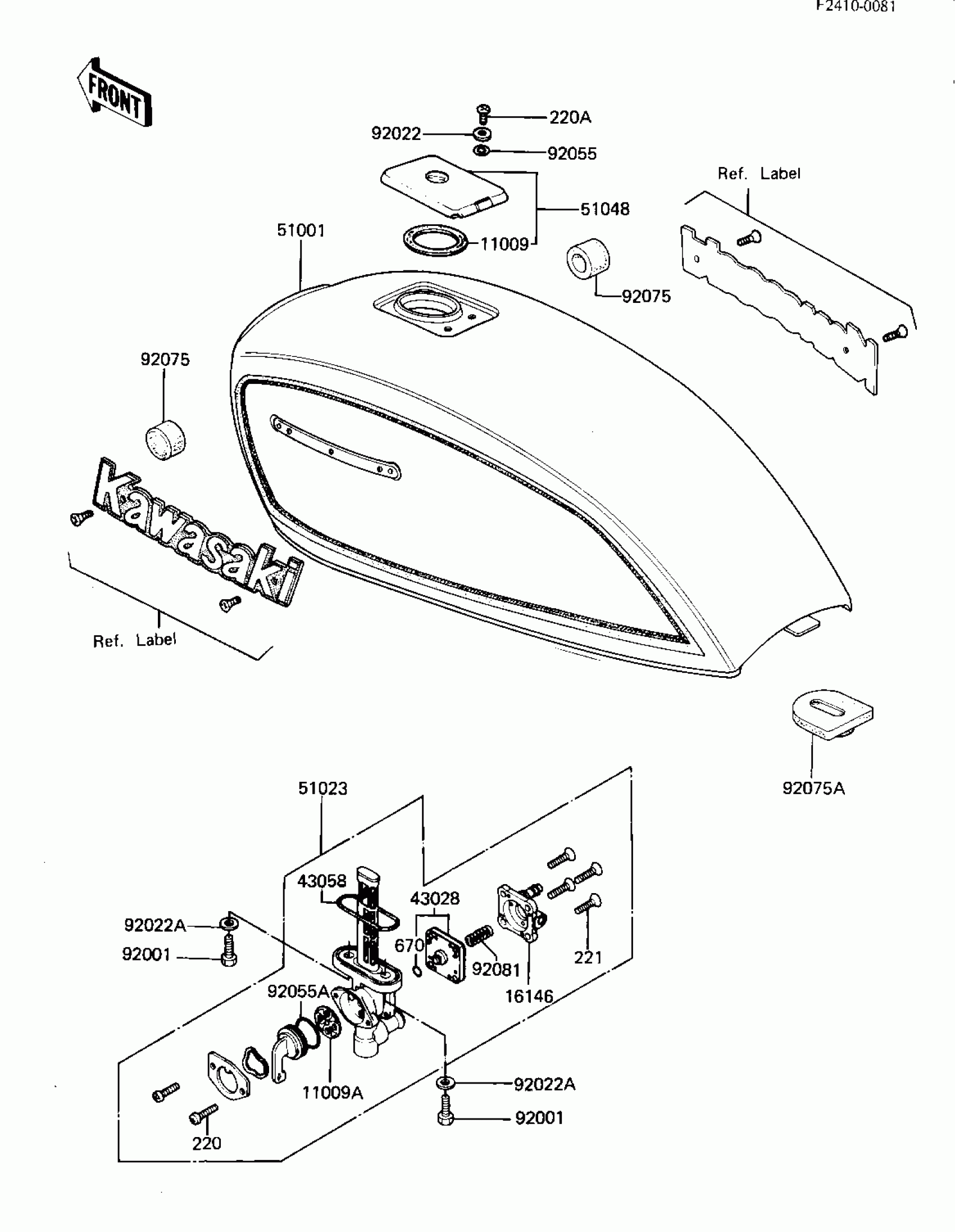

1982 Kawasaki KZ440-G1 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FUEL TANK CAP

11009-1051

1
Out of stock

11009A

GASKET,TAP VALVE

11009-1188

1
Out of stock

16146

COVER ASSY,FUEL TAP

16146-1009

1
Out of stock

43028

DIAPHRAGM,TAP

43028-1021

1
Out of stock

43058

RING,TAP FLANGED

51039-003

1
Out of stock

51001

TANK-FUEL,M.U.BLUE

51001-1088-F3

1
Out of stock

51023

TAP ASSY,FUEL

51023-1030

1
Out of stock

51048

CAP ASSY TANK

51048-1018

1
Out of stock

92001

BOLT,6X20

92001-1091

1
Out of stock

92022

WASHER,5.3X10X0.8

92022-1038

1
Out of stock

92022A

WASHER-PLAIN

92022-183

1
Out of stock

92055

RING-O

92055-1023

1
Out of stock

92055A

RING-O,TAP LEVER

92055-1085

1
Out of stock

92075

DAMPER,FUEL TANK

92075-101

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-295

1
Out of stock

92081

SPRING,TAP DIAPHRAGM

92081-1240

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

220A

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

670

O RING,4MM

670B1504

1
Out of stock
