1982 Kawasaki KZ440-G1 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1982 Kawasaki KZ440-G1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

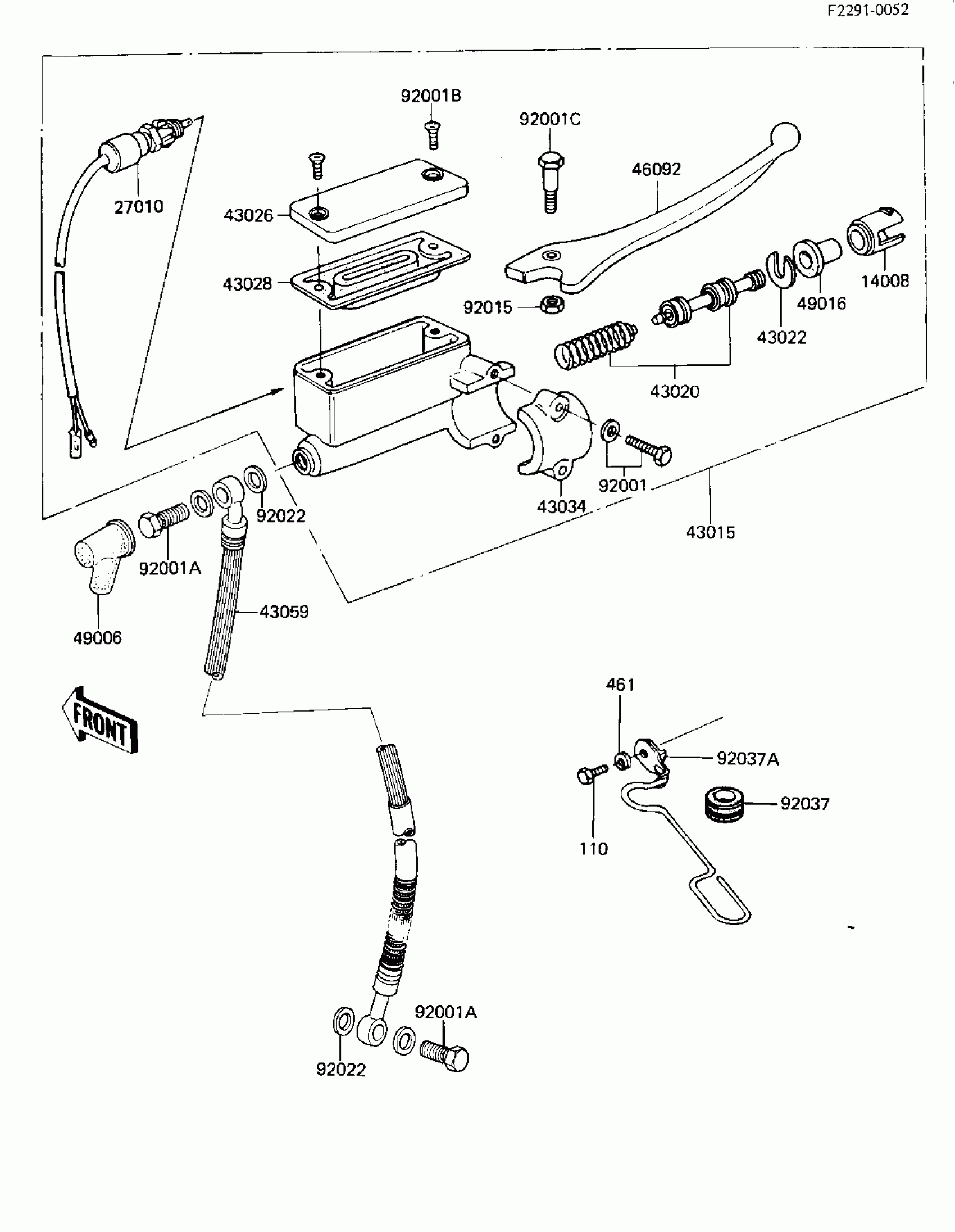

1982 Kawasaki KZ440-G1 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER,PISTON

14008-1007

1
Out of stock

27010

SWITCH,BRAKE

27010-1028

1
Out of stock

43015

MASTER CYLINDER

43015-1034

1

$330.94

In stock

43020

PISTON-COMP-BRAKE

43020-1026

1

$96.87

In stock

43022

STOPPER-BRAKE,PISTON

43022-1001

1
Out of stock

43026

CAP-BRAKE

43026-1006

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1008

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

43059

HOSE-BRAKE,FR,L=940

43059-1135

1

$63.05

In stock

46092

LEVER-GRIP,FRONT BRAK

46092-1038

1
Out of stock

49006

BOOT,DUST

49006-1041

1

$9.11

In stock

49016

COVER-SEAL,BRAKE PISTON

49016-1010

1
Out of stock

92001

BOLT,6X25,W/WASHER

43033-003

1
Out of stock

92001A

BOLT,OIL,L=23

92002-1888

1
Out of stock

92001B

1

$4.84

In stock

92001C

BOLT,FR BRAKE LEVER

92001-1056

1
Out of stock

92015

NUT 6MM

312B0600

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock

92037A

CLAMP,CABLE

92037-1116

1
Out of stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
